Description

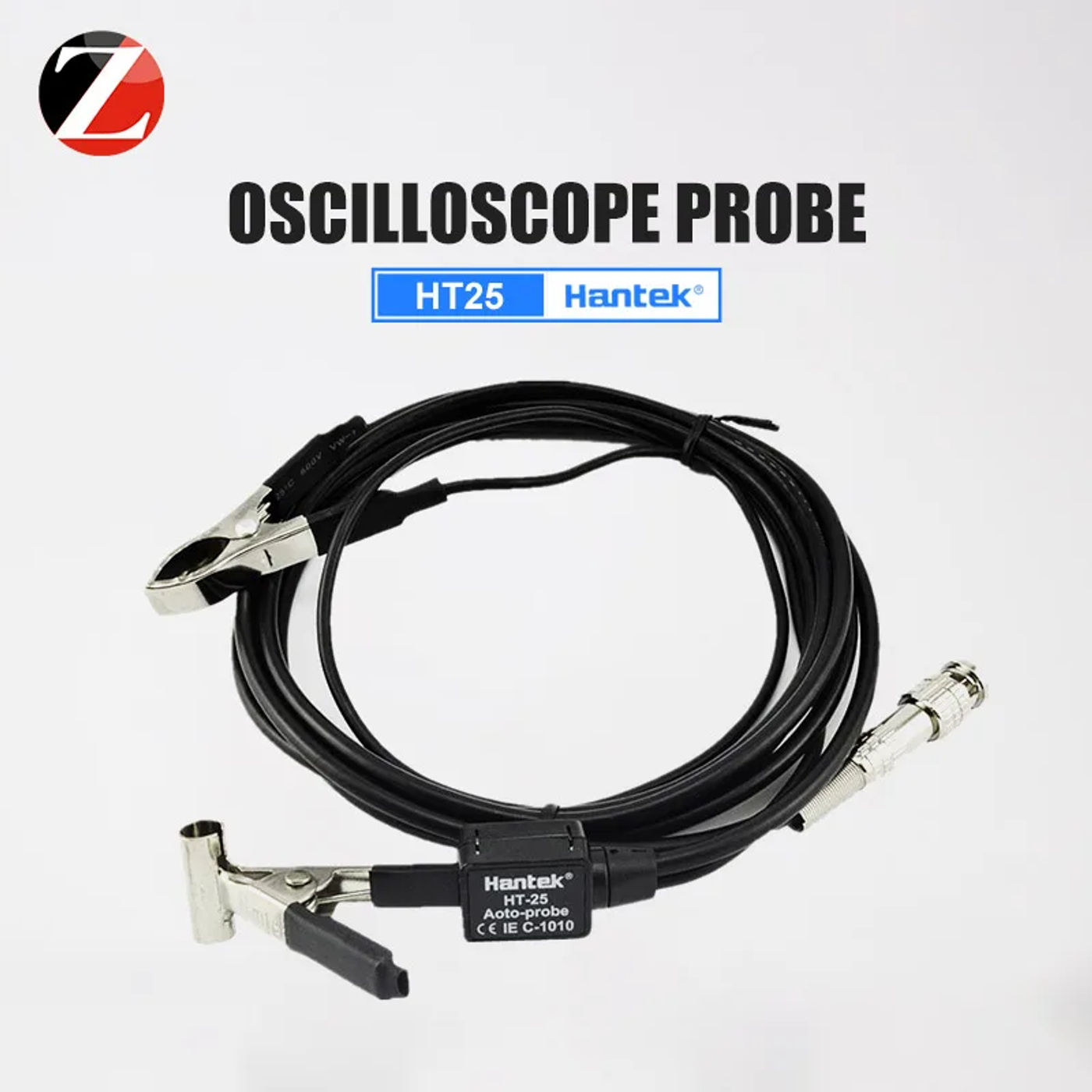

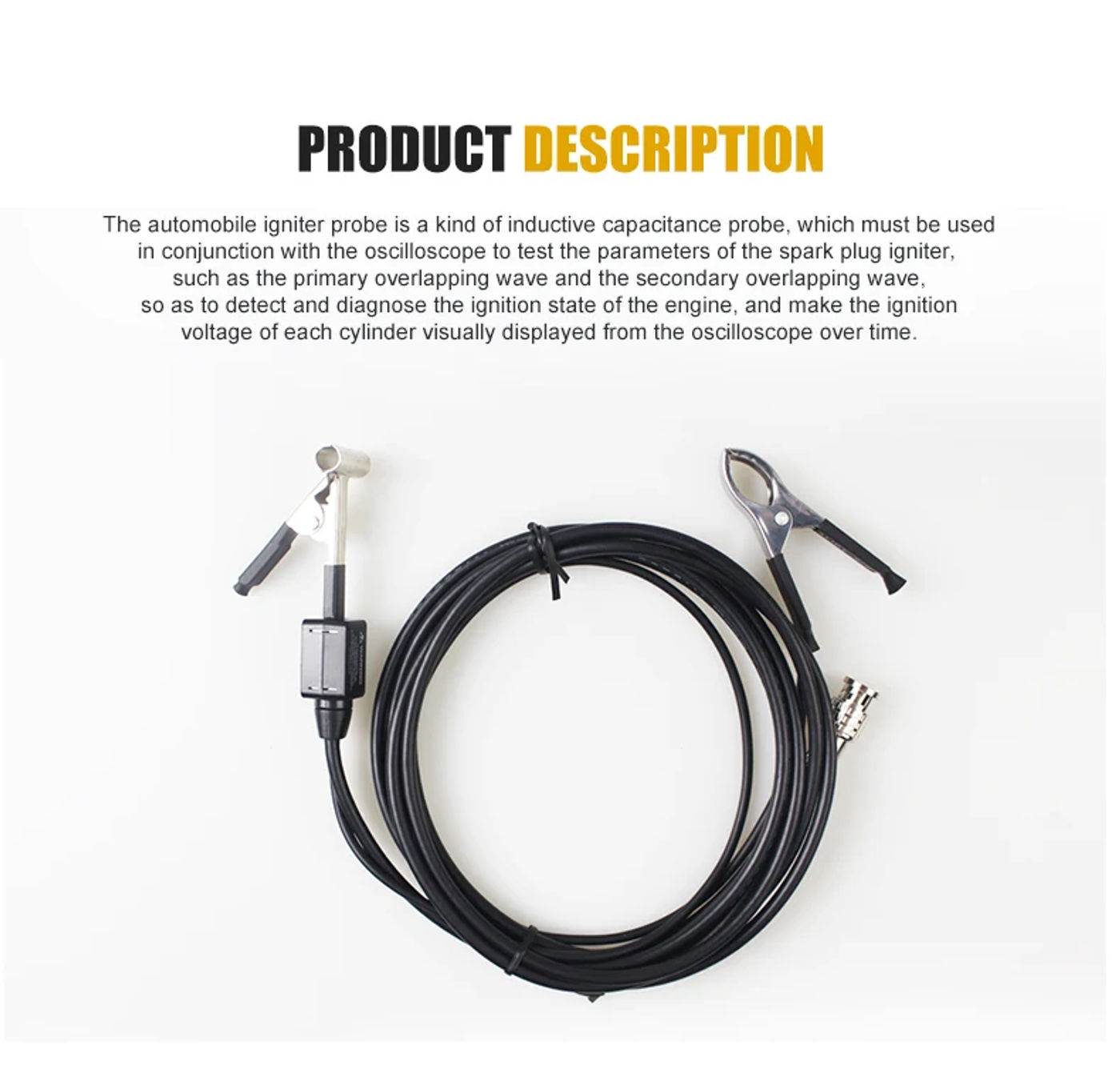

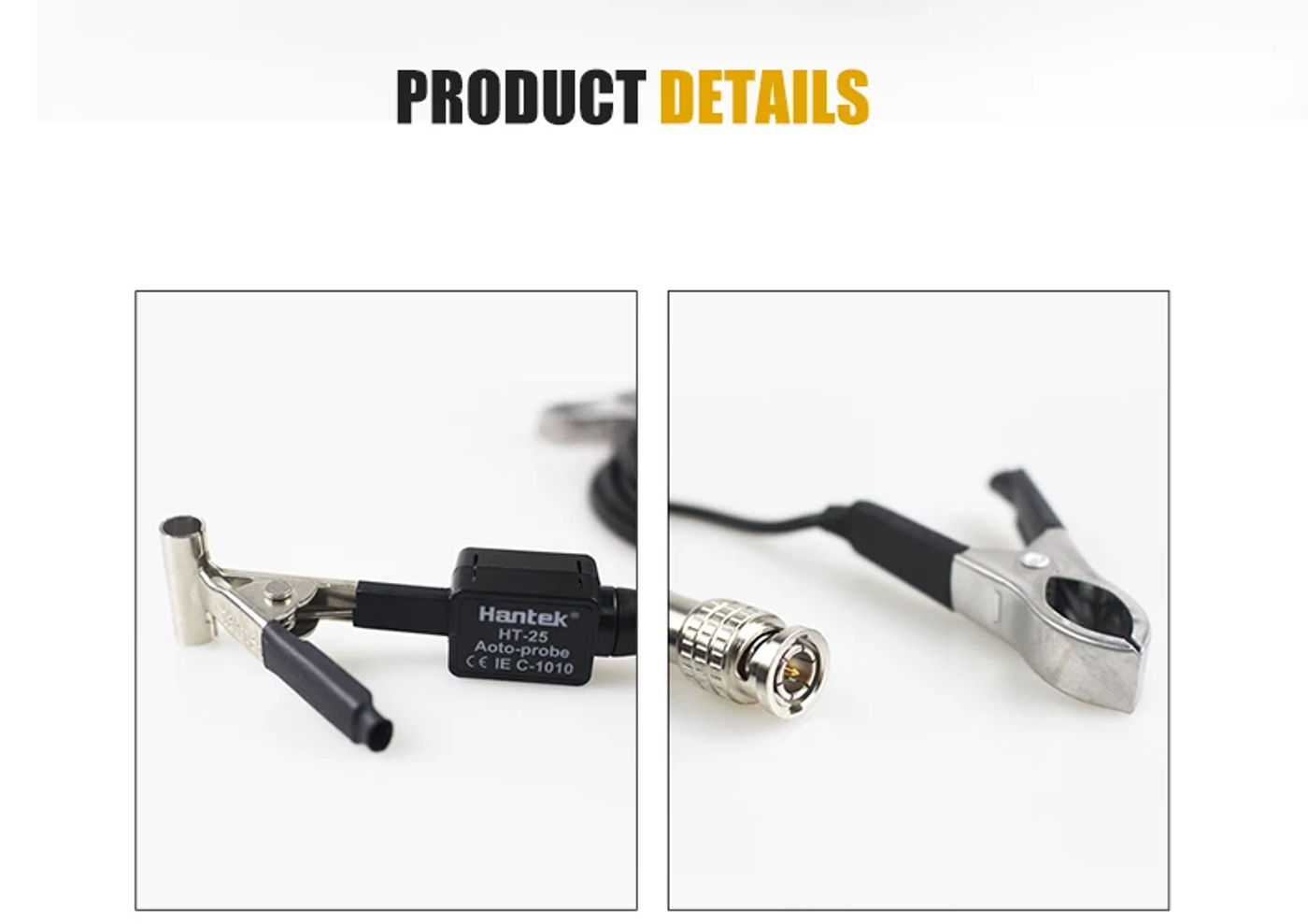

• Hantek Automotive Oscilloscope Probe HT25 2 meters Ignition Capacitive decay of as much as 10000:1 Hantek HT25 Oscilloscope Auto Ignition Probe (HT25) Description a type of inductive capacitance sensor, it must event with an oscilloscope Close to use, can be used to test a spark ignition secondary overlapping wave, overlapping wave parameters, thus done the detection, the diagnosis engine ignition position, make every single cylinder ignition voltage replacing with time instantly from the oscilloscope demonstrate The loot line has 3 end, a joint meet oscilloscope for BNC use, a for use, a clip grounding to pick high-voltage gleaned clip with Loot clincher over is a attenuator, used for loot high-pressure attenuation for low pressure, thus keeping oscilloscope not electrify impact Features: When used please note: (1)test clips shall indirectly clip in spark plug, must be stuck in the connection of the spark plugs of insulation wire, to be able to prevent the breakdown and causing a surprise (2)to distance different high-voltage at the very least 2 inches apart, lest produce interference (3)HT25 main line length 2 meters, the decay of up to 10,000:1 Package Included: 1 HT25 Auto ignition probe

•
•
•
•
•
