Description

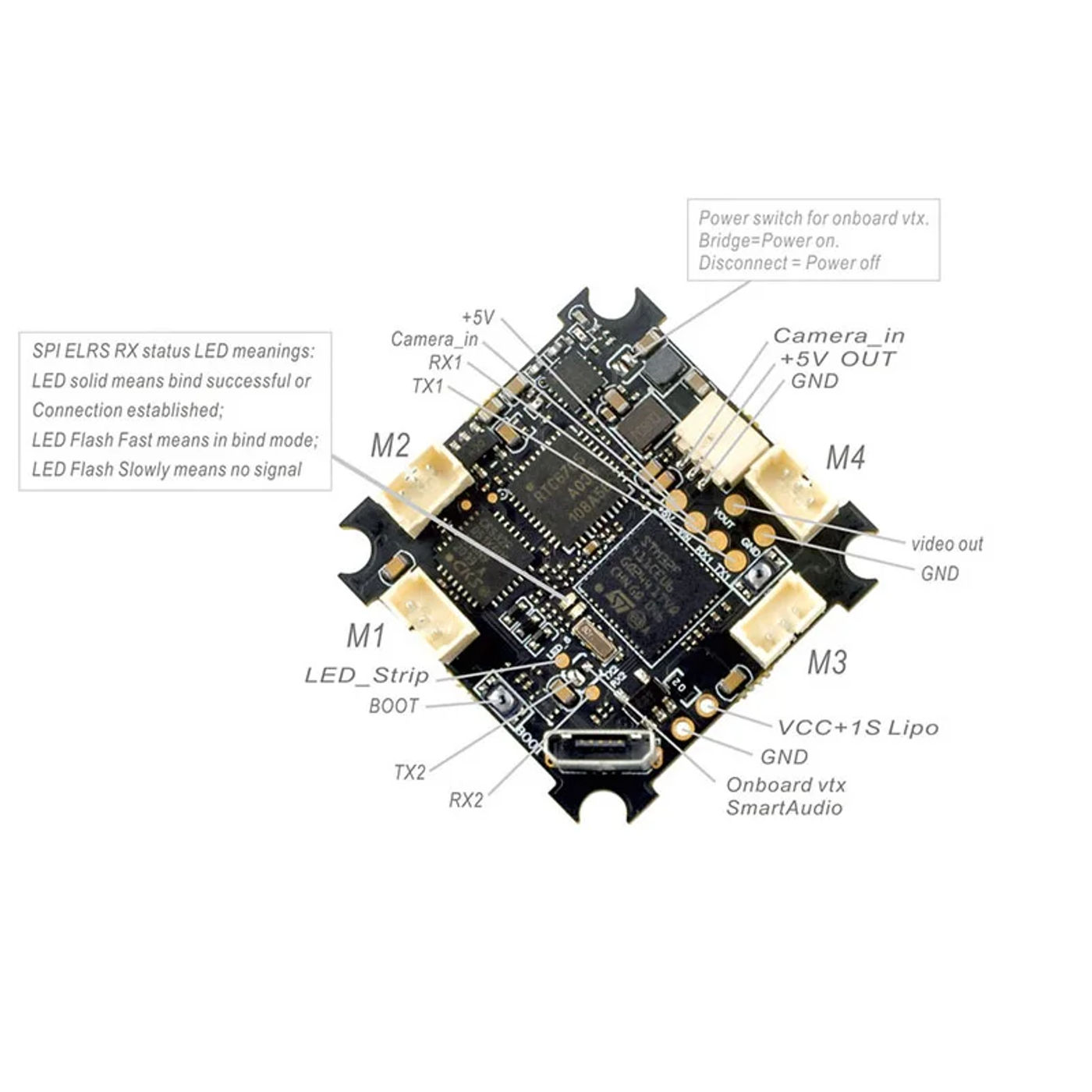

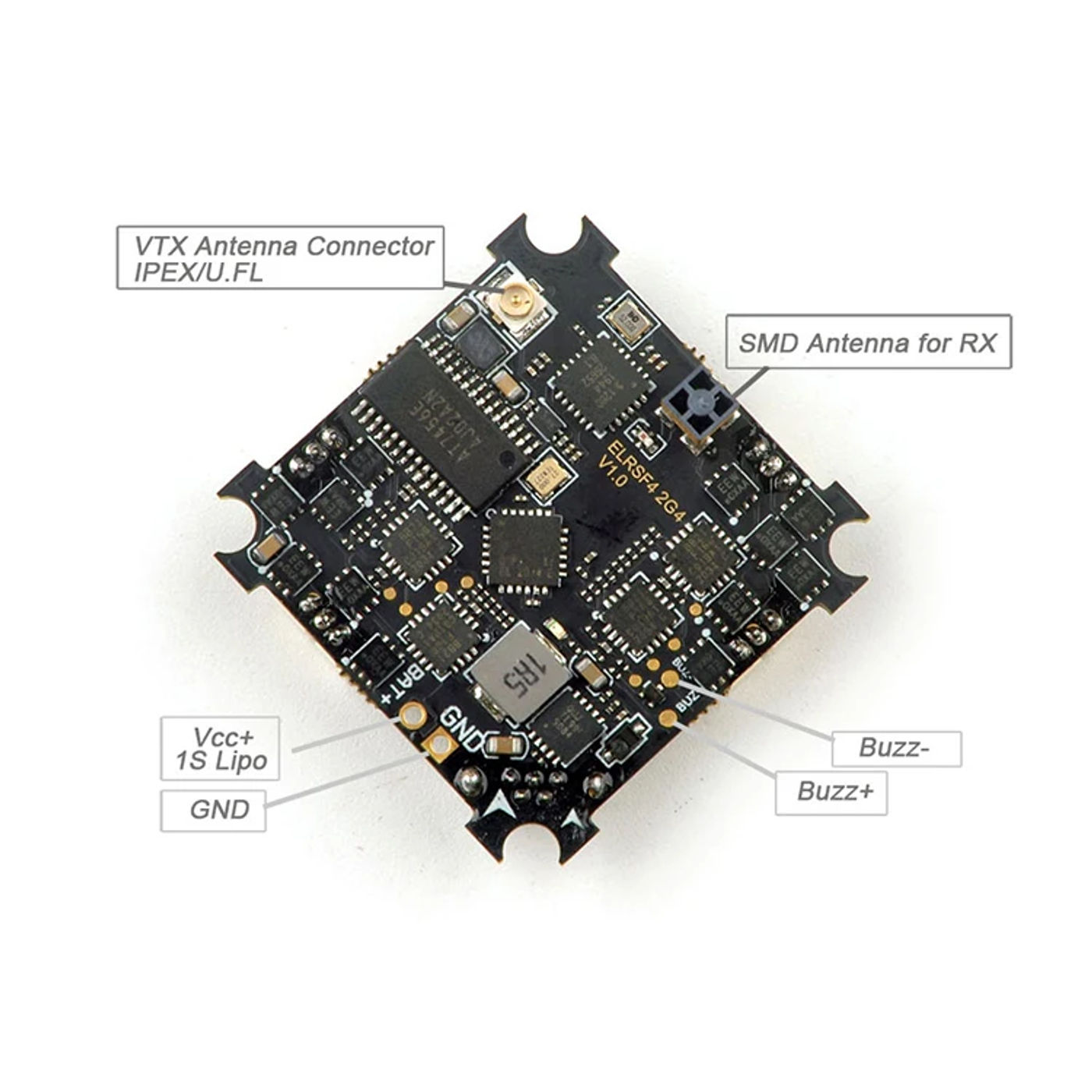

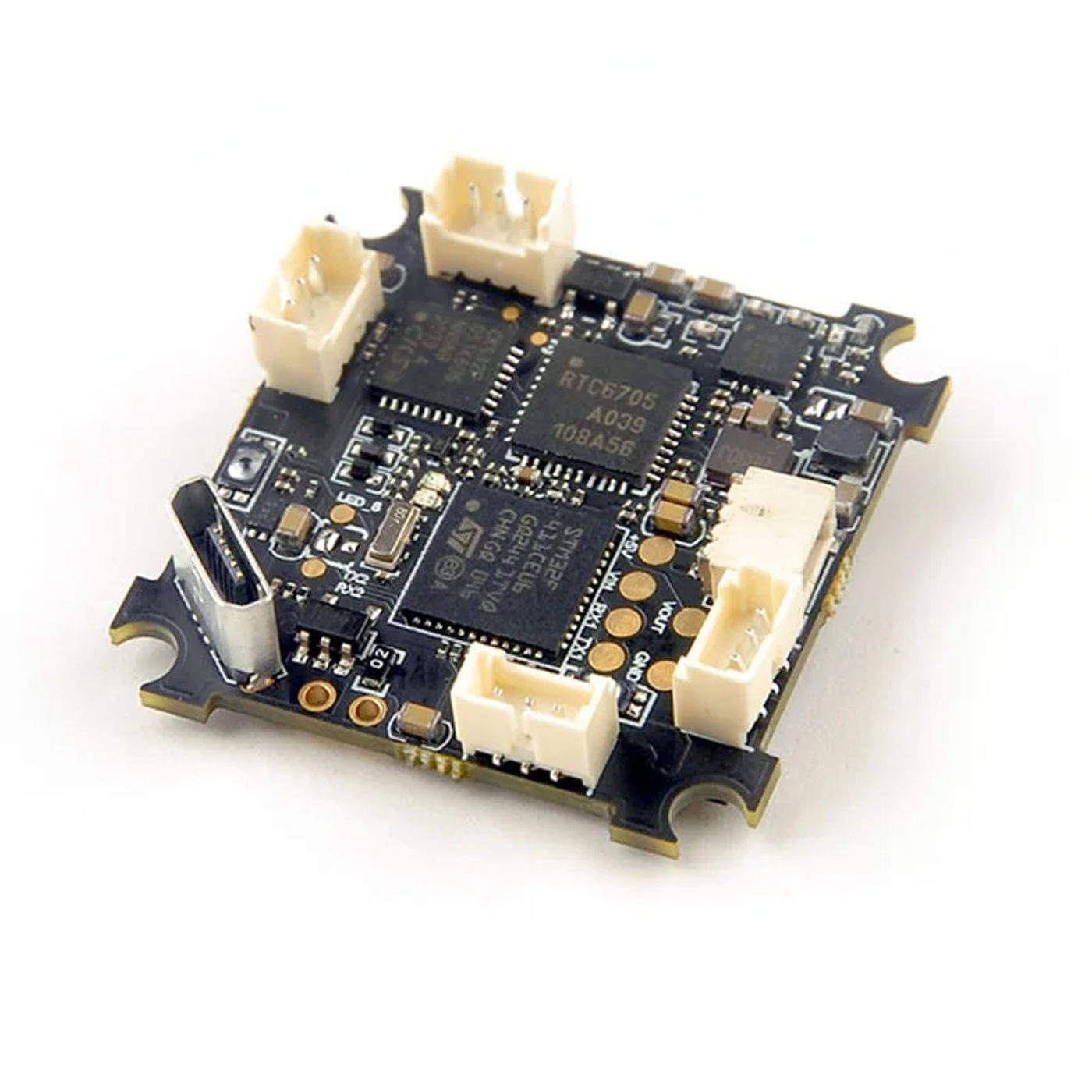

• The first AIO 5in1 F4 flight controller with incorporated SPI 2 ExpressLRS receiver has been released The flight controller integrates SPI controlled 2 ExpressLRS receiver, Dshot protocol 4-in-1 ESC, five 40ch video transmitter and Betaflight OSD Ultra-small length and ultra-stable remote control vary can upgrade the diversity of the original SPI receiver And because the 2 ExpressLRS receiver is provided with the SX1280 radio frequency chip with excessive sensitivity, excessive packet charge and coffee latency, this flight controller is the person who all Race/Freestyle pilots vital It is suitable to be used in Tiny whoop Race or Toothpick Freestyle, and might also be utilized in 1S ultra-lightweight Nano Long Range platform Bind procedure: 1 Power the flight controller by means of connecting USB Please be certain that the port driving force of the flight controller is properly installed at the computer, then open Betaflight Configurator(Latest version) to connect, input to the ;receiver; interface, after which click on ;Bind Receiver;, the crimson LED on the backside of the flight controller will flash quickly, which means the SPI ELRS receiver enters the bind mode There is differently to make the receiver enter the bind mode: after connecting to the Betaflight configurator, circulate to the CLI interface and input ;bind_rx; in the command line 2 After properly connecting the ES24TX or ES24TX Lite/Slim module or DIY 2 ELRS TX module on your Opentx radio transmitter, reproduction the latest version of ELRS file to the SD card in the remote controller The directory is ;SD Card/Scripts/tools;, Then run ELRS and improve the desired TX frimware by way of Wifi, and then click ;bind; to hyperlink with the SPI ExpressLRS receiver Note: You need to alter the Packet Rate to 500Hz from the ELRS interface of your radio controller earlier than binding three After the binding is successful, the Red LED at the bottom of the flight controller will attending to be solid, and the telemetry could be received at the identical time four The which means of the LED fame of the SPI receiver: the LED is getting to be solid, indicating that the bind is successful or the connection and communication is normal, the LED flashing quickly indicates that the receiver is in binding mode, and the LED flashing slowly indicates that the there is not any signal obtained from the radio controller Some helpful firmware and tools download

•
•
•
•
•
