Description

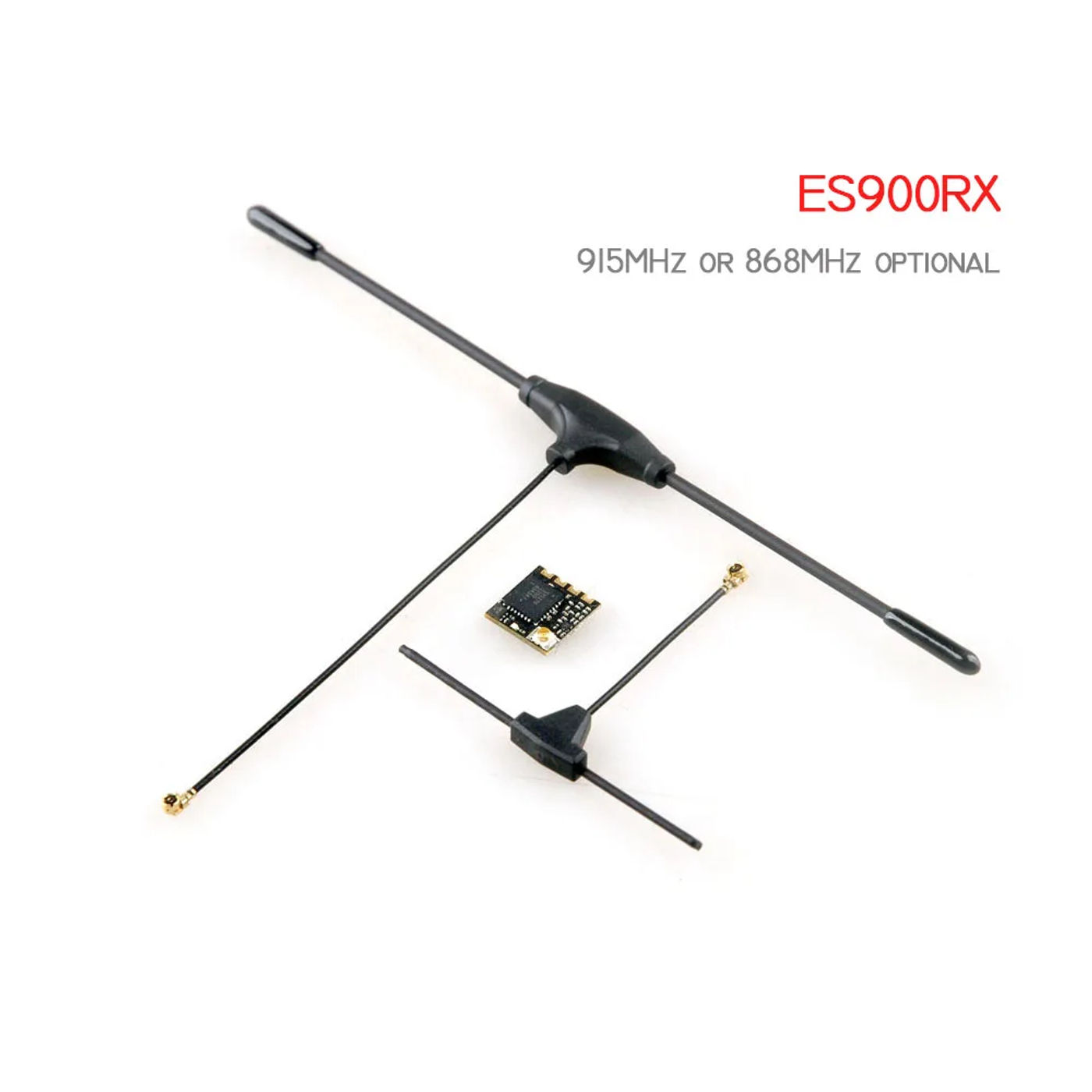

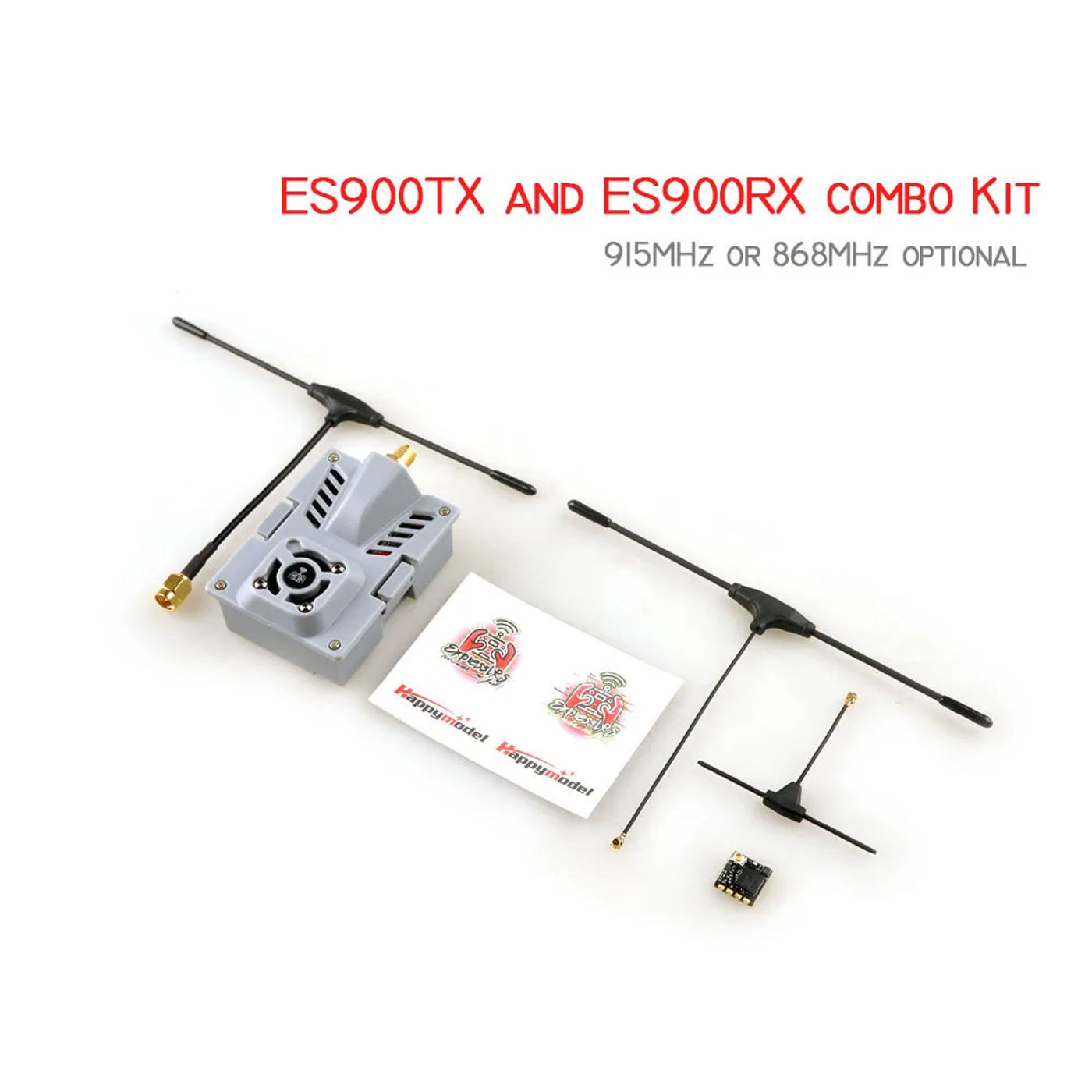

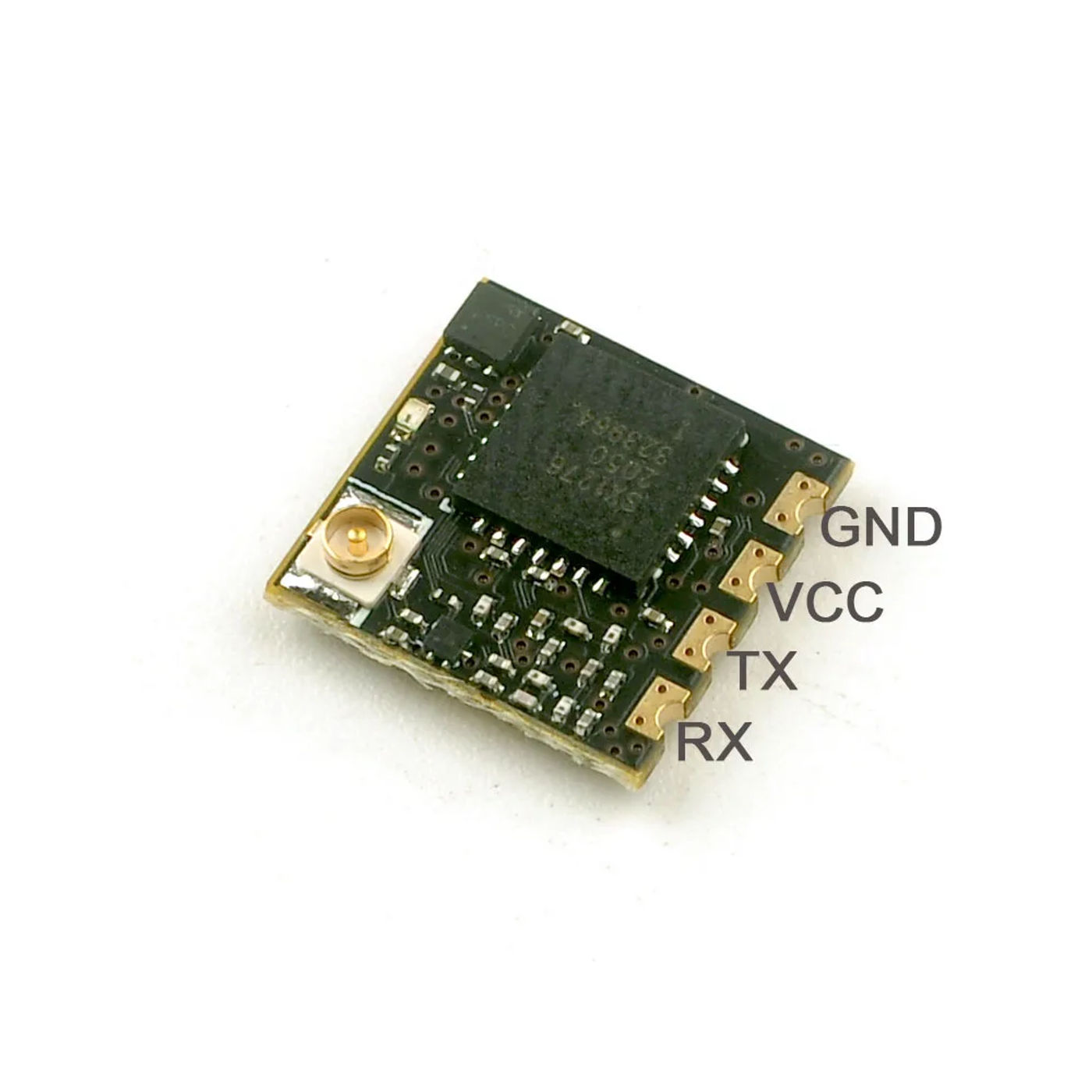

• Item: ExpressLRS ES900TX ES900RX 915MHz Long Range Module Parameters: ES900RX: MCU:ESP8285 VCC input: 5V Operation current: ~100Ma Rx To FC protocol: CRSF RF Frequency optional: 915mhz or 868mhz Dimension: 12mm*12mm*3mm Weight: zero gram (exclude antenna) Antenna connector: IPEX1 Telemetry output Power: <17dBm ES900TX: MCU:ESP32+ESP8285 Dimension: 55mm*39mm*11mm Weight: 9 (only the TX module) Antenna connector: SMA VCC input: 5~13V, Recommend 5V~9V RF Frequency optional: 915mhz or 868mhz(EU) Maximum Output Power: <33dBm Features: ExpressLRS FPV ELRS Long Range ES900TX High Frequency Head ES900RX Receiver Module The ES900TX and ES900RX modules are a collection of long-distance 915MHz/868MHz wi-fi transmission instruments advanced and designed in keeping with the open-source application ExpressLRS These modules are characterized by means of ultra long distance, secure operation, and coffee latency The module is well suited with the overwhelming majority of Opentx remote controls, particularly suitable for the Radiomaster TX16S and Jumper T12 T16 T18 series distant controls, that are primarily plug and play We have specially personalized a cooling module for the transmission module and added a 2006 cooling fan for the hot version of ES900TX, which might help the transmission module operate stably beneath high strength conditions The fan is plug and play, and robotically operates when the transmission module strength is decided to 250mw The receiver module is very small and mini, weighing solely 0 with out an antenna, making it very suitable for various sorts of Whoop traversing machines and Toothpick toothpick machines to be used collectively Both the high-frequency head module and receiver module could be selected from 915MHz or 868MHz, and we have already programmed and tested them before leaving the manufacturing unit Frequency alignment steps for the new ES900RX receiver: 1 Power up the ES900RX receiver, turn off the flexibility directly after the LED at the receiver is going out, and then repeat it again After supplying power to the ES900RX for the 1/3 time, the LED lighting on the receiver will start to double flash, indicating that the ES900RX receiver has entered frequency synchronization mode 2 Connect the ES900TX or ES915TX high-frequency head module, select the CRSF protocol within the remote control module options, then discover the ELRS option, input and choose BIND After profitable frequency matching, the LED mild on the receiver will first turn off, then slowly flash after which remain on JR Standard High Frequency Head Shell 3-D Print Download Address Debugging application download tackle Program Release Page Package Included: The new ES900TX and ES900RX programs include: ES900 TX module high-frequency head module x1 (915MHz or 868MHz optional) ES900 TX high frequency head housing x1 ES900 RX module receiver module x1 (915MHz or 868MHz optional) TX antenna x1 high frequency head antenna x1 RX antenna x2 receiver antenna x2 Heat sink x1 2006 Fan x1 Cooling Fan x1 Adapter twine x1 Buying a high-frequency head separately includes: ES900 TX module high-frequency head module x1 (915MHz or 868MHz optional) ES900 TX high frequency head housing x1 TX antenna x1 excessive frequency head antenna x1 Adapter wire x1 Heat sink x1 2006 Fan x1 Cooling Fan x1 Purchasing the receiver module individually includes: ES900 RX module receiver module x1 (915MHz or 868MHz optional) RX antenna x2 receiver antenna x2

•
•
•
•
•
