Description

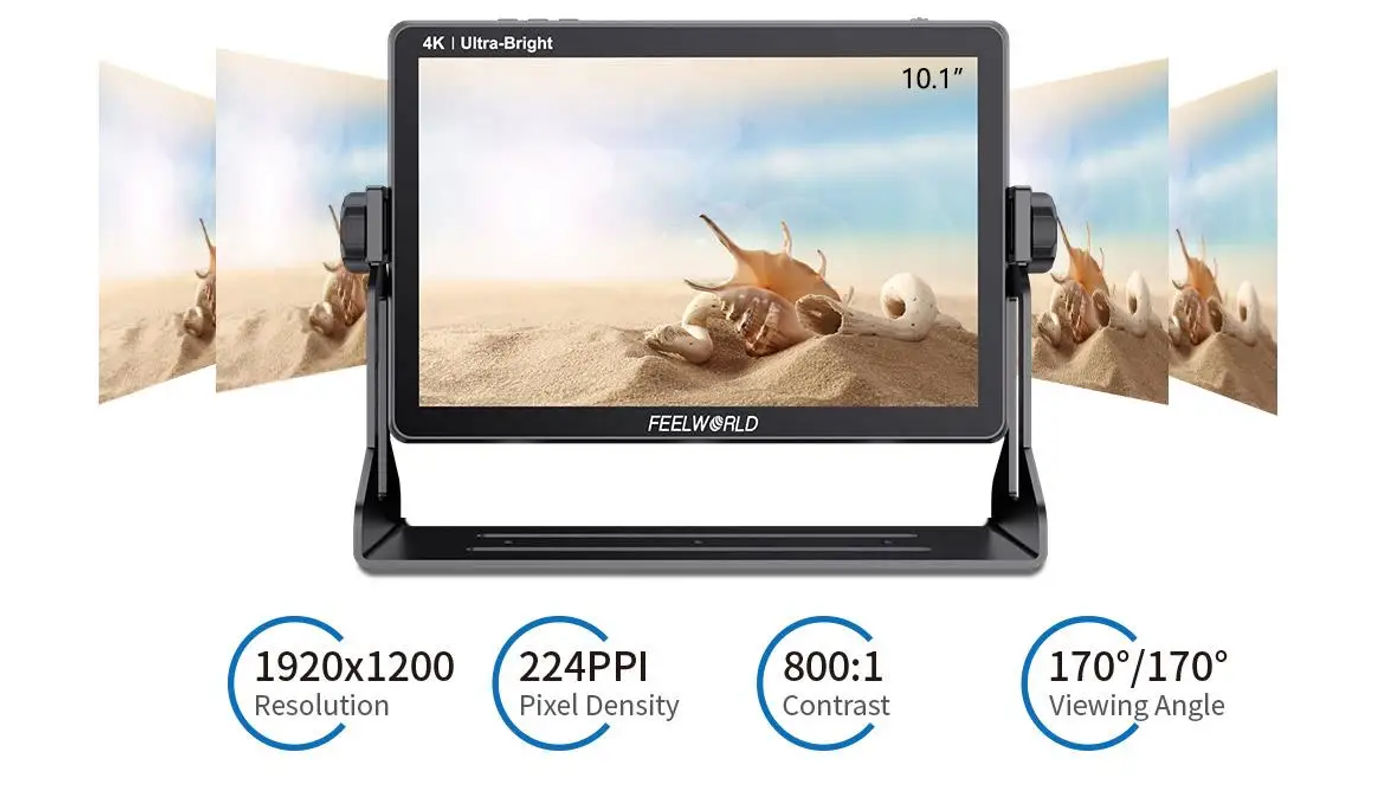

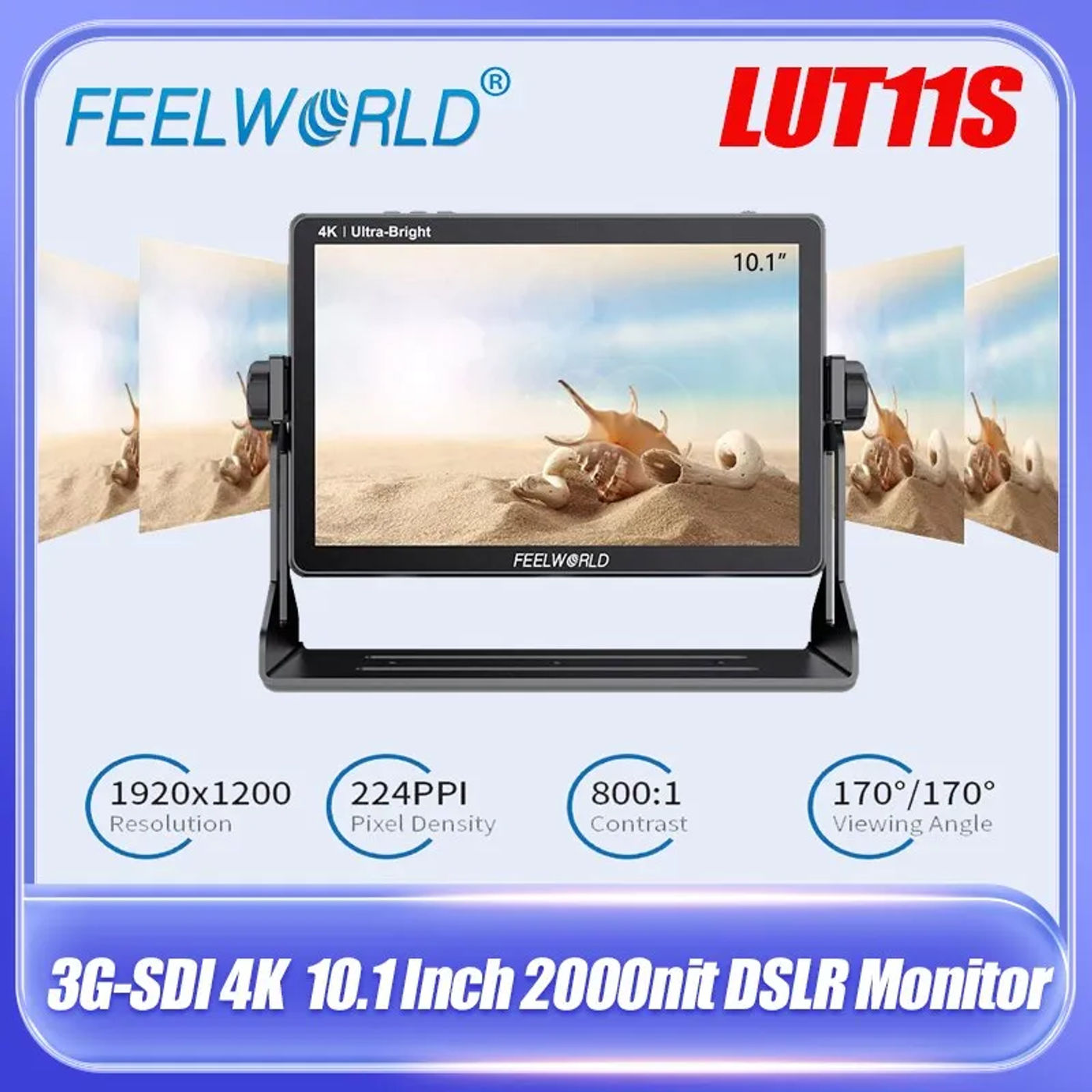

• NOTE: LUT11S :SDI Version LUT11H:HDMI-Compatibled Select the corresponding version as vital 10 Professional SDI/HDMI-Compatibled Camera Monitor FEELWORLD LUT11S is a ten with complete contact screen, ultra brightness 2000nit professional digicam video display Supports 3G-SDI and as much as 4K@60Hz HDMI-Compatibled sign input and output Provides a series tracking and framing instruments with new menu layout, diverse numerical parameters are clean at a glance, making the operation simpler There is a F970 exterior install and gear kit on the rear of LUT11S, which can install akin to wireless transmission, LED light, and so forth It combines the computer screen with wireless transmission to get rid of unnecessary cables, , which is optimal for director monitoring, 1st AC to concentration pulling in the film team The twin battery plates design can set up two F970 batteries at the similar time for long-time energy supply even exterior Ideal for team subject shooting, tracking and post-production 10'' LCD Full HD Resolution Viewing obviously and seize every detail with confidence The LUT11S comes with a 10 1920x1200 complete HD panel, multiple colour gamut such as DCIP3 display your stills and monitoring content material at advanced coloration fidelity, provide extra space for publish colour correction The huge 170º viewing angle makes it easy for a number of participants of the staff to observe it at the same time Multiple Color Gamut, Meet the Different Needs of Photographers The computer screen helps REC709 multiple coloration gamut, presenting wealthy color, meet different wishes of photographers for colour gamut 2000nit Daylight Viewable Ideal for out of doors taking pictures With the assist of 2000 nits of ultra-high brightness, LUT11S isn't frightened of strong light And the outside taking pictures display screen demonstrate is obviously visible, you would shoot with out a sunshade Light Sensor for Auto Dimming The LUT11S has an ambient light sensor, from a dim studio to a sunny location, from nighttime moonlight to noon sunshine, it is going to mechanically modify the visual display unit brightness to suit your filming environment New UI Menu, More Intuitive and Intelligent LUT11S adopts new UI menu, take the application functions are iconized, it's more handy and soon to operate the function Custom Shortcut Keys On the top of LUT11S comes with three custom shortcut buttons , the photographer can set the shortcut applications in advance per the particular desires of the capturing site, and quickly call up the required purposes during the capturing process, greatly recuperating the capturing performance Full Touch Screen Design Easy and touchy operation, make your filming more performance The revolutionary touch display LCD consumer interface affords unbelievable control You can use clear-cut faucet and swipe gestures for the principal monitoring purposes with out buttons Plus, you can also function through scroll wheel key Touch Screen Operating Instruction 1 When the visual display unit and contact are either on, always click on the screen two times to enter the foremost menu 2 Swipe up from the lowest of the screen to open the shortcut menu and click the corresponding menu to open or set the corresponding function Double-click the shortcut menu function and choose the function surroundings with the ''<'' or ''>'' key 3 On the left aspect of the display screen (1/2 split screen), you could possibly directly modify the brightness of the display backlight; at the correct facet of the screen (1/2 break up screen), you might instantly regulate the volume four Click any area beside the menu to exit Innovative External Install and Power Design Simplify your pictures package A Sony F970 exterior set up and power package design is added to the back of the computer screen The exterior kit can be used to install and set up the exterior equipment, like wi-fi transmission, LED light, video converter and others that can be powered via a Sony F970 battery This revolutionary exterior power delivery design meets the need to energy for external wireless transmission, LED gentle and different equipment, drastically saving the distance occupied by way of the equipment and decreasing the burden of photography package The kit has two pass slots, you could regulate the placement of the exterior system via loosening the screws When you don't want the kit, you could directly loosen the screws to remove the kit SDI+Dual HDMI-Compatibled, More Interfaces Selection Compatible with film cameras, DSLR cameras SDI preferrred for the movie cameras, dual HDMI-Compatibled signal inputs are easily matched with SLR camera and one output, assist as much as 4K@60Hz, which is transmitting with out loss and the screen is extra smooth and clean And gives three headphone jack to observe audio Note: HDMI-Compatibled input default to loop-out from HDMI-Compatibled 1 output, HDMI-Compatibled 2 cannot loop-out DC Power Supply Power your DSLR or mirrorless camera The LUT11S is not only equipped with DC IN 12V (suit for use 12/3A adapter), but in addition affords auxiliary energy out (DC OUT 8V) allowing shooters to energy their cameras With a battery adapter cable (Optional), the LUT11S extends digital camera run-time, while providing a extra usable exhibit Barrel output for powering your digicam with a individually out there DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic) More adapters coming quickly Note: since diverse brands and items of cameras require varied strength for normal operation, the digital camera is probably not able to take photos or video normally Therefore, when utilizing batteries to strength the monitor, with the intention to use the camera normally, it's endorsed to apply a large-capacity completely charged battery Dual Battery Plates Long-lasting strength for outside shooting The rear of monitor of LUT11S have twin battery plates, can set up two typical NP-F batteries, long-lasting power for your display screen In addition, you might swap the battery quickly, just double faucet the battery icon on the higher appropriate nook of the display screen about three seconds to finish the switching, and do not be disturbed interrupting monitoring Install one F970 battery (6600mah) final for approximately 2 hours, and install two F970 batteries last for approximately 3 hours You can prefer set up 1 or 2 battery base on your need ● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 sequence (Note: the battery no longer including, please purchase individually Higher ability (working time) will be longer) Smarter Tools for Absolute Precision Our flexible OS is packed with an in depth suite of scopes, all 1-touch away and simple to apply The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, concentration peaking, zoom, zebra, false color, safe frames, etc) as well as a versatile 3D LUT implementation (use built-in LOG to Rec video or add files) and ideas for anamorphic de-squeeze monitoring Load Custom 3-d LUTs,Preview Filming Look in Field Shooting Support to load 50 tradition LUTs The LUT loading function makes the colour calibration simpler and extra intuitive, optimizes the workflow and improves the paintings efficiency within the early level of taking pictures You may use built-in LOG or add information LUT11S allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and immediately select between them, conserving creative intent, always 3G-SDI Supports 3D-LUT Loopout The LUT11S supports 3G-SDI signal LUT loop-out function, which can output custom LUT image to different displays, so the director and photographer can see the photographs with LUT on the same time When the sign is SDI, and you should use this function, just activate ''LUT Switch'' and ''SDI Out (LUT)'' at the menu HDR Monitoring What you see is what you get LUT11S supports HDR (high dynamic range) monitoring, for unimaginable readability and detail, simplifies the complexities of shooting Log and HDR, aiding you to copy post-production workflows at present when it matters most–while shooting When the HDR function is became on, you could choose Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI Accurate waveform tracking Save your finances When you should analyze image quality more accurately than just staring at the image then use LUT11S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio part and level displays, and get broadcast correct waveform tracking that displays every thing you need to know technically about your video and audio indicators The purposes would be opened separately, and in addition assist one key to open all scope mode LUT11S turns into the best desire for dwell manufacturing monitoring, so that you not should use a separate expensive scopes! Three Colors Tally Indicator Strengthen the cooperation between the cameraman and the director There is a rear TALLY mild with 3 colors （green, red, yellow）display, and regulated through DB-9 ports on the backside of the monitor Multiple Installation Methods Meet your assorted need of monitoring The video display is equipped with three common 1/4''mounting threads (bottom, right, left side), you may easily mount it on the camera or other kinds of package with a magic arm, bracket, and so forth Whether it's horizontal or vertical shooting, you could possibly accurately video display

•
•
•
•
•
