Description

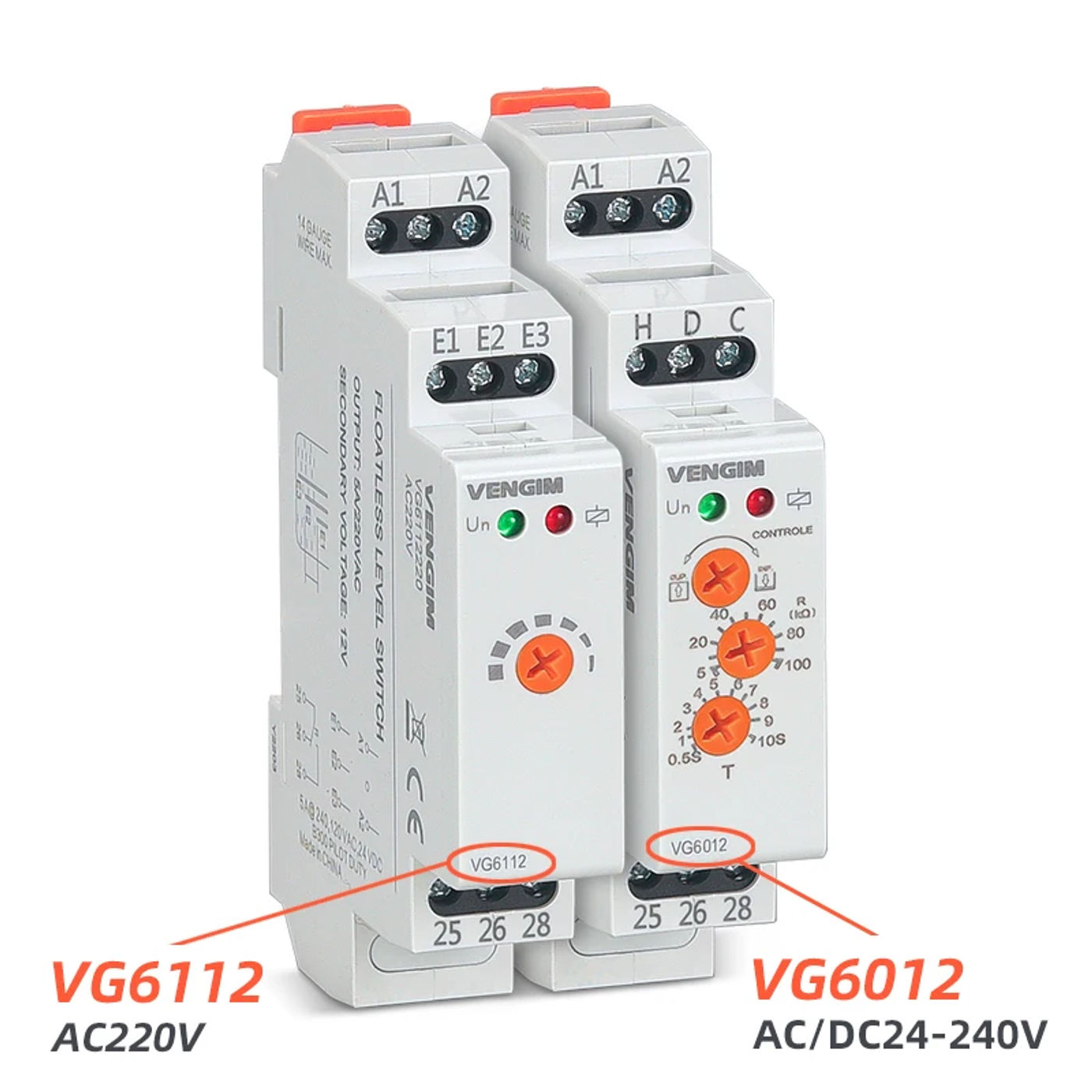

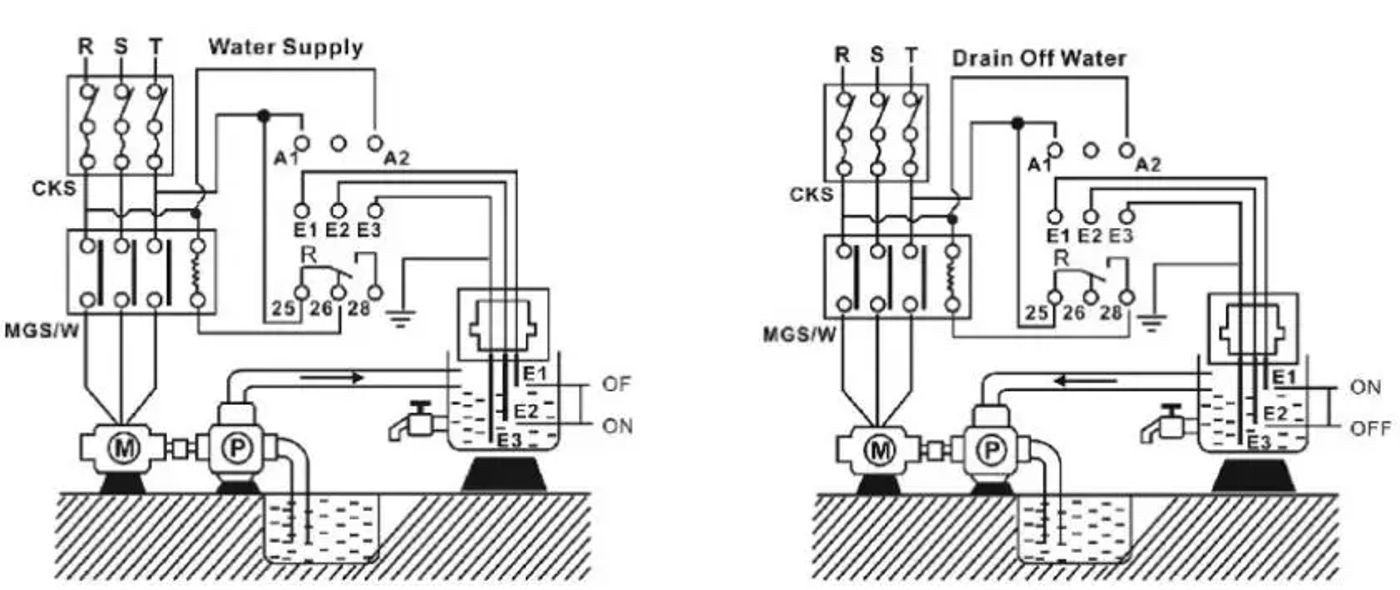

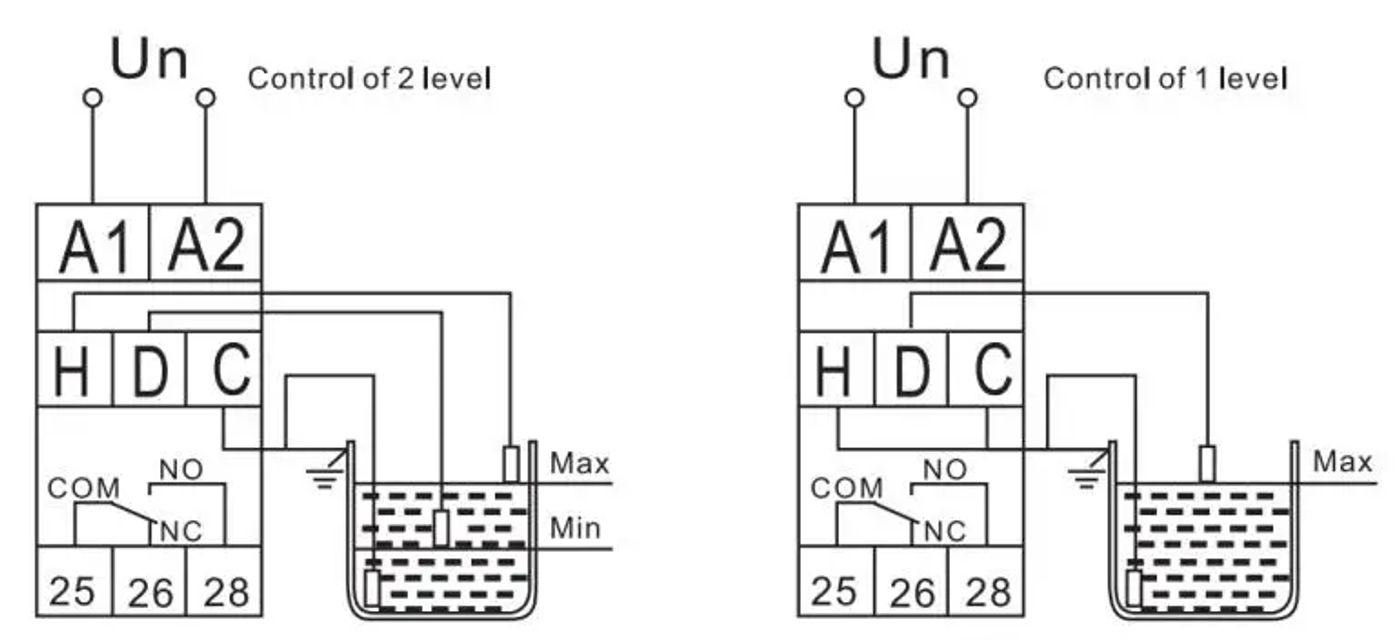

• Liquid point control relays are regulators for conductive liquids that hold liquids within the limits between a most level and a minimal level and make sure the protection of submerged pumps opposed to dry operating It can be utilized in wells, tanks Information: – Power supply：①VG6112: 220V AC ②VG6012: 24V-240V AC/DC – Frequency supply：50/60 Hz – Operating temperature：-20℃~+55℃ – Storage temperature：-30℃~+70℃ – Setting accuracy-full range：±10% – Contacts type：1 C/O (SPDT) – Output ontacts：5A (Resistive Load) – Output type：relay – Dimenssion：90×18×65mm VG6112: Water Supply When the water level reaches E1, the pump stops automatically When the water point drops below E2, the pump operates automatically VG6112: Drain Off Water When the water level reaches E1, the pump begins robotically When the water point drops below E2, the pump stops robotically VG6012: Control of two level & Control of one point Water supply: When the water point reaches H&D(2 level: H, 1 level: D), the pump stops working When the water point drops under D, the postpone starts(in 1 level) When the time is up, the pump begins working and supplies water Drain Off Water: When the water point reaches H&D(2 level: H, 1 level: D), the pump starts working and starts to drain When the water level drops below D, the postpone starts(in 1 level) When the time is up, the pump stops working and prevents draining VG6112: Power supply：220 VAC Sensitivity Adjustable VG6012: Rated delivery voltage：24V-240V AC/DC Function Adjustable： Pump up or down Sensitivity Adjustable： 5-100 kΩ Delay Adjustable： zero seconds Liquid Level Sensor, Water Level Sensor Material: Stainless Steel Blue: 1 Yellow: 2m Red: 2 Din Rail Mounted

•
•
•
•
•
