Description

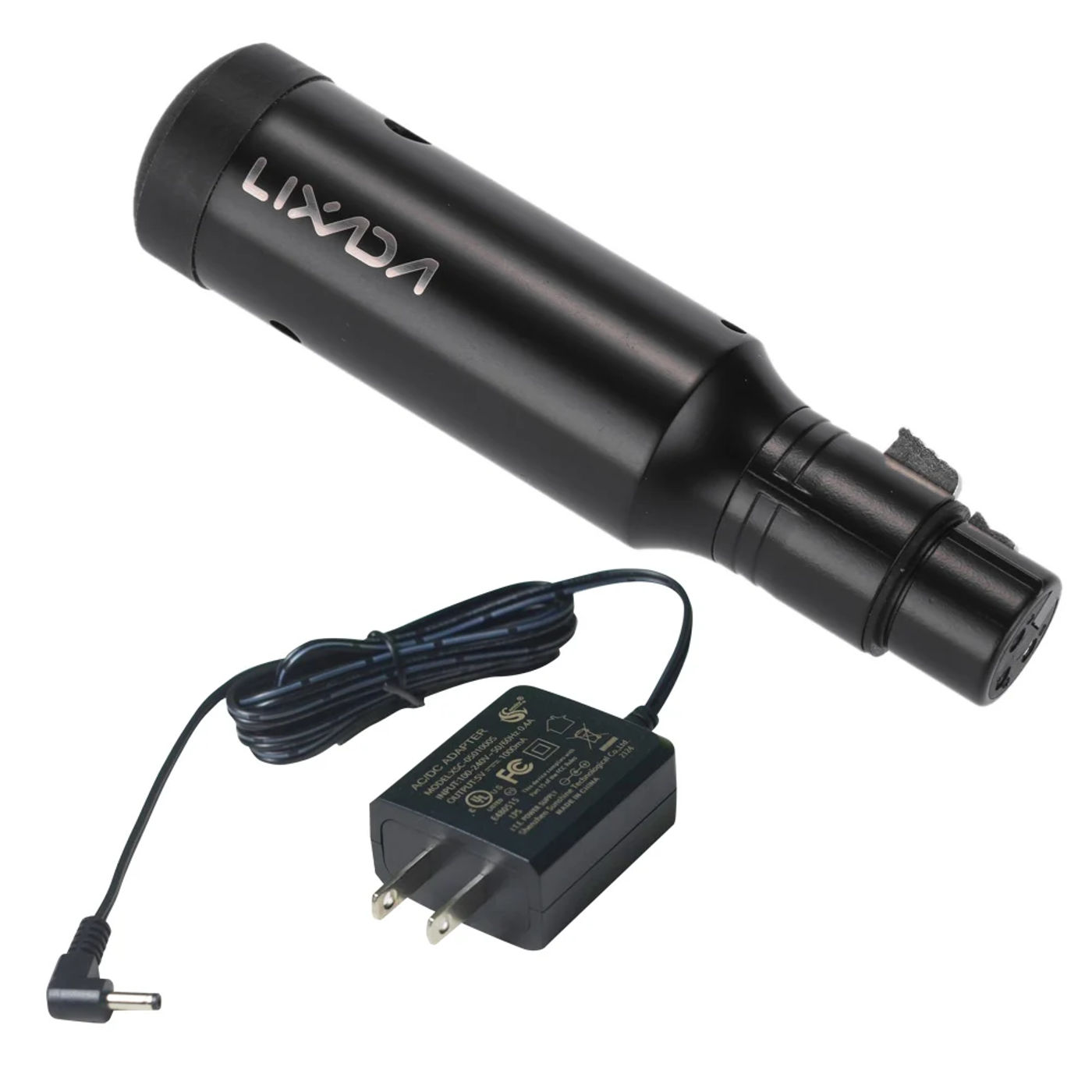

• This rechargeable receiver is used to point light. It transmits typical DMX512 protocol news (generated via console). With it, you'd management diploma light in wi-fi way. Features: It can paintings about nine hours after battery being solely charged. Support colour jumping in 126 channels. High anti-jamming means ensure secure performance. User can use 7 teams individual wi-fi internet without any interfering within the same place. (Tricolor LED showing indicators) Specifications: Input voltage: 5V DC 500mA Communication distance: 400M (visible distance) Working frequency section: 2 ISM, 126 channels Receiver sensitivity: -94dBm ID code group quantity: 7 Battery: 16340 battery 3 650mA Power adapter: US standard, UK standard, EU standard, AU normal (optional) Cable length: 177cm / five Charging time: 1 Working time: 9-10h Item size: 2 * eleven / 1 * four in (D * H) Item weight: 81g / 2 Package size: 14 * 10 * 4cm / five * four * 1 (L * W * H) Package weight: 192g / 6 Operating manual: ID code and LED color corresponding relationship： 1: RED 2: GREEN 3: RED+GREEN 4: BLUE 5: RED+BLUE 6: GREEN+BLUE 7: RED+GREEN+BLUE 1) Press momentary exchange above the side led indicator to indicate ID setting. 2) Press back to set IC, to the color ID desired, adding 1 at any time when you press the switch will advance the color ID code. 3) Working condition: LED constant lit up: No DMX or wireless signal. Red LED flash: Transmitting. Green LED flash: Receiving 4) RF frequency 2 - 2, complete 126 channels, it’s searching automatically. 5) ID Code “1-7” groups ID code, press ‘KEY’ for setting, it only can paintings below similar ID code of transmitter and receiver. (Same LED Color) Establishing communication: 1. Power on DMX512 wi-fi received board first after which following to energy up the transmitted board. 2. Press “Key” button to set same ID price of transmitted board and purchased board. Please use diverse ID cost if you need use more than 1 group wi-fi universals at identical time in similar place. 3. The pink LED flashes when transmitter transmits DMX records through no interfered frequency section, then receiver modifications communicated frequency section. Green LED flashes till received same ID value, the additional DMX data, the speedier the LED flashes. 4. Communication change into established correctly. Package list: 1 * DMX receiver 1 * Power adapter 1 * User handbook

•
•
•
•
•
