Description

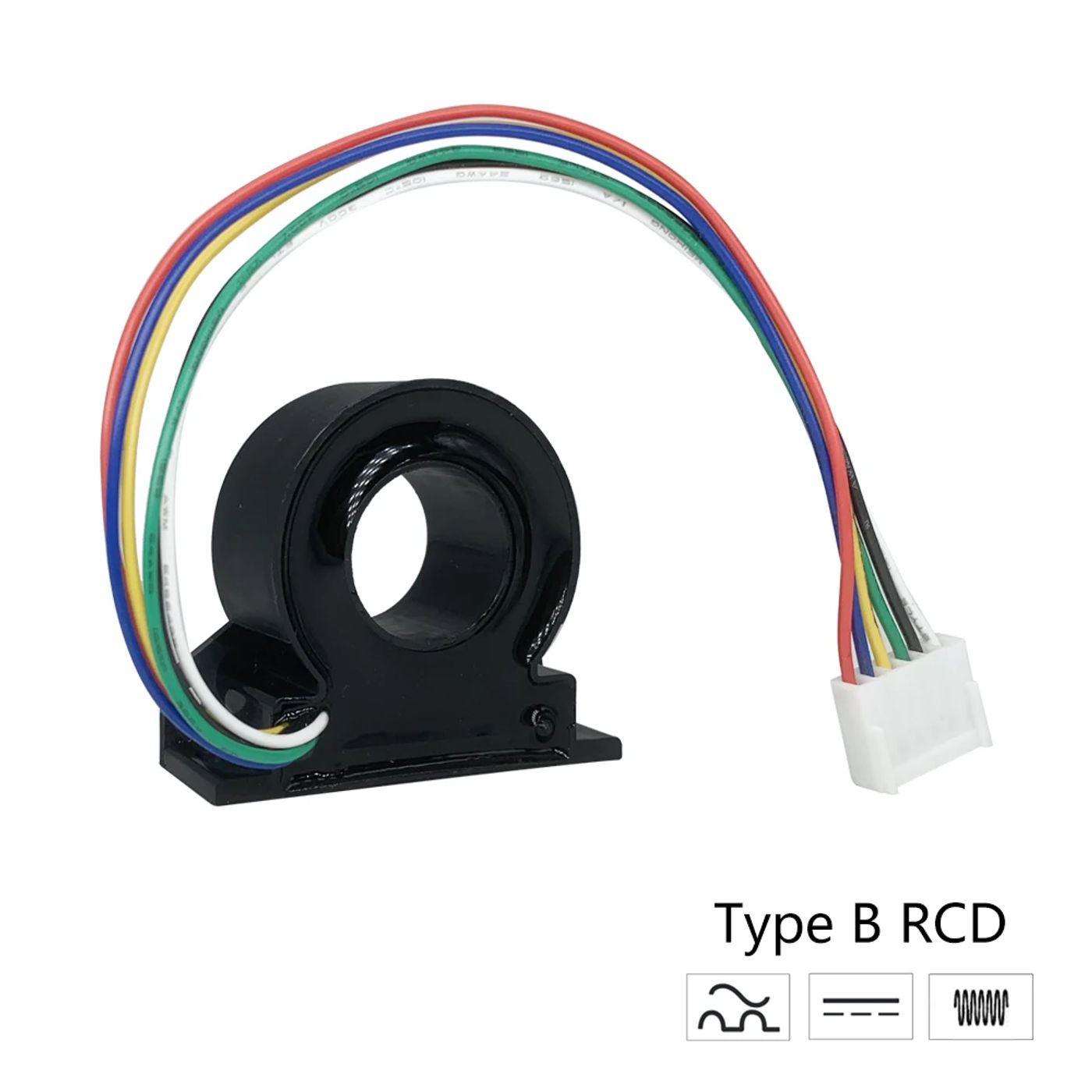

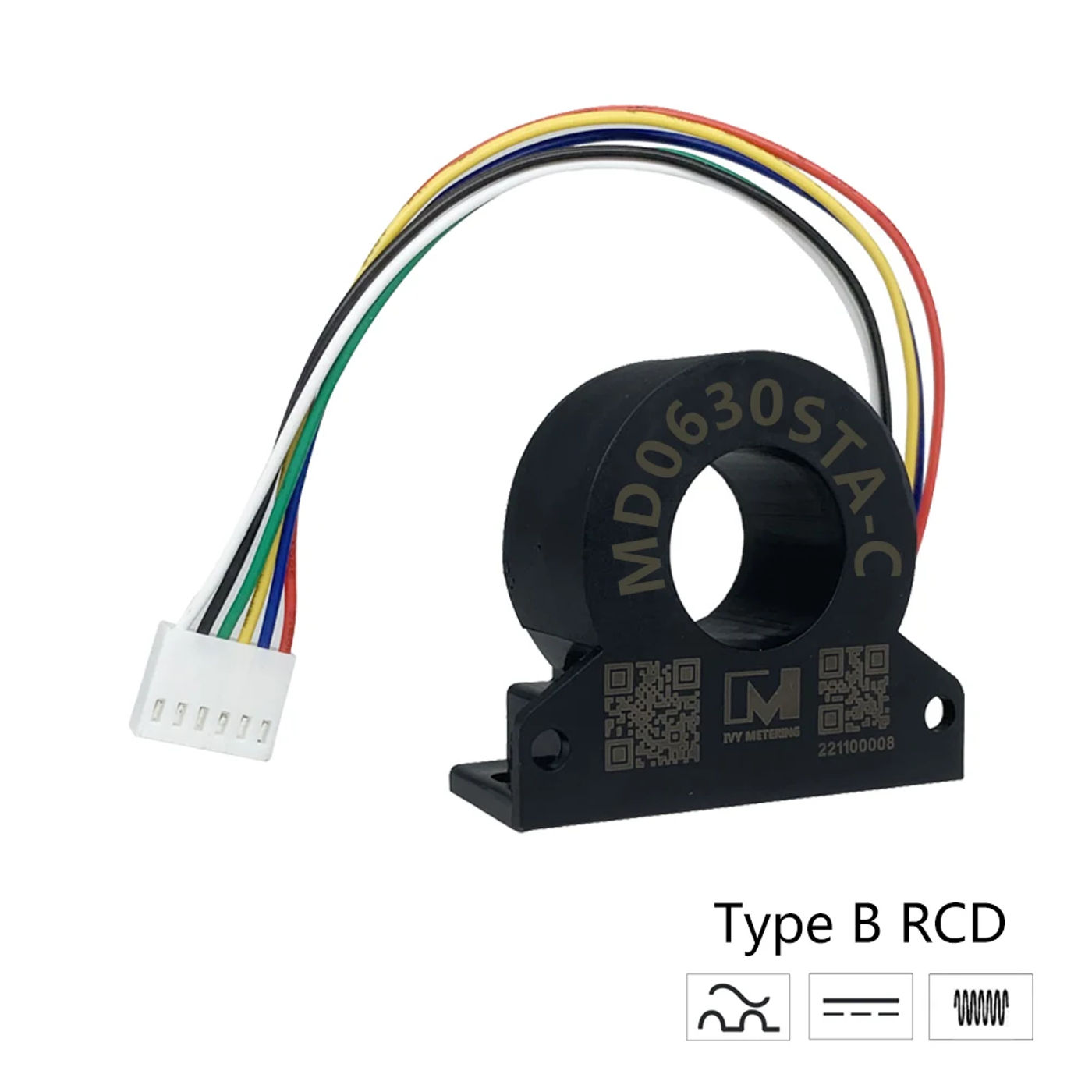

• MD0630STA-C IEC Certified Internal RCD AC 30mA DC 6mA RCMU Sensor Type B Leakage Detector Product Introduction MD0630STA-C is earth leakage detection residual recent sensor (also named as RCM/RCD) with electronic output of fault detection and incorporated self-testing applications Which can meet AC/DC residual current protection request explained in IEC 62752 With the traits of high sensitivity, correct measurement, small size, and integration When a DC leakage latest of 3~6mA or an AC leakage latest of 15~30mA is detected, an alarm sign could be output The Residual Current Monitor is intended for the detection of DC and/or AC residual currents in 50Hz/60Hz AC or DC installations The RCM are splendid to be used with Electric Vehicle charging cables (Mode 2 Protection) and EV charging stations (Mode three Protection) Residual current detection for IEC based requirements are 30mA AC and 6mA DC It can not only hit upon AC fault current, DC pulsing and gentle DC fault current, but also sinus wave AC fault recent at a high frequency as much as 1kHz IVY MD collection leakage recent sensors are optimized for fast, cheap assembly, combined with the highest product and production quality In addition to the use of charging piles Also appropriate for medical instruments, inverters, UPS, clever home, business machines, IOT, photovoltaic systems, energy distribution cupboard and many others Provide extra reliable protection Protecting personal and electric package security

•
•
•
•
•
