Description

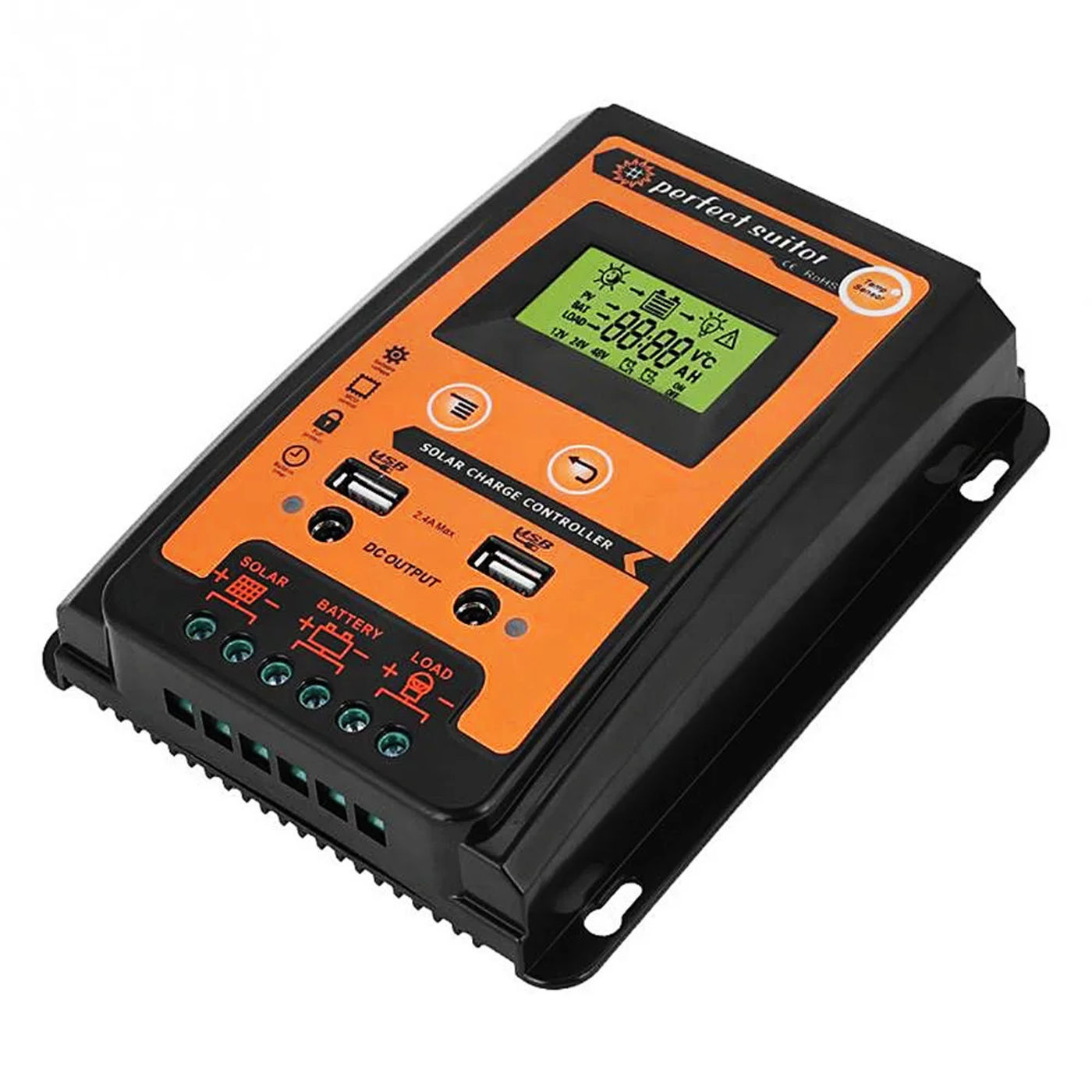

• MPPT Solar Charge Controller 12V 24V 30A 50A 70A Solar Controller Solar Panel Battery Regulator Dual USB 5V LCD Display Note:It is effective well matched MPPT + PWM Solar Controllers ,not one hundred pc Ture MPPT Features: Automatic id components voltage, 12/24V auto reputation Humanized LCD exhibiting and double button operation of man-machine interface Completed technical information for setup and modify High performance clever MPPT 3-stage charging mode The load control mode can be selected, the timer function would be reset for road light at night Discharge means control Discharge counter of ampere hour Working garage function: listing the total run time of system, record timers of error throughout running time, checklist occasions of full charged battery Reliable over voltage protection, quick circuit protection, over load protection, overcharge protection, over-discharge defense Accurate temperature compensation, correcting the charging and discharging voltage automatically, getting better the battery lifetime Roundly opposite linked defense Solar panels, battery, solar price controller nice poles are all linked together, adopting detrimental MOSFET in sequence control circuit Specifications: Current: 30A, 50A, 70A MAX Input strength 12V:30A 390W 50A 650W 70A 910W 24V:30A 390W 50A 650W 70A 910W Rated Voltage: 12/24V USB Output: 2 x2 Over Charge Current(V): 13/x2 24V Over Discharge Current(V): 10/*2 24V Temperature Compensation: -3mv/°/cell Empty Load Wastage: <45mA Loop Voltage Drop: <200mv Display: LCD Display Charging Type: MPPT Waterproof Grade: IP32 Material: Plastic Color: Black + Orange Size: 17 x14 x 4cm/6 x five x 1(30A), 21 x 19 x 5/8 x 7 x 2(50A), 22 x 20 x 5/9 x 7 x 2(70A) Package Weight: 480g-1284g Package List: 1x Solar Charge Controller 1x User Manual Note:It is tremendous well suited MPPT + PWM Solar Controllers, no longer 100 percent Ture MPPT Model ICharger MPPT SC30A ICharger MPPT SC50A ICharger MPPT SC70A System Voltage 12V / 24V Max Input Voltage of sola panel 55V Self-consumptlon ≤10mA Max payment recent 30A 50A 70A Max discharge latest LVD eleven ADJ 9V ┈ 12V; ×2/24V LVR 12 ADJ 11V ┈ 13; ×2/24V Float Voltage thirteen ADJ 11V ┈ 13V; ×2/24V Boost charging 14; ×2/24V Batler Voltage lower than 12V birth increase charging 2 hours Battery Ovev Voltage Protection 16;×2/24V Reverse Connection Protection sure Load Over Current Protection Yes,each two minutes restart as soon as Temperature Compensation -24 mV/℃ for 12V system;×2/24V Working Temperature -20℃ ┈ +55℃ Waterproof grade IP32 Size (mm) 175×139×40 209×191×52 229×201×54 USB 5V 2 DC output 12V / 24V Net weight (kg) zero 0 1

•
•
•
•
•
