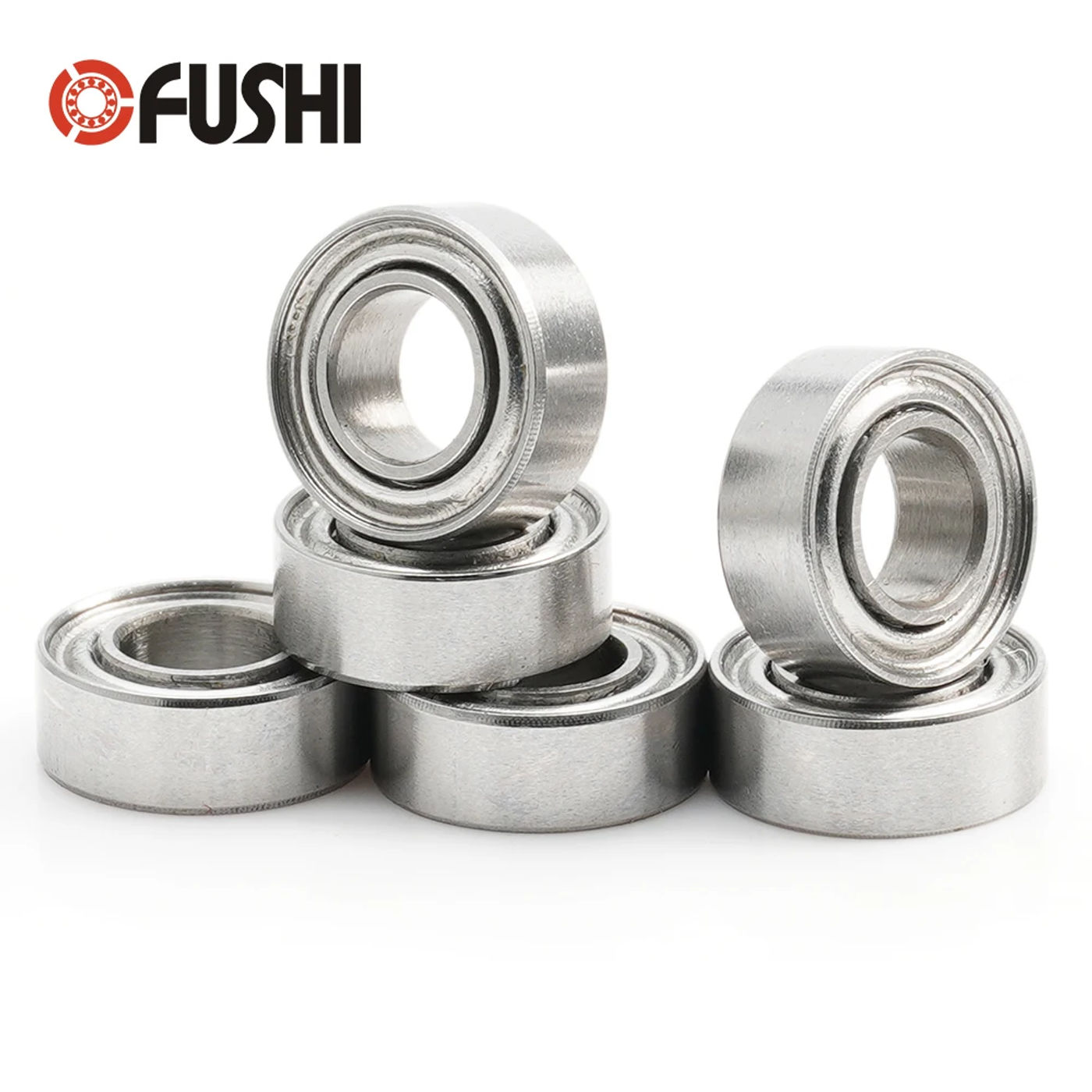

• Miniature Bearing Types & Features Miniature and tool ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can also be labeled as "Open", "Shielded", or "Sealed" counting on the lifestyles and kind of seal or shield. Deep groove ball bearings have two inherent advantages;they can keep up some axial load in both path in addition radial loads, and the two raceway cross-sections are straight forward circular arcs which might be very precisely executed so the bearings have low friction and intensely little noise or vibration. Several different cage designs come in with diversified traits and the alternative depends on the person application. Pic1: Showing contacts between the rolling points with inner and outer raceways. Pic2: Through pressure lifestyles fatigue analysis, it shows that the excessive precision bearing has longer fatigue lifestyles and higher security factor. TECHNICAL SPECS Model: MR84-ZZInner (d): 4 mmOuter (D): eight mmWidth (B): three mmGrade: ABEC-1Material: 52100 Chrome SteelSeal: Shield Qty: 1 Lot = 10 PCS Model: MR84-ZZ Purposes of Lubrication The main objective of lubrication is to minimize friction and wear inside bearings which will cause premature failure.The effects of lubrication would be briefly defined as follows:(1) Reduction of friction and wear Direct steel contact between the bearing rings, rolling features and cage is prevented by a lubricant film. (2) Extension of fatigue life The rolling fatigue lifetime of bearings relies upon vastly upon the viscosity and picture thickness between the rolling touch surfaces. Sufficient movie thickness prolongs the fatigue existence while film thickness shortens it. (3) Dissipation of frictional heat and coolingCirculating lubrication could also be used to carry away frictional heat or heat transferred from exterior the bearing. (4) OthersAdequate lubrication also helps to stop international topic from coming into bearings and guards opposed to corrosion and rust. Application F A Q 1. Why do the bearings I obtained have shaking? The clearance of the bearing is related to the play.The default is the conventional C0 clearance, which is often 3-18um.The corresponding principle is shown in the figure below.If you don't need to shake, please prefer C2 small clearance bearing.If you've got any questions, please touch us earlier than purchasing. 2. What is the accuracy of ABEC-1? ABEC is the American ANSI standard.The corresponding German DIN ordinary and international ISO standard are as follows: 3. Do you present logistics tracking information? Yes, all our merchandise present full logistics tracking.And the goods you buy are all new.We will buy transportation insurance coverage for you.If the product is broken or misplaced during transportation, you can get paid.

•
•
•
•
•
