Description

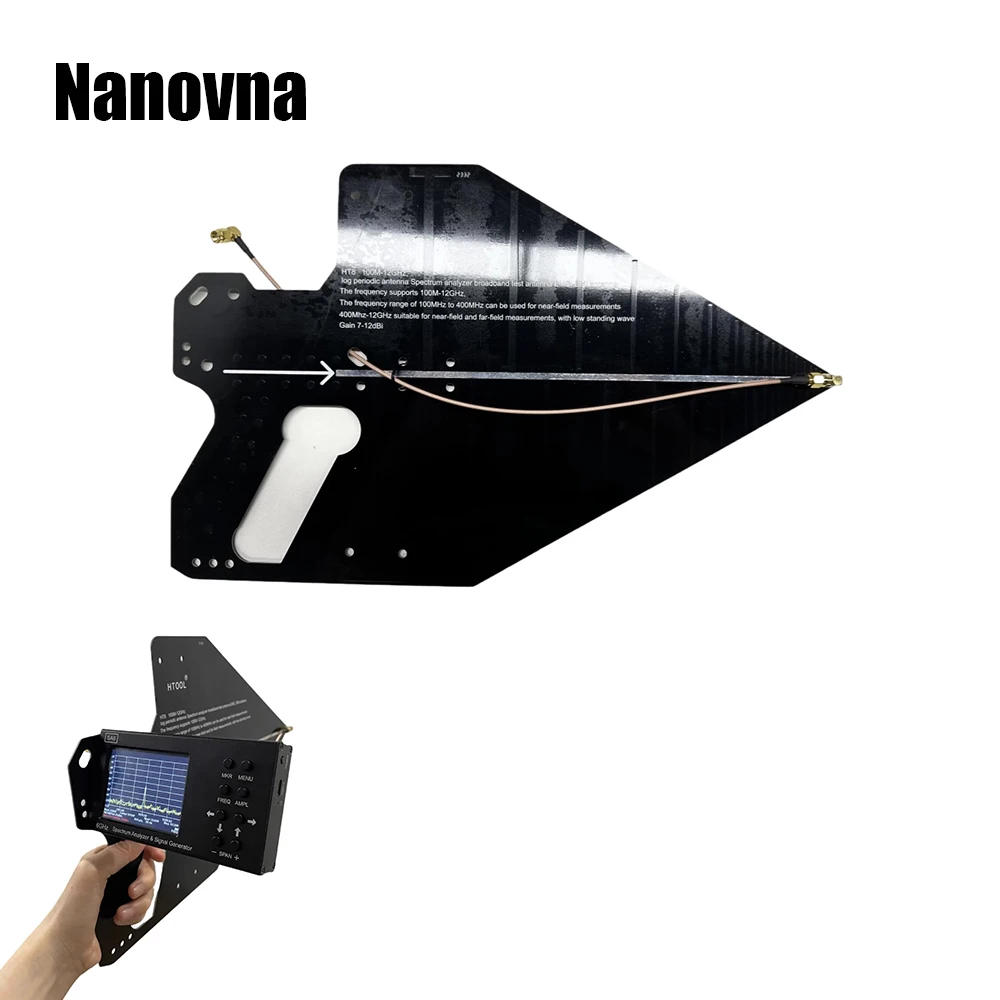

• HT8 logarithmic periodic antenna operates from zero and has some great benefits of huge bandwidth, reliable performance, high gain, and many others It is an ideal directional receiving and transmitting antenna for electromagnetic compatibility testing, digital countermeasures and different fields Functions & Features 1 【Direction Measuring Function】: The logarithmic periodic antenna is ready to understand the size of the directional and angular news of the signal, which are used to ascertain the route of the supply of the sign 2【Directional reception and transmission】: This antenna is designed to be extra directional and may discuss receiving and transmitting signals to enhance sign quality and coverage three 【High gain】: Logarithmic periodic antennas have high gain, which can increase the reception sensitivity and transmission power of the sign and upgrade the conversation high quality four 【Widely used】: logarithmic periodic antenna has a wide range of applications within the discipline of communication, radar, radio reconnaissance and so on It is especially suitable for the situations that need to measure the signal direction of a number of frequency bands in a wide array 5 【Multi-frequency band support】：The logarithmic periodic antenna is able to disguise a wide bandwidth fluctuate of 0, which enables it to evolve to the signal dimension needs of other frequency bands 6 【Passive Design】: The logarithmic periodic antenna is a passive design that does not require exterior energy supply, making it smooth to put in and use 7 【Convenient to carry】: Due to the hand-held design, this antenna is compact and lightweight, which is convenient for customers to hold and use eight 【Simplify System Complexity】: Log-periodic antennas can minimize the variety of substances and complexity in the system, lowering formula expenses Application EMC Testing Parameters (1) Spectral range: 100MHz - 12GHz (2) Polarization: Horizontal Polarization / Vertical Polarization (3) Directional gain: 7-12dBi (4) Voltage VSWR: ≤2 (5) Antenna size: 40*25 / 15*10 (6) Weight: 205g (7) Output Connector: SMA (8) Output Impedance: 50Ω Environmental Requirements Working Temperature: -45℃~+65 Note: The equipment works in a high temperature and excessive humidity surroundings the place the temperature is not less than 40℃ and the relative humidity isn't always less than 95% Package list HT8 Log Periodic Antenna*1 SMA cable*1 Note: Analyzer now not included !!!

•
•
•
•
•
