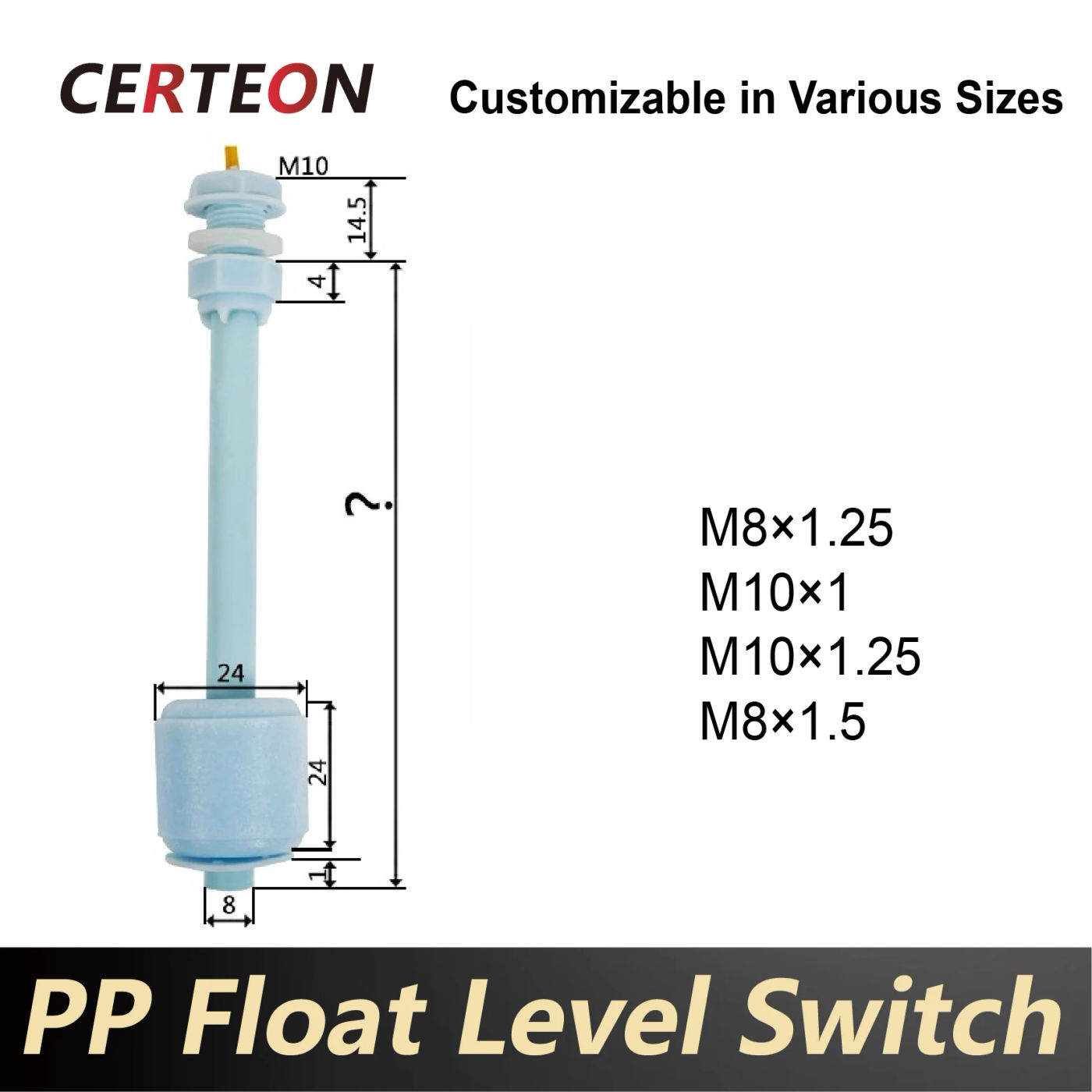

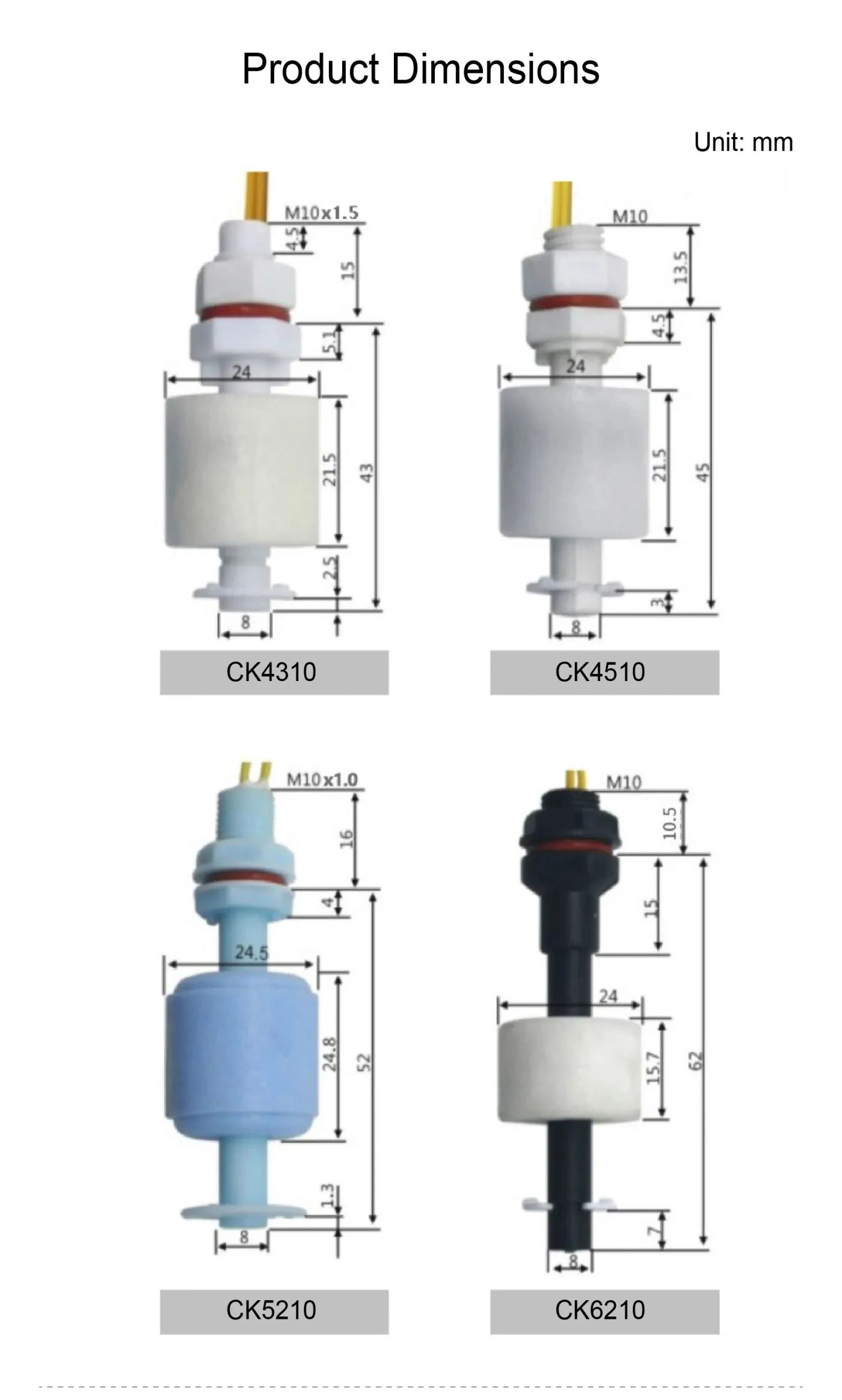

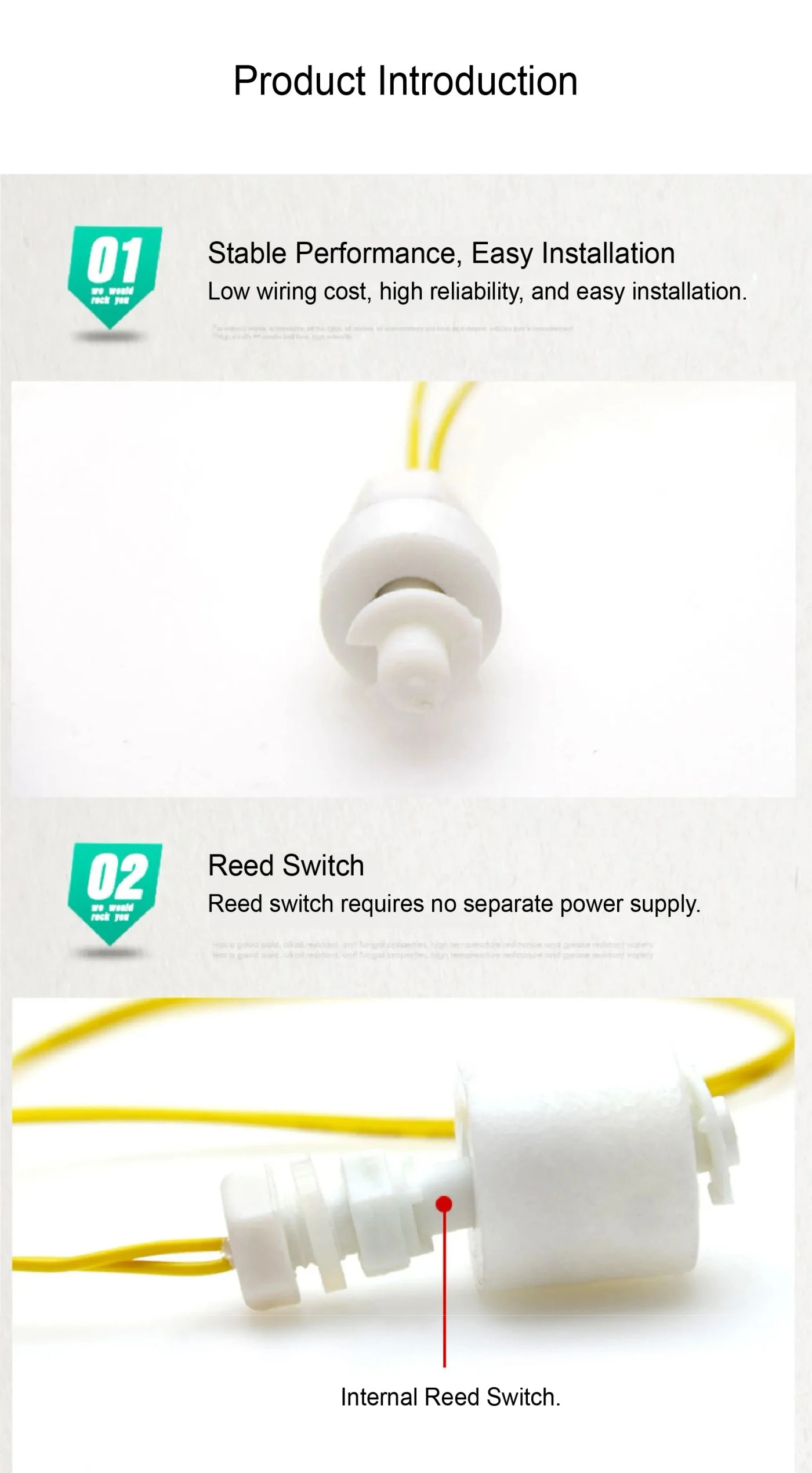

• 1 NOTE This PP Float Level Switch is designed for precise liquid level dimension across a variety of functions Important: The go with the flow switch can not directly management solenoid valves, high-power relays, or AC contactors A small relay (e, HH54P) is needed for proper operation The go with the flow role is constant and can't be adjusted Retaining clips at either ends restrict motion Even if the retaining clips are adjusted, the reed change contacts within cannot be repositioned Order Information: Please choose Single Float or Double Float as necessary Confirm the Voltage: 0-110V, 0-220V Confirm the Thread Size: M8*1, M10*1 (Customizable) Confirm the Rod Length: Customizable（eg 0-300mm,0-600mm,0-900mm,0-1200mm） This product is customized and might be tailor-made for your required size If you would like a size over 800mm, please contact us for product and transport charge quotations 2 PARAMETERS Type Low Pressure High Pressure Max Power 10W 50W Max Switch Voltage 110V DC 220V AC Max Switch Current 0 0 Min Breakdown Voltage 220V DC 300V AC Max Load Current zero 1A Max Contact Resistance 100MΩ 100MΩ Temperature Range -20°C ~ +60°C -50°C ~ +90°C Float Material PP PP 3 APPLICATION Ideal for tracking liquid levels in tanks and commercial equipment Suitable for acidic, alkaline, and other harsh environments Compatible with diversified relay techniques for efficient management 4 FEATURES Made of durable polypropylene (PP), immune to corrosion and excessive temperatures Uses a magnetic reed switch, offering secure and precise performance Operates at the principle of magnet sensing for dependable switching Customizable specs accessible for particular functions five FAQ Q1: Can the float role be adjusted? A1: No, the float position is fixed by way of circlips Moving them won't affect the interior reed change Q2: Can the waft swap straight management water pumps or solenoid valves? A2: No, the reed swap contacts have a small recent capability A small relay or AC contactor is required in response to the weight form Q3:Can the glide switch size and thread be customized? A3:Yes, present detailed dimensions earlier than ordering, and contact us for personalization

•
•
•
•
•
