Projection Screen Motor 60KTYZ Permanent Magnet Synchronous
Flat Shaft 8MM Electric Silver Screen Cloth Lifting Motor B/C 6/7CM
Model: 60KTYZ permanent magnet synchronous motor B/C
Voltage: 220V
Power: 25W
Frequency: 50HZ
Speed: 15R/MIN S2(3MIN) Class E
Capacitance: 1/500V AC
Type B motor is acceptable for screens of 120 inches and below
Type C motor is appropriate for screens of a hundred and fifty inches and below
When buying a motor, please listen in on the size of the shaft and the location of the mounting gap

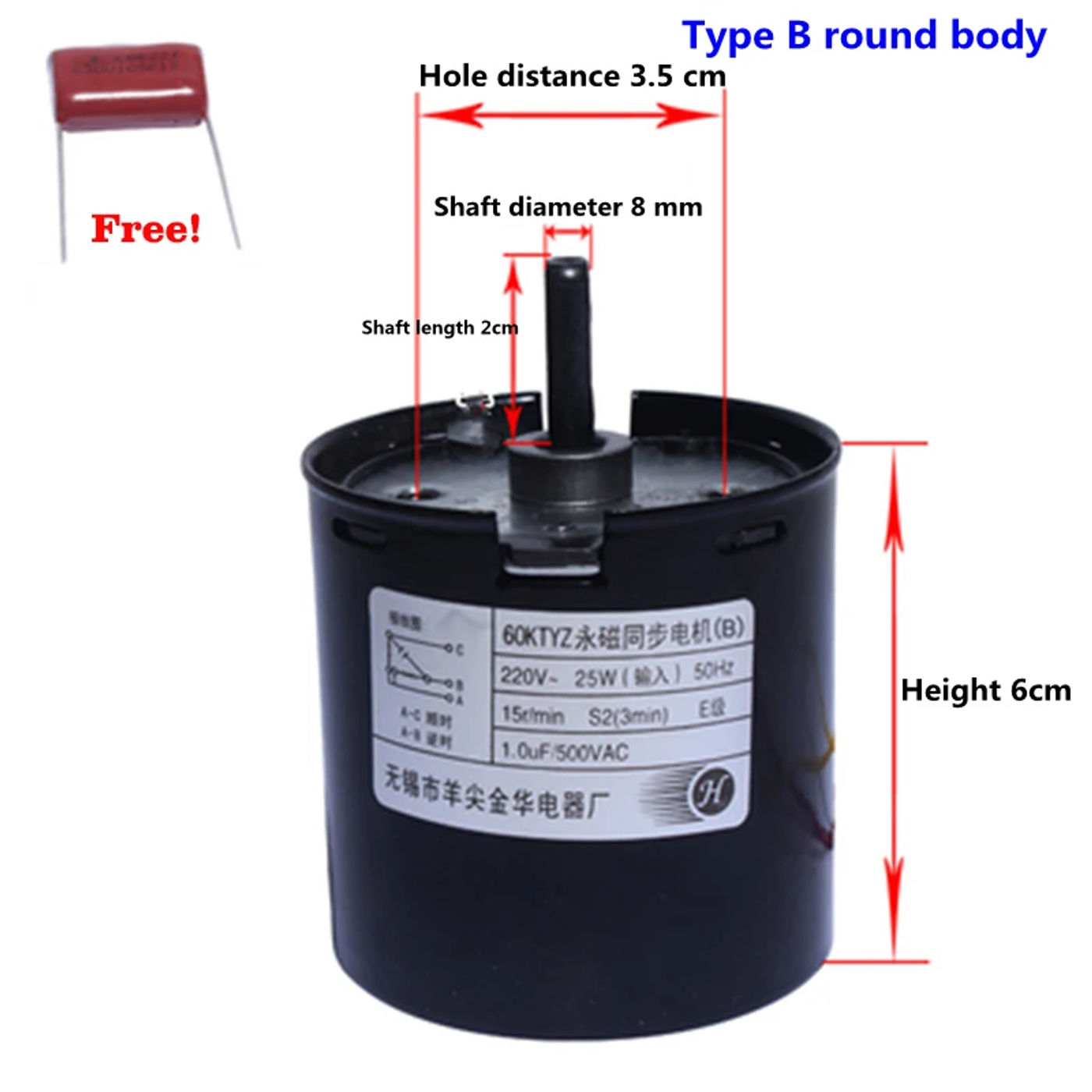

B-type motor length reference diagram:
C-type motor length reference diagram:

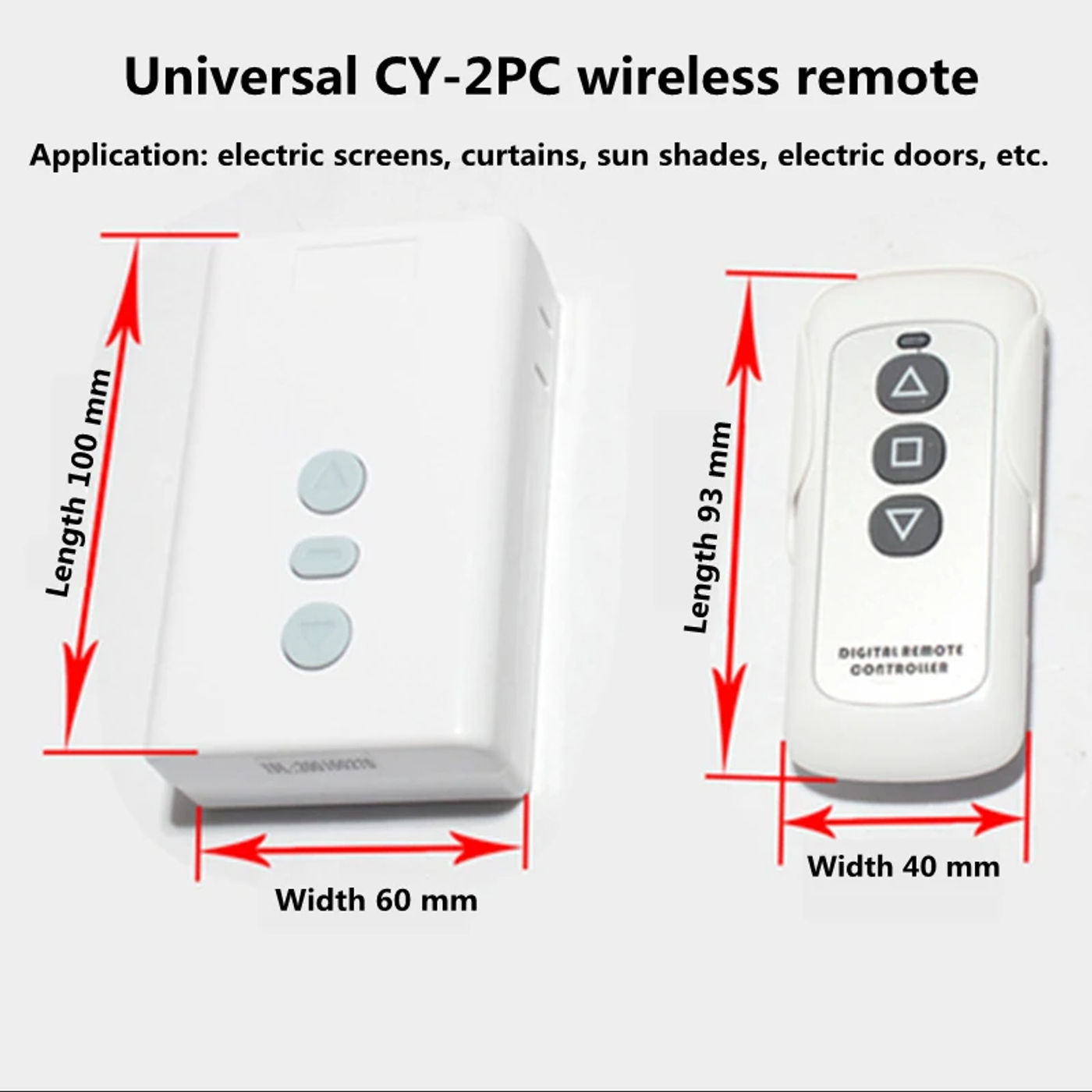

Remote management description:
Product parameters:
1 Voltage: AC220+/-10%
2 Load power:
3 Working frequency: 315MHZ, 433MHZ (optional)
4 Remote management distance: 50-100 meters
Application: Widely used in electrical screens, electric curtains,
electric window openers, electric doors, electric opening and closing curtains,
220V motor high quality and adverse control, electrical monograms, etc
