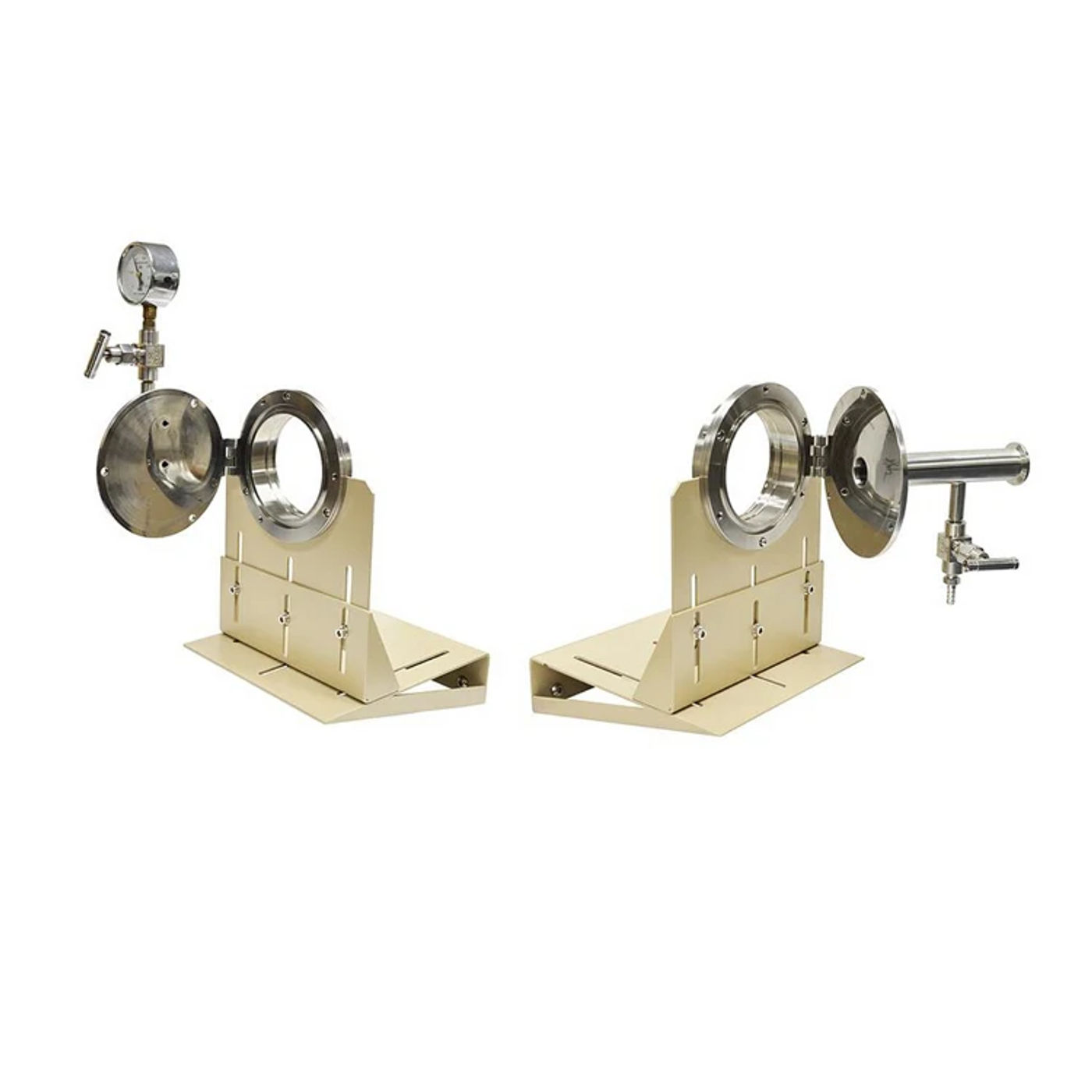

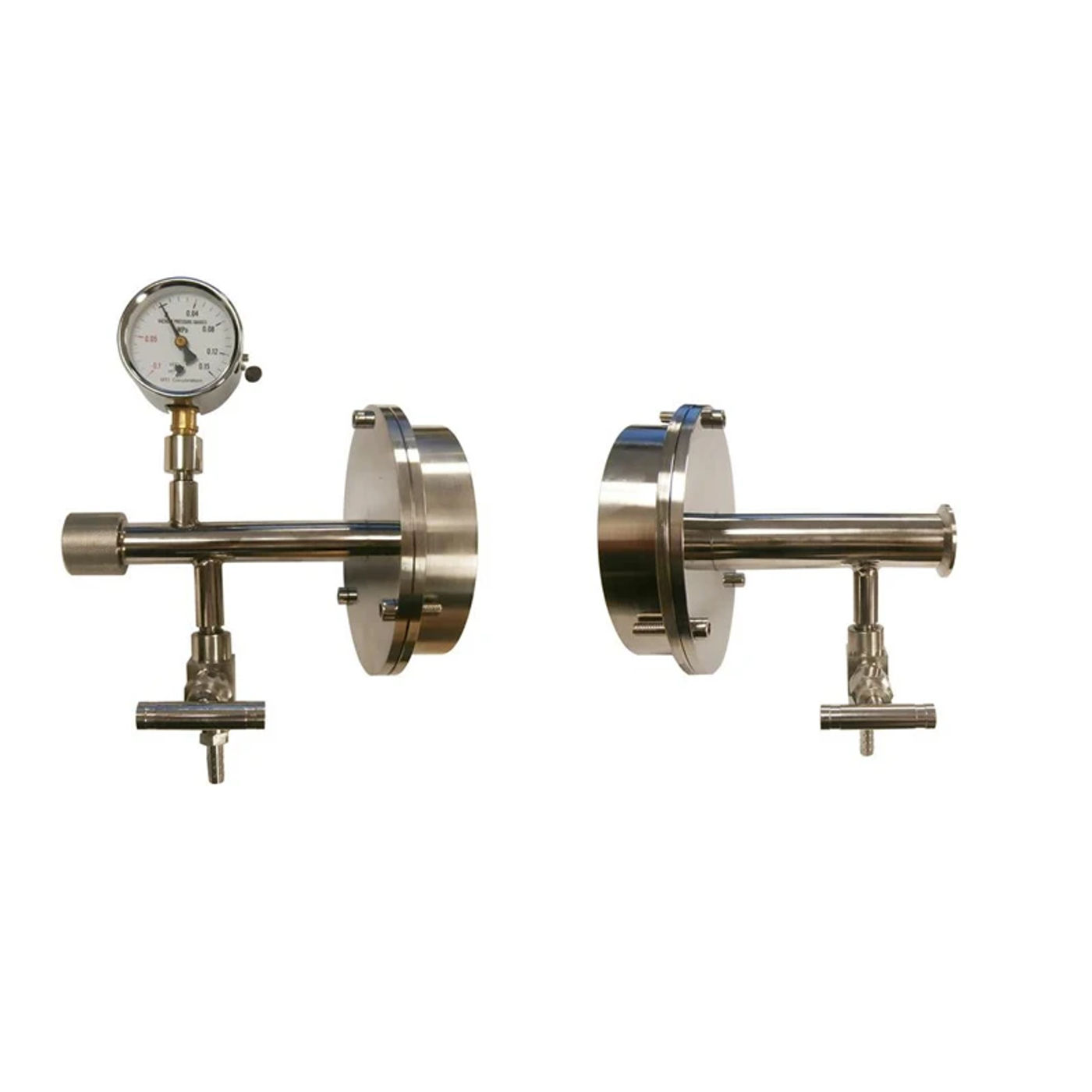

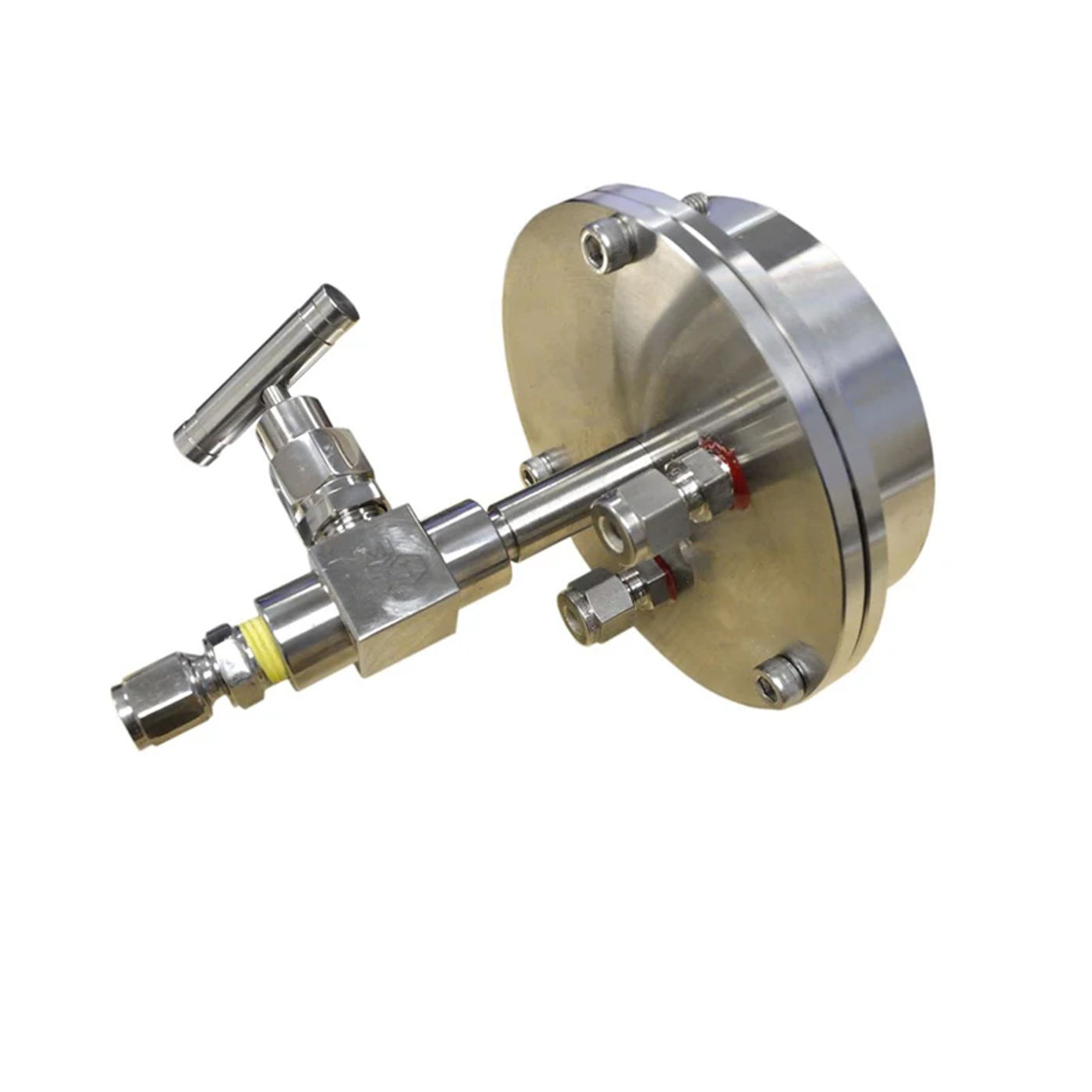

• Water cooling 5" flange with Support Fixture Introduction of water cooling flange This 5" flange is specially made for CVD applications where customers need both the inlet and outlet 1/4" tube fittings to  enable gas flows in the system. Each flange is equipped with a water cooling jacket which fully protects the O-ring during the heating process. Flange supports will be provided with the flange set to ensure the rigidity and safety of the  structure.  water cooling flange Specification of  water cooling flange Structure   Made of Stainless Steel ( SS304)  with double high temperature silicon O-rings on each flange Openable flange is designed for sample easily loading / unloading Delicate metal support allows for both vertical and horizontal adjustment  Configuration Left flange: one 3/8" Barbed Hose Fitting, one Mechanical Pressure Gauge, one Needle Adjustment Valve Right flange: one 3/8" Barbed Hose Fitting, one Needle Adjustment Valve Features Seals tube ends by tightening screws on the flanges without any welding and glue Excellent for any type of tubing: ceramic, glass, quartz and steel pipe Installation requires you to drill holes on the furnace casing and mount the flange support (Details about the  installation please click the picture left) Flange support parts are included in the set (click on lower left picture for details) Water cooling jacket is implemented with fittings for easy connection to water hoses  Structure of  water cooling flange Other sorts of water cooling flange Our Services 1. Factory expenses with the finest quality. 2. One yr free-of-charge upkeep for all the dental package 3. Customized provider for special call for 4. Fast and flexible delivery, by sea, by air, through express 5. Quick reaction within 24 hours How to reserve 1. If you are interested in our products, please tell us the model number and quantity. 2. We will make a proforma bill to your order. 3. We will carry the product ASAP on receipt of the price Guarantee 1. Guarantee for 12 months after shipment. Payment 1. Western Union 2. PayPal 3. Secure Payment by way of Alibaba 4. Telegraphic move 5. L/C Company Information Zhengzhou CY Scientific Instrument Co., Ltd is especially engaged in the research and development, design, manufacturing and gross sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, ambiance furnace,CVD components and customized lab equipment.Welcome you come to go to us.     FAQ 1. Are you a producer or commerce corporation ? Yes,you can guaranteed that we are a professional manufacturer with complete experience, and doing enterprise in domestic and oversea for most years. 2. We will not be reputable for operation and installation of your machine? While this is not difficult to solve,our machine is simple to operate,no should legit training,and the handbook and vedio we make can train you step by step. What's more,we have legitimate engineers , if necessary we will ship them in your side to solve the problem. Also we stock on-line service at any time. 3. How about packaging ? if mechanical device damaged,what should I do ? Usually mechanical device is full of wooden case and traditional export carton, plywood carton or as your requirement. Before transport we are able to additionally ship you the packing pictures of the products to confirm with you. After agreed, we can bring it. Damage haven't occurred before, if happen,we will arrange replacement. 4. We have not do enterprise before,how can I believe your organization and machine ? We were GOLD supplier and not using a complaints on Alibaba.and our mechanical device have exported to many nations around the globe

•
•
•
•
•
