Description

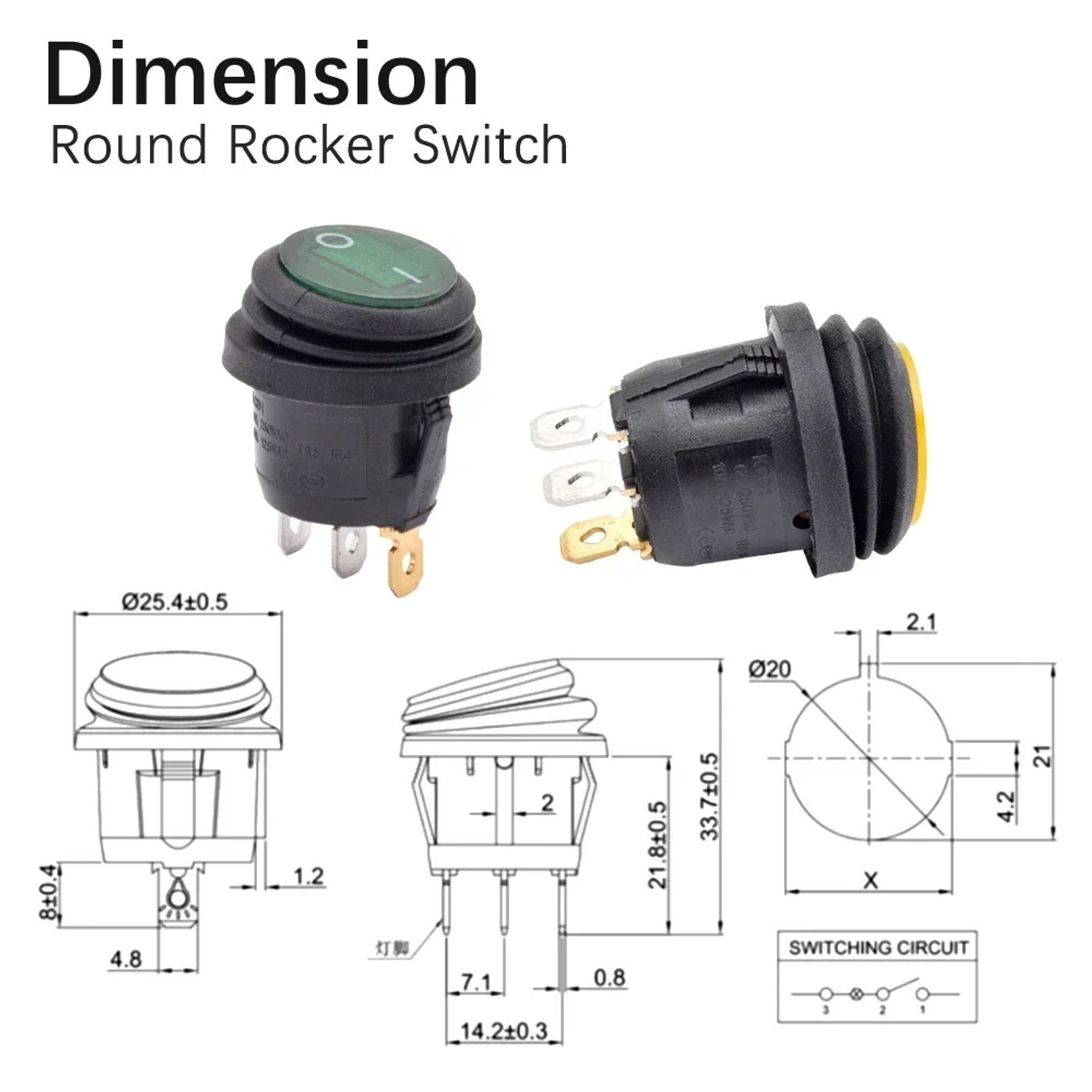

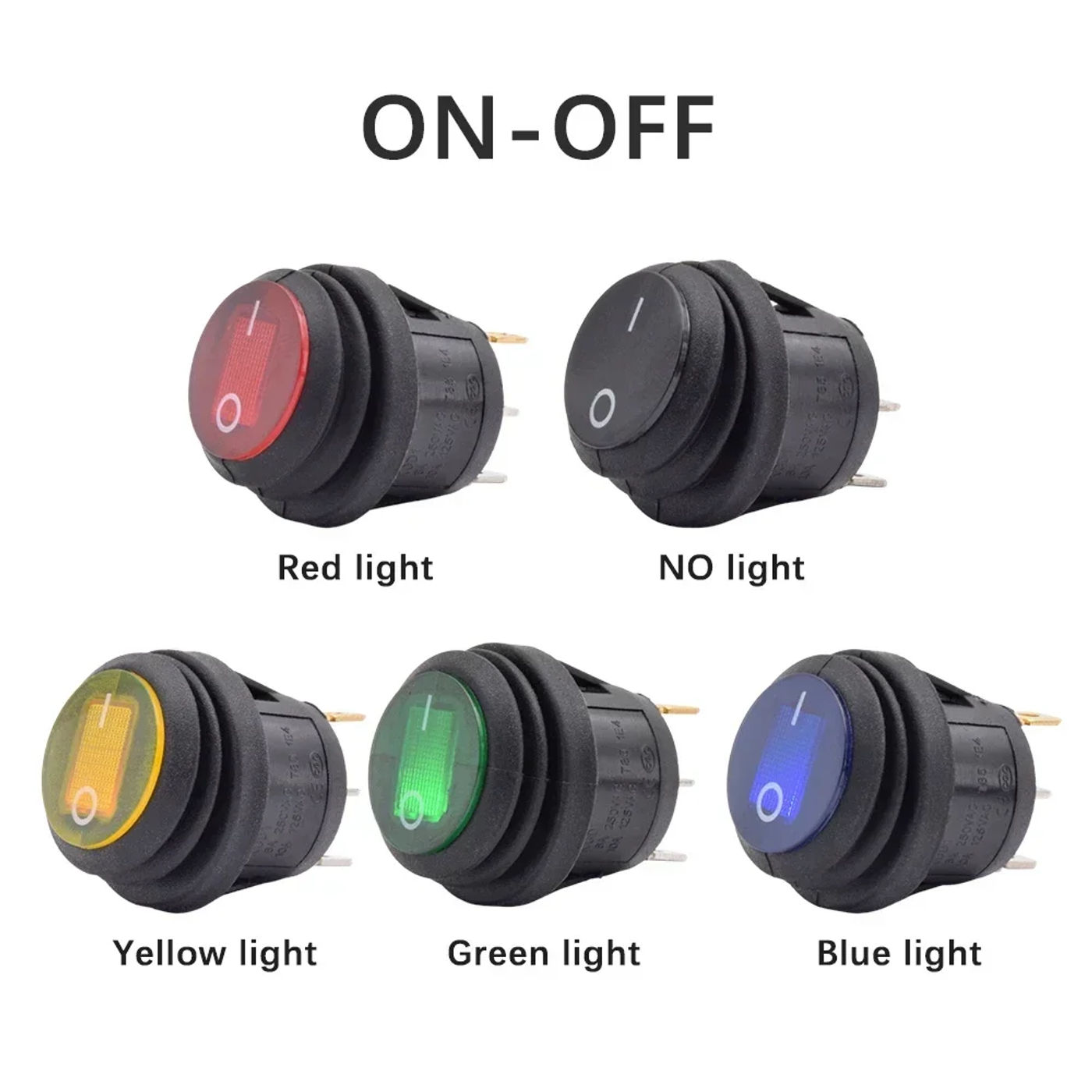

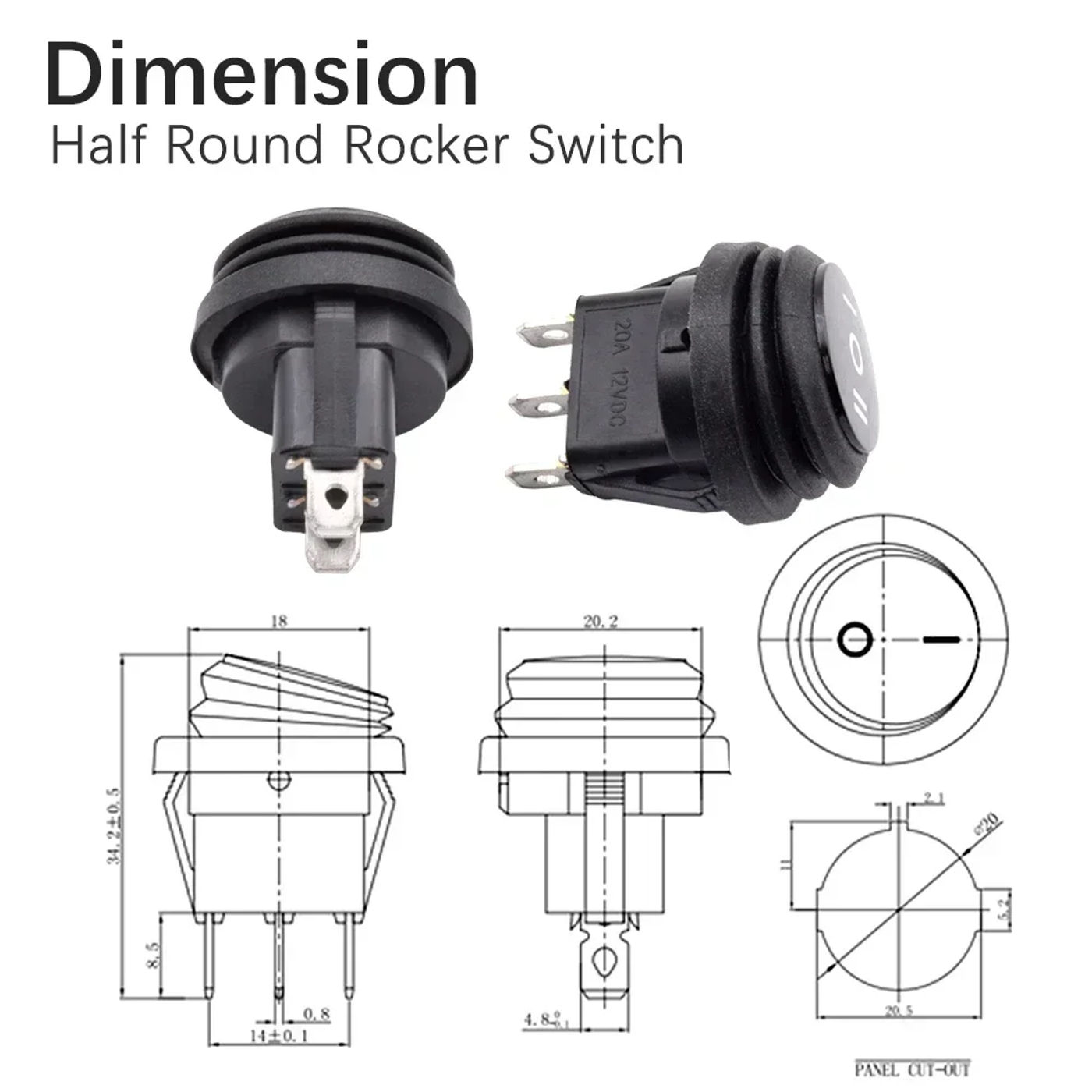

• Note:12-24V lamp is Led bulb, 220V lamp is neon bulb If desire Led for 220V lamp, please help to touch us YIDI 1pc Waterproof Round Rocker Switch 2 three Pin Position 12V 220V Red Green Blue Yellow LED Light 6A 250VAC ON OFF ON SPST Button Switch Specification: Mounting Hole Diameter: 20mm Rating: 6A/250VAC 10A/125VAC Protection Level: IP45 Insulated Resistance: ≥100MΩ Contact Resistance: ≤50mΩ Dielectric Strength: ≥1500A AC/5s Operation Temperature: T85 Electrical Life: ≥1000cycles Color: red/green/blue/yellow/black Light Voltage: 12-24V /110V /220V Switch Function: ON-OFF/ ON-OFF-ON Packing:1pc Customization is available If have some other needs, feel free to contact us Round Rocker Switch Dimension: Half Round Rocker Switch Dimension: Switch Circuit ON-OFF no mild (2 Pins) ON-OFF with light (3 Pins) ON-ON no mild (3 Pins) ON-OFF-ON no mild (3 Pins) Switch Function Illustration Code one zero one ON - OFF 102 ON - ON 103 ON OFF ON 111 (ON) - OFF 112 (ON) - ON 113 (ON) OFF ON 123 (ON) OFF (ON) ( ) ability Momentary

•
•
•
•
•
