Description

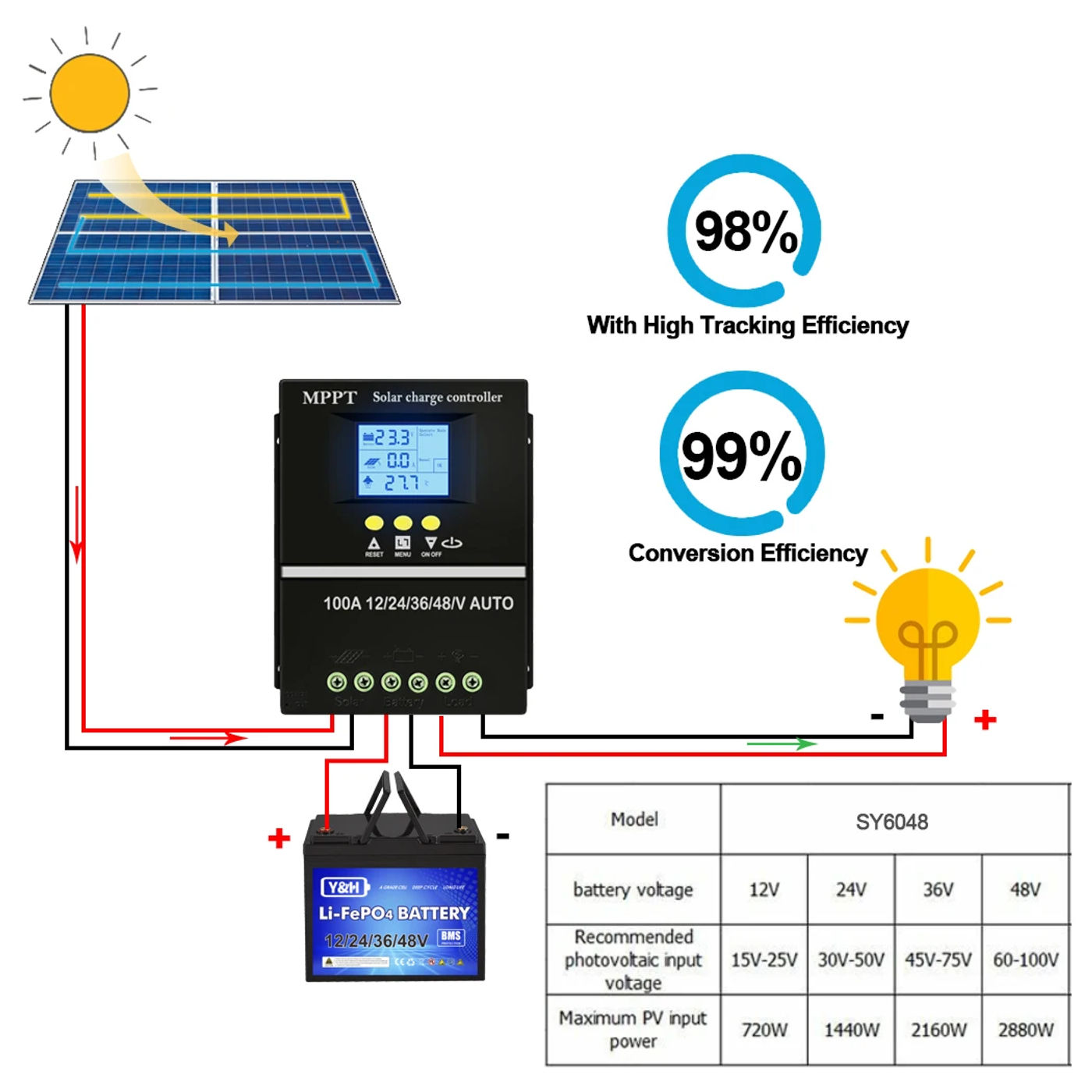

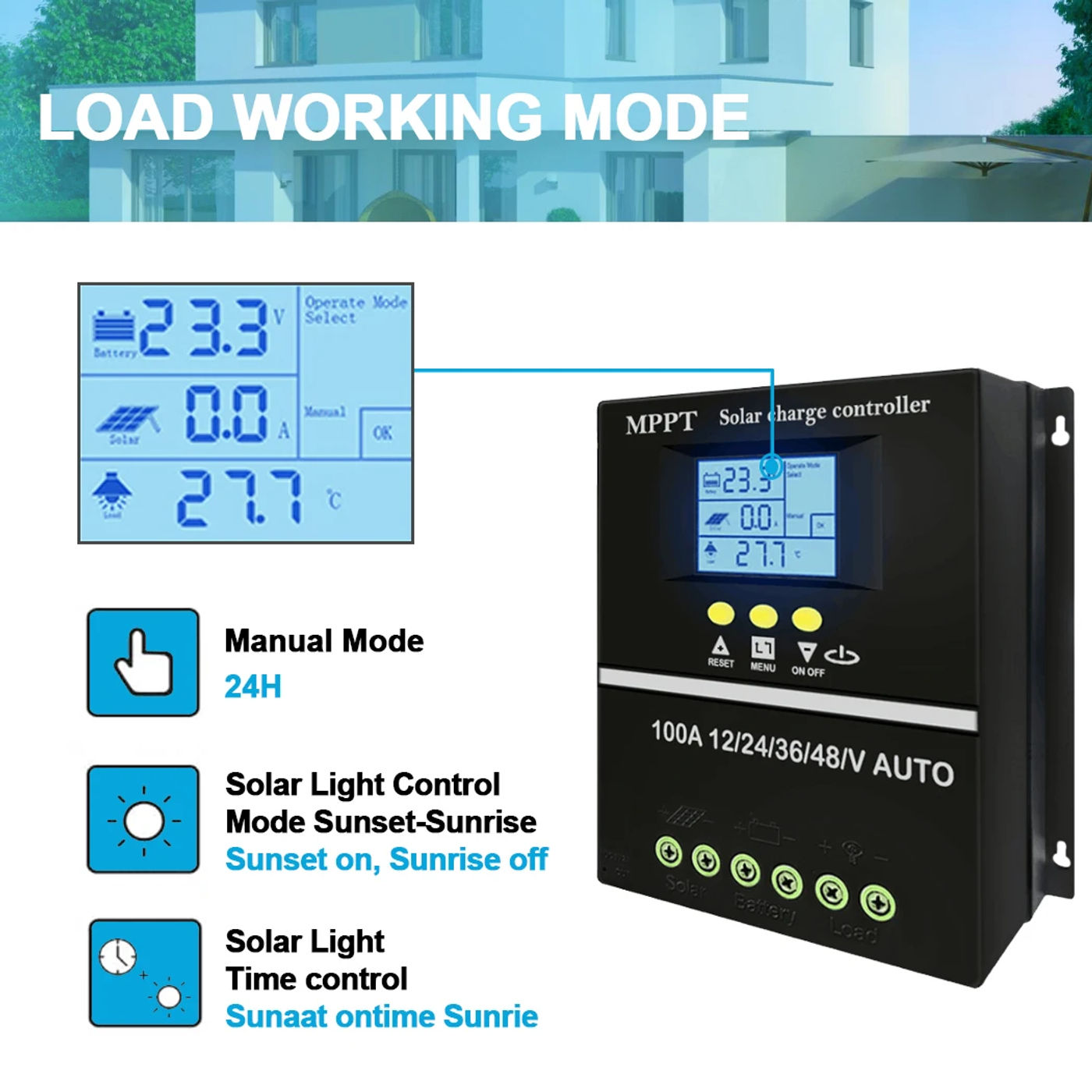

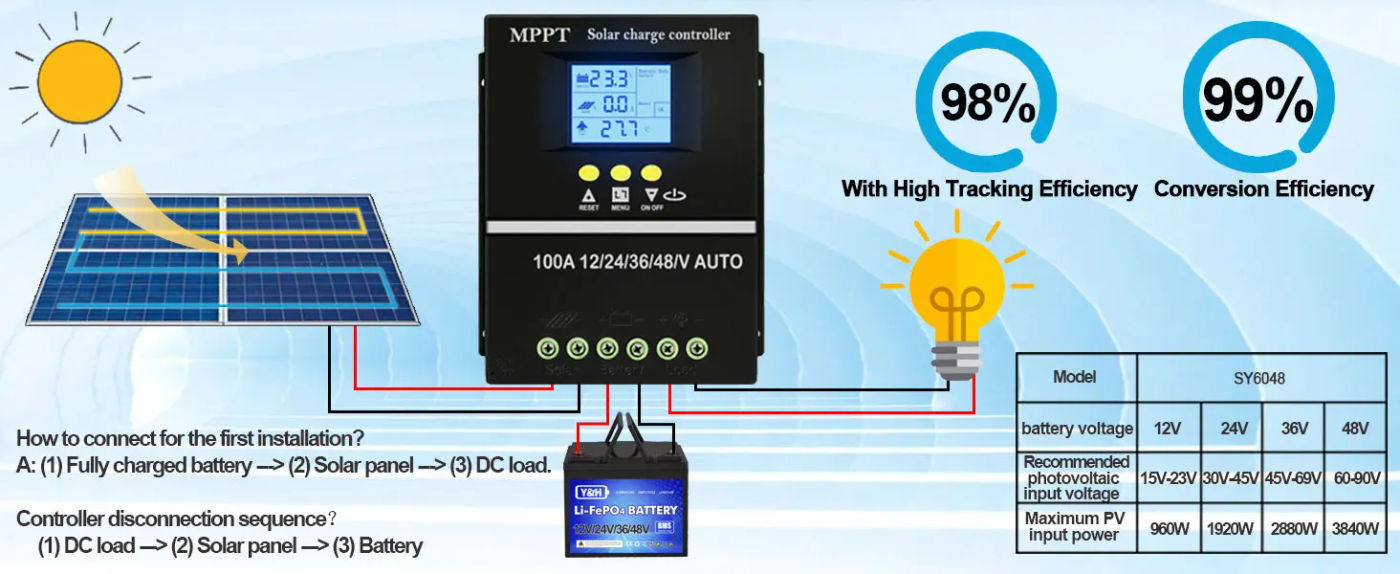

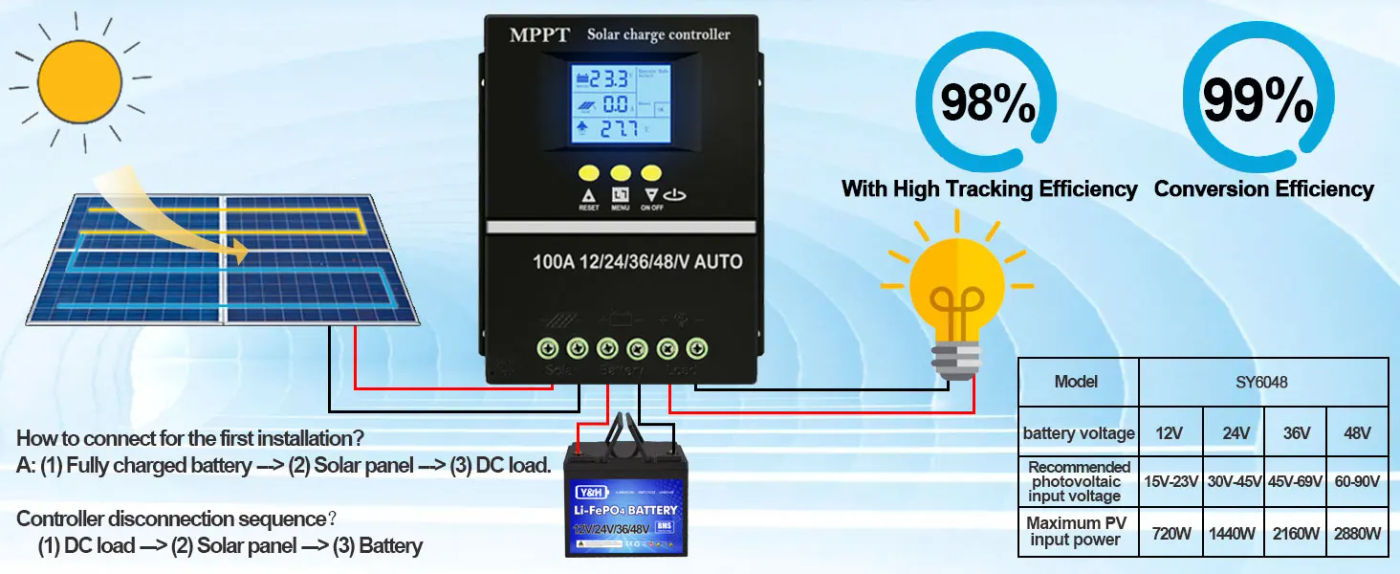

• Note:It is fine well suited MPPT + PWM Solar Controllers ,not 100 percent Ture MPPT Controller connected system: 1: Fully charged battery 2: PV formula 3: Load Controller disconnected system: 1: Load 2: PV system 3: Battery Description: solar charge controller with probably the most stepped forward MPPT management set of rules and the maximum strength point of the pv array could be soon tracked in any surroundings in order that it will get the utmost energy from the photo voltaic panel and tremendously improve the utilization of energy in solar method It can be used in verbal exchange base station, domestic energy delivery system, traffic light, solar avenue lamp, courtyard lamp systems, and so forth Feature: 1 Advanced MPPT most energy level tracking technology, the tracking performance is no less than 99% 2 The LCD is designed to dynamically demonstrate the operation data and dealing status of the equipment three Compatible with Seal, GEL, Flooded, LifePO4 battery charging four Dual USB 5V charging ports 5 12V/24V/36V/48V automated identification 6 Over-voltage protection 7 Over-current protection eight Over temperature protection nine 7 kinds of operating mode choice 10 Controller parameters exhibit (working mode, battery voltage, PV charging current, battery discharging current, product working temperature, postpone time); eleven Some of the controller parameters can be modified by way of the user to set and save 12, with backlight display 【7 types of working mode selection】 1 Charging mode: in any case, never discharge 2 Light control mode: when the controller detects nights, it'll delay ten minutes then start to discharge; when it detects daytime, it will put off ten minutes then quit discharging 3 Light and time postpone management mode: when the controller detects nights, it will postpone ten minutes then begin to discharge and count down, if the timer stops by zero, discharge will stop The longest length of put off is 23:59 four Universal management mode: beneath the trouble-free condition, it usually hold discharging five Manual control mode: it uses “▼” for discharging or no longer 6 Timing control mode: it opens or closes the release frequently 7 Test mode: it is the similar as mild and time postpone management mode but solely loses ten minutes of time postpone eight The controller nonetheless discharges below low voltage protection Touch-holding “▼” for five seconds, discharge continues to output But discharge is only stopped by way of hand Notice that this performance might damage the battery, be careful with it! Controller parameter: MODEL:SY6048 Battery Voltage:12V/24V/36V/48V Auto Charging Current:60A Maximum PV Input power:720W Max SolarInput(Voc):15-23V(12V Battery) Maximum PV Input power:1440W Max Solar Input(Voc): 30-45V(24V Battery) Maximum PV Input power:2160W Max Solar Input(Voc):45-69V(36V Battery) Maximum PV Input power:2880W Max Solar Input(Voc):60-90V(48V Battery) Controller parameter: MODEL:SY8048 Battery Voltage:12V/24V/36V/48V Auto Charging Current:80A Maximum PV Input power:960W Max Solar Input(Voc）:15-23V(12V Battery) Maximum PV Input power:1920W Max Solar Input(Voc）:30-45V(24V Battery) Maximum PV Input power:2880W Max Solar Input(Voc）:45-69V(36V Battery) Maximum PV Input power:3840W Max Solar Input(Voc）:60-90V(48V Battery) Controller parameter: MODEL:SY10048 Battery Voltage:12V/24V/36V/48V Auto Charging Current:100A Maximum PV Input power:1200W Max Solar Input(Voc）:15-23V(12V Battery) Maximum PV Input power:2400W Max Solar Input(Voc）: 30-45V(24V Battery) Maximum PV Input power:3600W Max Solar Input(Voc）:45-69V(36V Battery) Maximum PV Input power:4800W Max Solar Input(Voc）:60-90V(48V Battery)

•
•
•
•
•
