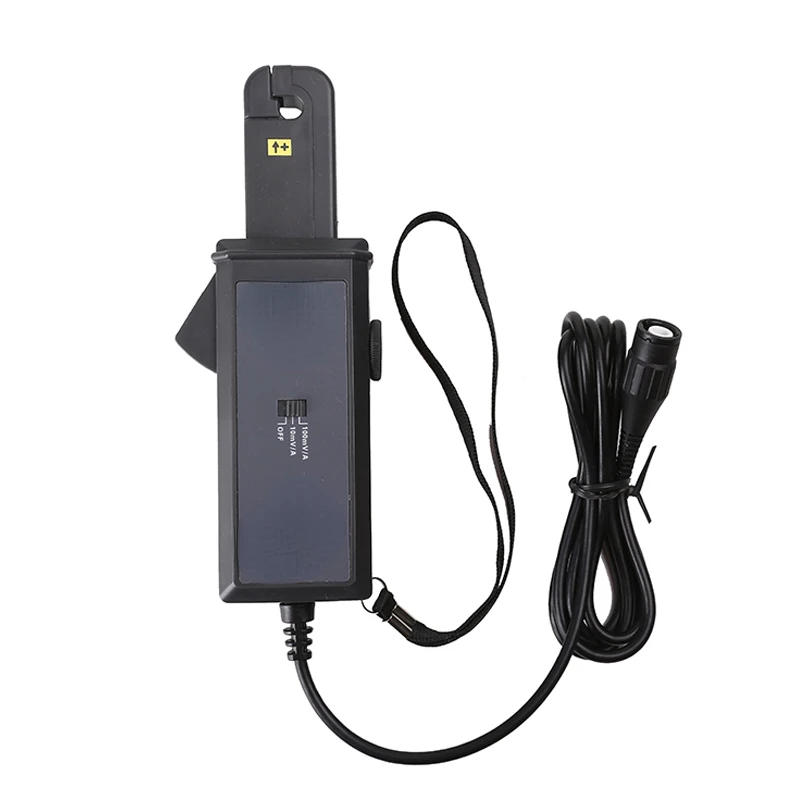

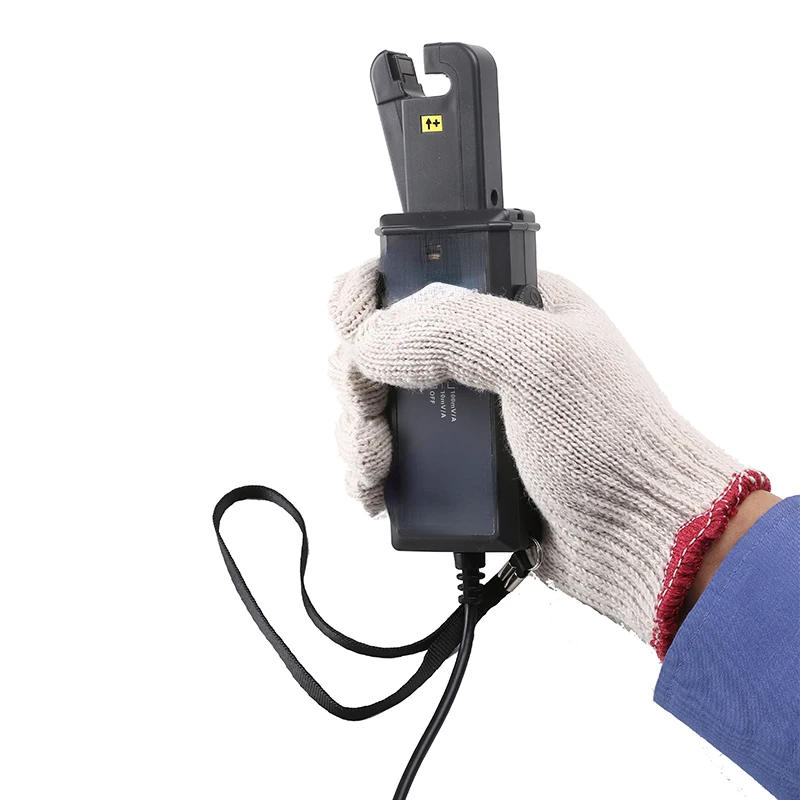

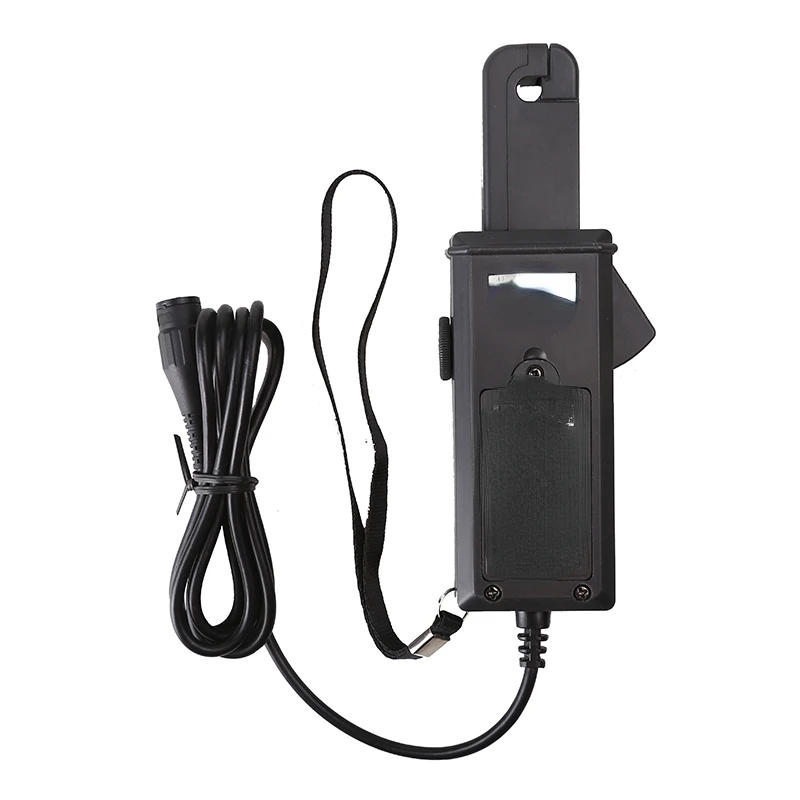

• Options:  007AD AC/DC Clamp Leakage Present Sensor is designed for measuring AC/DC present and leakage presentbeneath 600V line voltage, by adopting the newest CT know-how and digital combineknow-how. The small clamp is appropriate for line densely locations (electricalenergy measurement system, the excessivevelocity rail system, automotive circuit overhaul, and so forth), non-contact measurement, to make suresecure operation. It's small, with excessive precision, secureefficiency, may belinked with section detection analyzer, industrial managementgear, knowledge recorder, oscilloscope, electricalenergyhigh quality analyzer, excessive precision multi-meter. The sensor is broadlyutilized in these fields as electrical energy, communications, meteorology, railroad, automotivetrade, oilfield, development, measurement, scientific & analysisinstructing institutes, industrial and mining institutions.  Technical Specs                  Operate Measurement of AC/DC present, leakage present EnergyProvide Zn-Mn dry battery, 6RL61, 9V. Regularlyutilizing for 100 hours, connecting exteriorenergyprovidecan also beobtainable for very long timeutilizing. Check Mode Clip-on CT, non-contact measurement Clamp Dimension Φ7mm Enter Vary 0mA-60.0A AC/DC Output Voltage 10mV/A;100mV/A(corresponding) Output Vary 1V peak max Decision 1mA AC/DC Accuracy ±3percentFS(23C±5C, under 5percentrh) Section Error ≤3°(AC 50Hz/60Hz; 23C±2C) Calibration Regulate ZERO to calibrate, removeexteriorelectricalsubject interference Output Wire Core wire: signconstructive output; shielding wire: signfloor Lead size 2m Dimension LWH: 168mm×65mm×34mm Frequency AC: 45Hz-400Hz DC: DC-100kHz CheckPlace Examined wire within the jaw middle Line Voltage AC600V Weight 170g (Together with the battery) Working Present 5mA Working Temperature and Humidity -10C-50C,under 80percentrh Restrict Temperature Error -10C-0C and 40C-50C, inside 2percentrdg Storage Temperature and Humidity -10C-60C,under 70percentrh Insulating Energy AC3700V/rms (between the alloy of the clamp and the housing) Relevantsecurityguidelines IEC1010-1, IEC1010-2-032, Air pollutiondegree 2, CAT III(600V) Equipment Sensor: 1piece; ConsumerGuide/Guarantee card/ Certification: 1 copy

•
•
•
•
