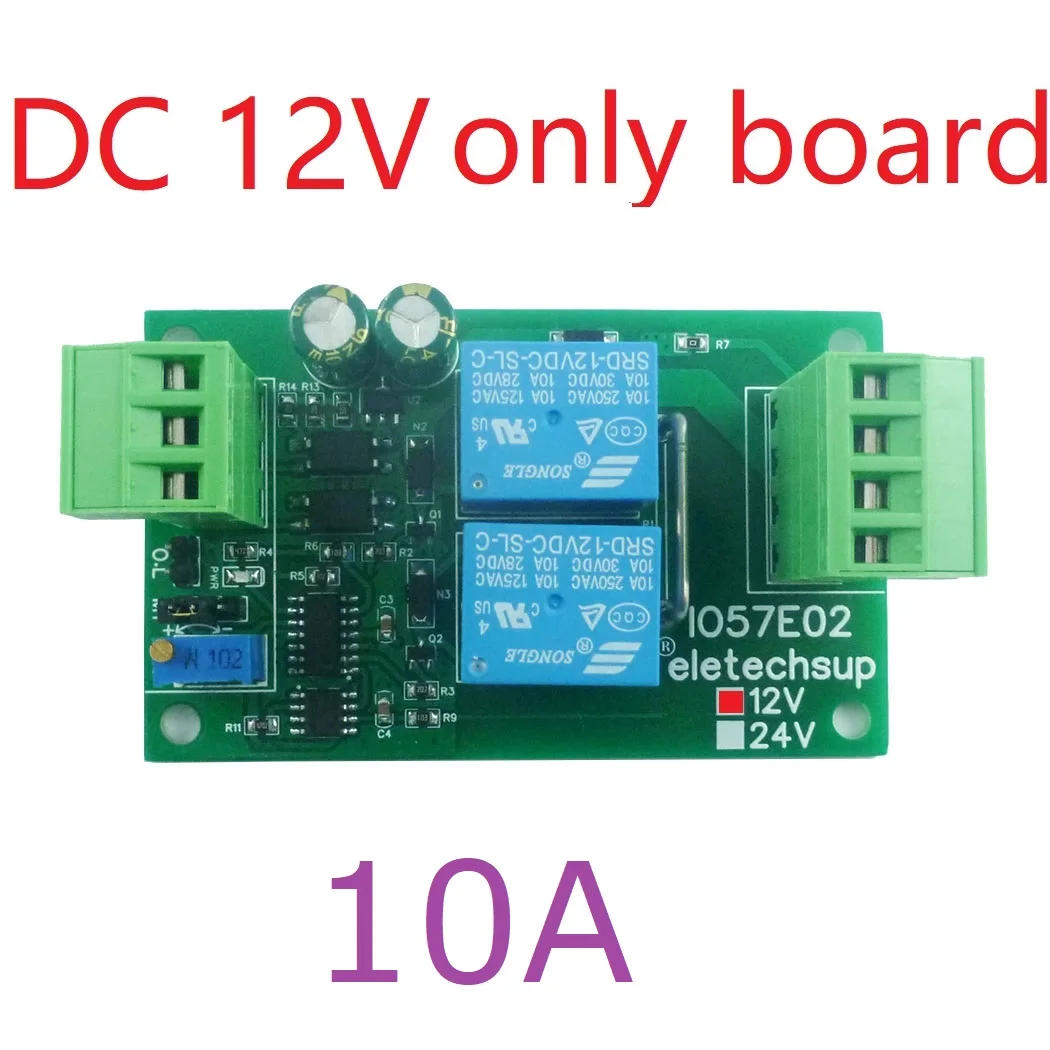

• Product Name:DC 12V 24V Brushed Motor Overload Overcurrent Short Circuit Protector Forward Reverse Controller Product Included: 1pcs DC 12V/24V 10A/20A/30A DC Motor Overcurrent Overload defense Product parameters: 10A Version: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC strength delivery strength ≥ motor energy x3); 2 Applicable motor: 12V/24V Brushed DC motor; 3 Maximum current: Short-term working current 10A, long-term operating recent 3A; 4 Protection current adjustment range: 0~10A; 5 Motor control: Forward, Reverse; 6 Working modes: 2 non-compulsory modes, Non-locking and self-locking; 7 Working recent (excluding motor): 40mA; eight Size: 97*50*32mm (with shell), 79*48*19mm (without shell); 9 Weight: eighty grams (with shell), 45,5g(without shell) 20A/30A Version: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC energy supply strength ≥ motor energy x3); 2 Applicable motor: 12V/24V Brushed DC motor; three Maximum current: Short-term working current 20A/30A, long-term operating latest 10A; four Protection recent adjustment range: 0~20A/0~30A; five Motor control: Forward, Reverse; 6 Working modes: 2 non-obligatory modes, Non-locking and self-locking; 7 Working current (excluding motor): 5-70mA; eight Size: 87*58*25mm; nine Weight: 80 grams Please touch me for detailed directions Pin Description M- : Motor- M+:Motor+ VCC:Power Supply+ GND:Power Supply- COM:Control signal usual terminal(GND) FWD:Forward control REV:Reverse management LED :Power supply indicator O : Overload sign output MODE:Momentary/Self-locking mode selection ADJ :Overload latest regulation Application Motor Overload Protection Motor Overcurrent Protection Motor Short Circuit Protection LED Overcurrent Protection

•
•
•
•
•
