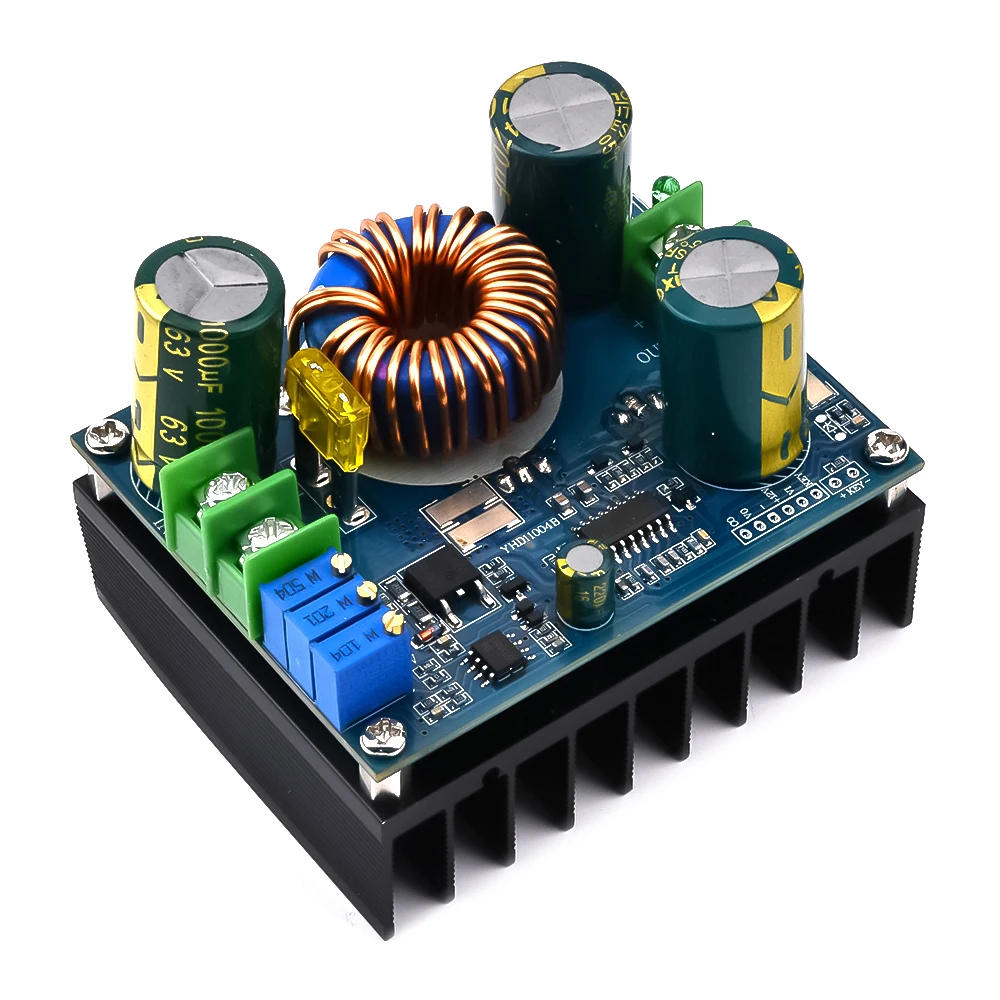

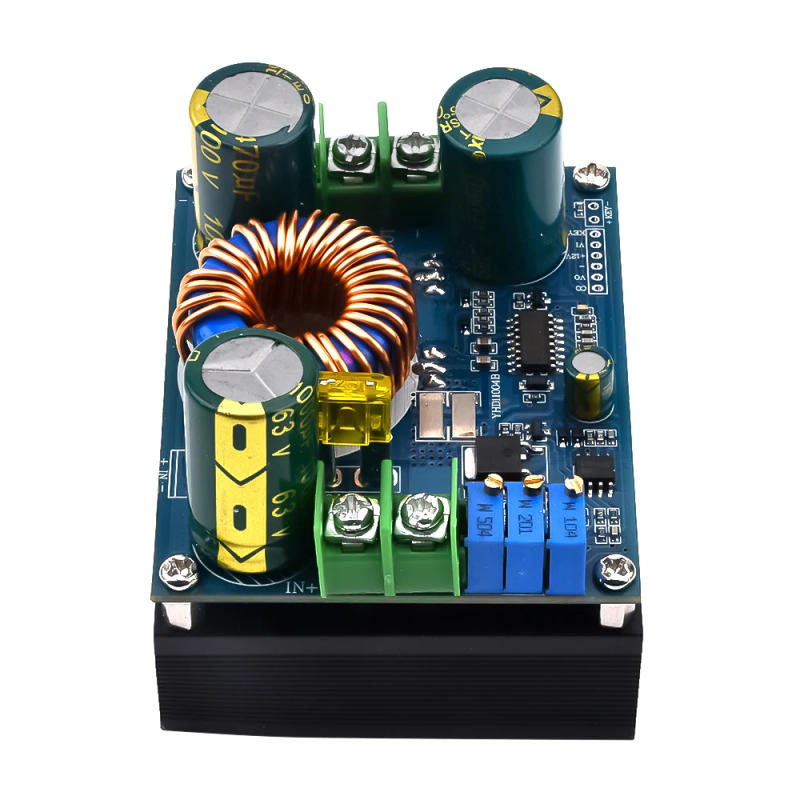

• 12A 600W MPPT Solar Panel Charge Regulator Controller Board Lithium Battery Charging Board DC10-60V Solar Charge Controller Product Description: 600W MPPT increase charging module parameters Maximum energy for photo voltaic panel use: <600W (18V photo voltaic panel <200w, 36v photo voltaic panel <400w, lengthy operating hours, please go away a margin for use, eavesdrop on module warmth dissipation) Input voltage: DC10-60V Input current: 12A MAX Input overcurrent protection: 12A MAX will robotically lower the output voltage if exceeded Output voltage: DC10-85V steplessly adjustable Output current: 0 steplessly adjustable (the larger the output current, the greater the warmth generation) MPPT voltage adjustable range: 10-60V steplessly adjustable Operating frequency: 200KHz Working efficiency: as much as 94% performance related to input and output voltage and working current Applicable battery type: battery, polymer battery, lithium iron, and many others (according to the battery tuned output voltage and charging current size) input Anti-reverse connection protection: no Output anti-reverse price protection: Yes Short circuit protection: 15A fuse, (module output cannot be immediately short-circuited, it's going to burn the fuse or strength tube!) Working temperature: -20~+85℃Please upload cooling fan when the temperature is excessive Dimension: 76*60*56mm Weight: 210g Note: The precise parameters of voltage and current might deviate due to variations in the parameters of the elements MPPT increase charging module parameter adjustment steps 1, the module input linked to the solar panel, to ensure that there is the sun to shine on the panel 2, the module output no load, multimeter voltage equipment connected to the module output, in line with the battery complete when the According to the voltage price when the battery is complete (refer to the label on the again of the charger), regulate the CV potentiometer to the desired voltage Note: If the module is not boosted, please alter the MPPT potentiometer clockwise via 20 turns earlier than adjusting the output voltage three Connect the battery to the output of the module, then join the multimeter voltage tools to the enter of the module Adjust the MPPT potentiometer till the multimeter shows a voltage near to the utmost power level voltage of the photo voltaic panel check with the maximum energy level voltage at the label in the back of the solar panel Generally slightly lower than the indicated voltage will give the next charging current, to illustrate an 18V plate with an MPPT cost set at 16-17V will give a higher recent than one set at 18V You also can string in an ammeter and adjust the MPPT potentiometer again and forth to forestall the charging latest at the maximum level 4, if you would like to use a smaller latest charging (for example, the photo voltaic panel strength is relatively large, and the battery potential is comparatively small) In the case of high sunlight, put the multimeter in collection between the MPPT charger and the battery and adjust the CC potentiometer to the necessary latest Note: 1 The potentiometer used to regulate the parameters is multi-turn, with 28 turns from minimal to most The voltage or latest increases when adjusted clockwise and reduces counterclockwise 2 If the output voltage of the charger can't be adjusted in the presence of the sun, or if the battery is not charged when linked to the charger If the battery does not have charging current, please turn the MPPT potentiometer clockwise for more than 20 turns and then repeat step 3 3, MPPT charging module input related to the battery or switching power delivery charging or do booster module software When utilizing Please regulate the cC potentiometer to limit the output current per the output voltage to stop over-powering the charger, as over-powering will result in high charger temperature or burn the power tube Packing list: 1*600W MPPT Solar Boost Controller LTC1871

•
•
•
•
•
