Preces apraksts

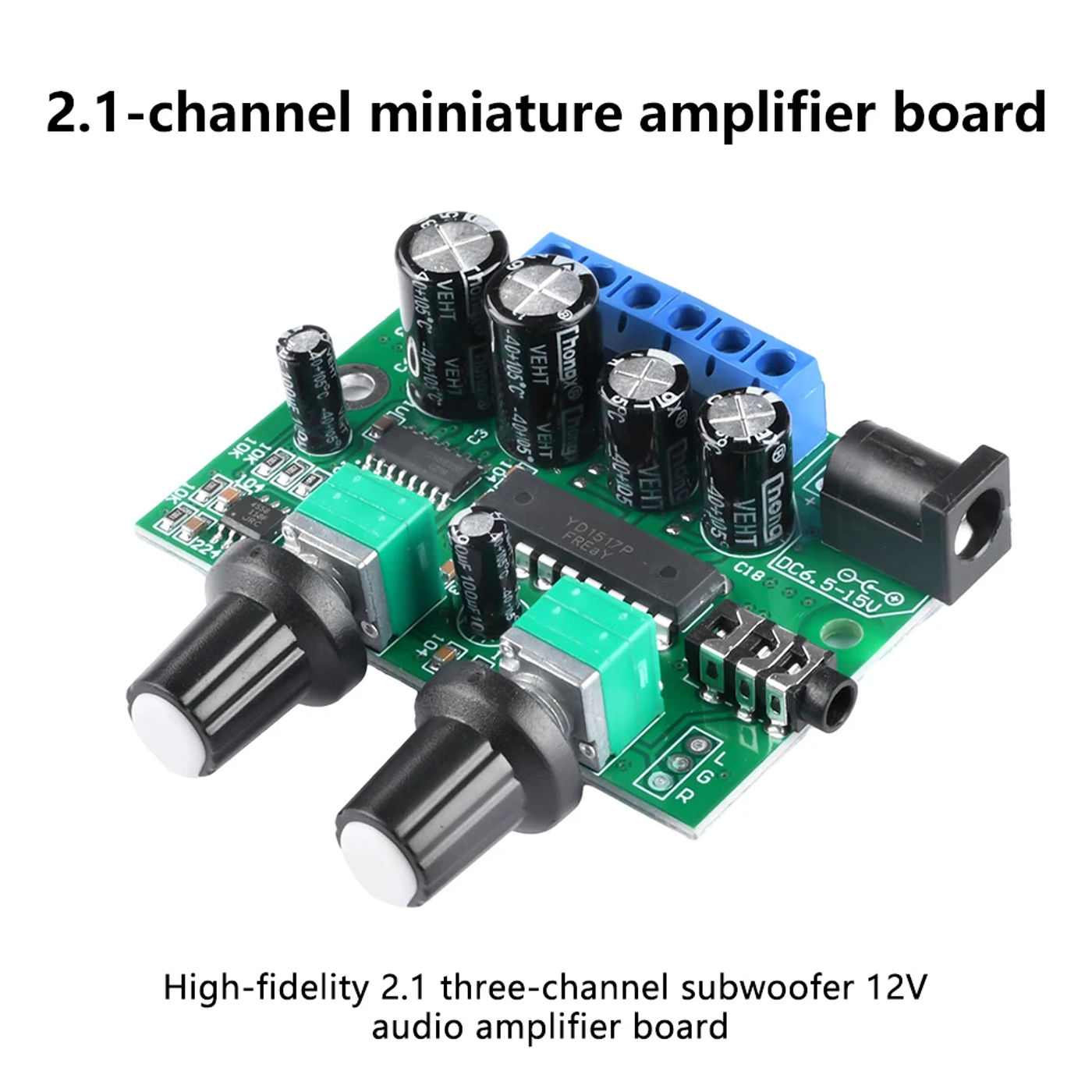

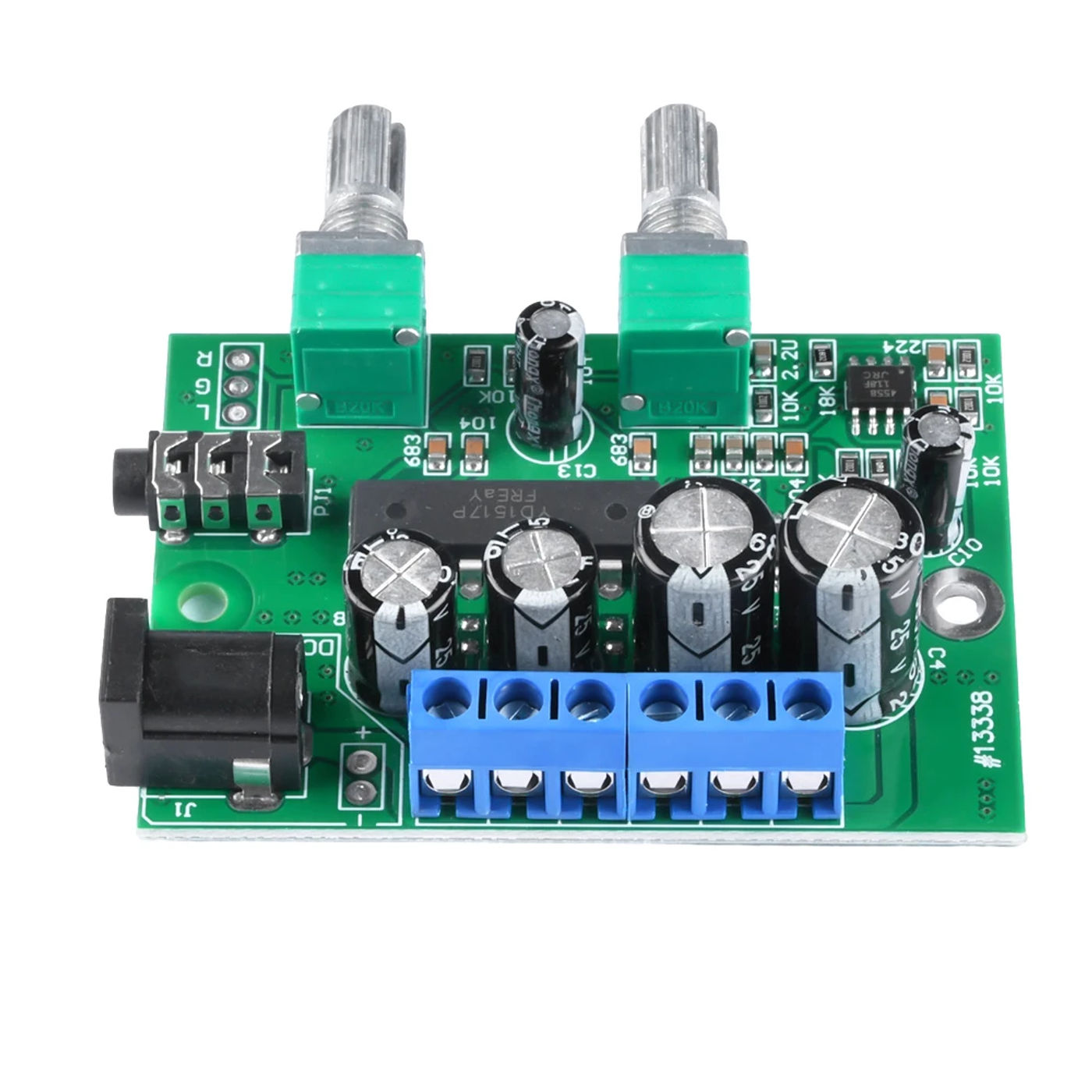

• Product features: 1 Use nice materials with guaranteed quality 2 PCB circuit board length reduction, more lifelike factor layout, and elevated product service lifestyles 3 The left and right channels use the low-power audiophile grade audio dedicated chip TDA1517P as the output stage, surely offering wonderful results four Stable functionality and excessive constancy 2 Three channel extremely low bass 12V audio amplifier board five Wide utility range, small quantity could be easily embedded in assorted events Parameters: Power supply: DC6 (depending at the required output power), power adapter, change mode energy supply, battery could be used, and it is suggested to use a recent of 3A or above Bass output power: maximum 25W, it's endorsed to use a 4-6 inch, 4-6 ohm, and 20-50W subwoofer Left and right channel output power: 6W+6W, it is suggested to use a 2-4 inch, 4-8 ohm, and 3-25W complete frequency speaker The above strength requirements require a power delivery of round 13 PCB material: FR-4 fiberglass board, thickness: 1 Potentiometer axis distance: 24mm The diameter of the potentiometer mounting hole must be 7mm Input interface: three socket Product List: Power amplifier board * 1 Knob * 2 Nut * 2 Shim * 2

•
•
•
•
•
