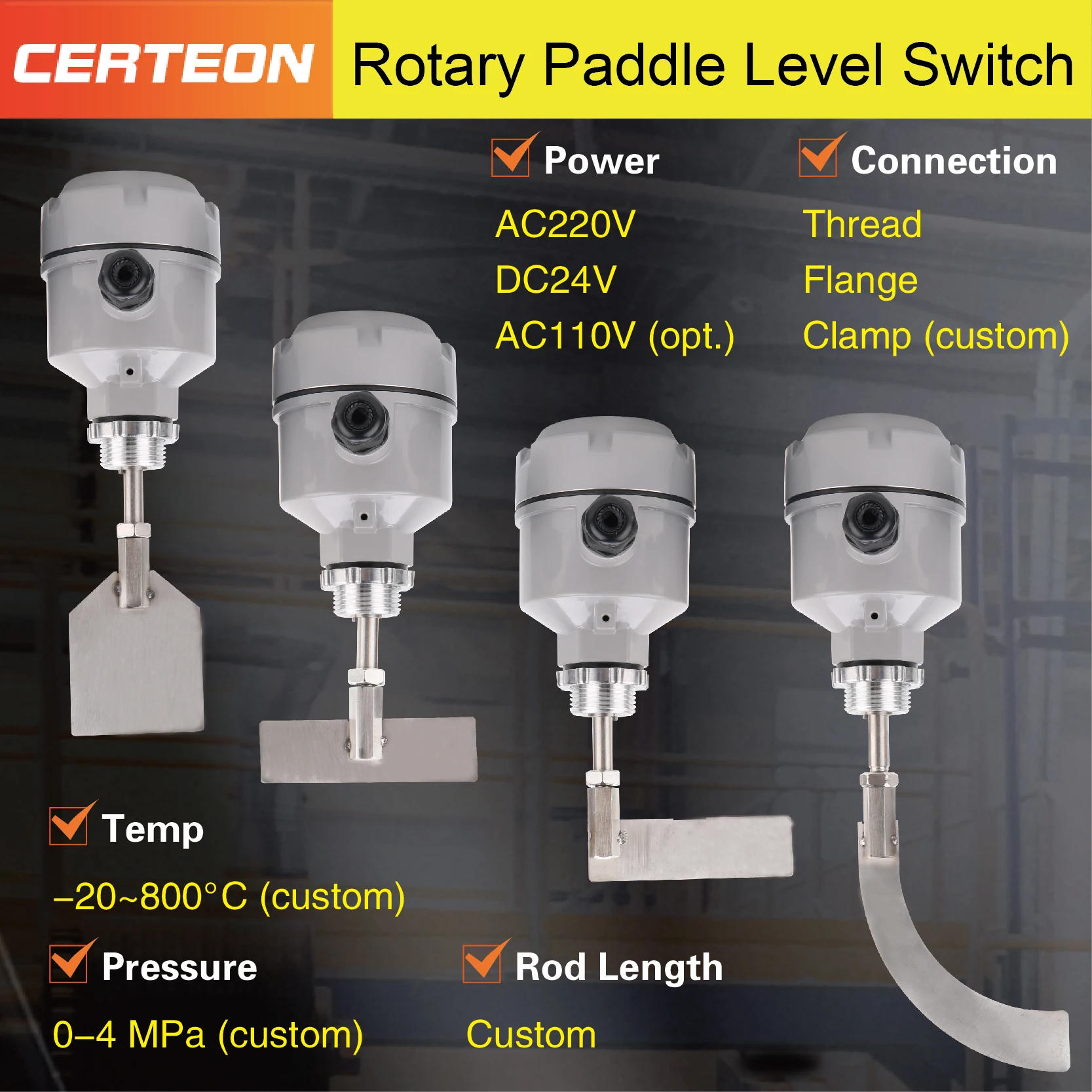

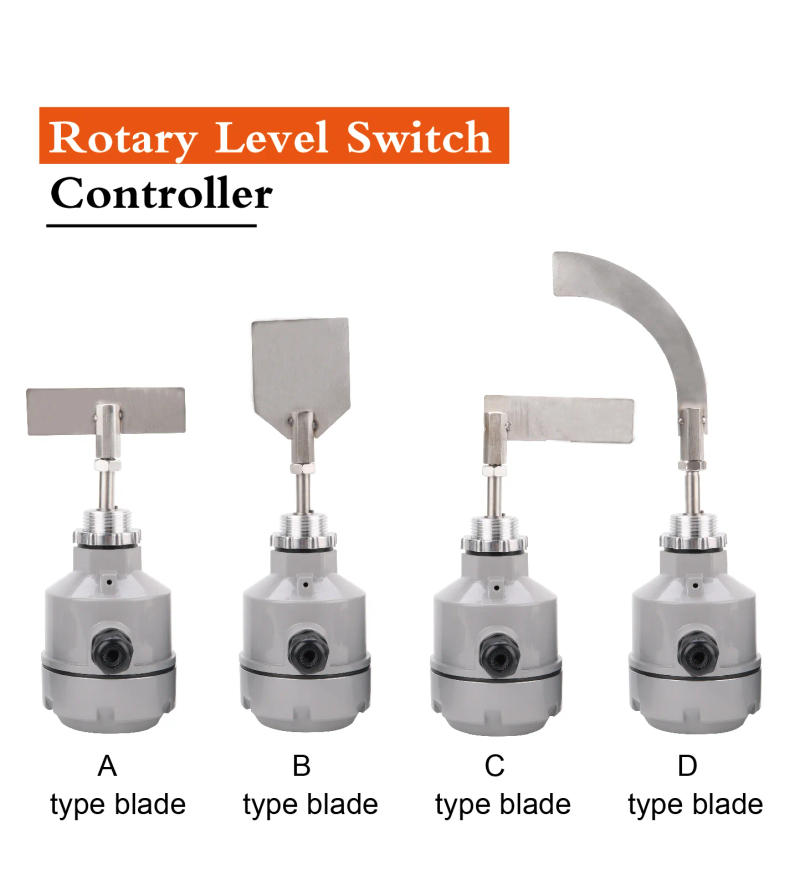

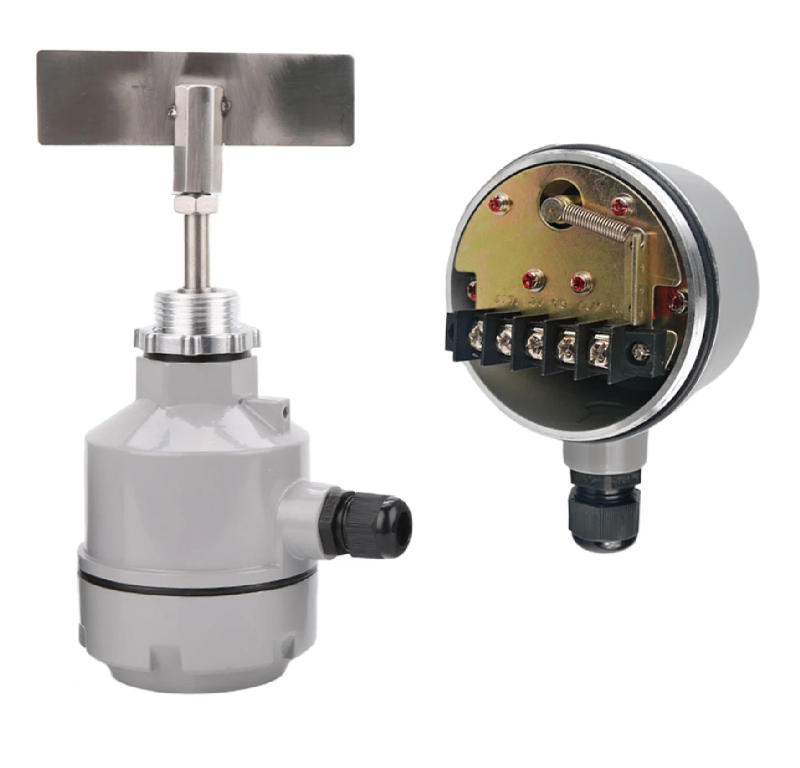

• Our default configuration: Power supply: AC220V, Connection type: G1 thread, Paddle type: Selectable as per requirement, Paddle and probe material: 304 stainless steel, Temperature tolerance range: -20 to 80°C Working Principle: Rotary Level Switch uses a power shaft connected to a grab When no longer in contact with,he material, the motor keeps working normally, and when the blade touches the material,it types a resistance to forestall the rotating mechanism from rotating Under the action of resistance touch break， bring to a halt the motor energy to stop the electrode rotation, and output a contact signal When the fabric drops the blade resistance disappears, the motor resumes rotation Rotary Level Switch is specially designed to monitor the level of solids in silos， bins and chutes, and to lessen overflow, material waste and downtime via preventing silo overflow chute blockage and silo emptying Parameters: 1 Power supply: 220VAC(Default), 110VAC, 24VDC, 24VAC 2 Power consumption: 4W three Contact capacity: 5A/250VAC SPDT four blade speed: 1r (rpm) five Torque: (0~1)kgcm 6 Material density: ≥0 g/cm 7 Working temperature: (-20~80)°C (the best possible temperature can attain 300°C area to customization) eight Insulation resistance: ≥100MQ (500VDC) 9 Dielectric strength: 1500VAC×1min 10 Interface: M20×1 5、FAQ Q1: What are the functions of a Rotary Paddle Level Switch? A1: Rotary Paddle Level Switches are broadly used in industries for tracking bulk solids, including supplies equivalent to powders, granules, and grains They are generally utilized in silos, hoppers, and garage tanks to detect material presence and prevent overfilling or emptying Q2: How does the Rotary Paddle Level Switch work? A2: The change operates by means of rotating a paddle in the materials When the cloth point reaches the paddle, the resistance attributable to the solid substance halts the rotation, triggering a signal for point detection Q3: What supplies fit with the Rotary Paddle Level Switch? A3: This switch is suitable for different dry bulk materials, adding powders, small particles, and non-cohesive granular solids It is good for non-corrosive and free-flowing supplies Q4: Can the Rotary Paddle Level Switch be customized? A4: Yes, customization is available for paddle size, material, and installation kinds to guarantee compatibility with particular supplies and application environments Please touch us for extra particulars

•
•
•
•
•
