This meter is integrated the operate of thermal imager and multimeter, with 2 shade display, with 320*480 high resolution, which makes it is going to relevant to numerous measurements under advanced environment Support the multimeter applications of AC/DCvoltage, resistance, capacitance, diode measurement, and circuit on-off check With excessive accuracy, high speed, excessive sensitivity, and may be widely used in trying out and debugging work within the fields of electronics, communications, computers, etc, is a pleasant choice for electricians and maintenance technicians

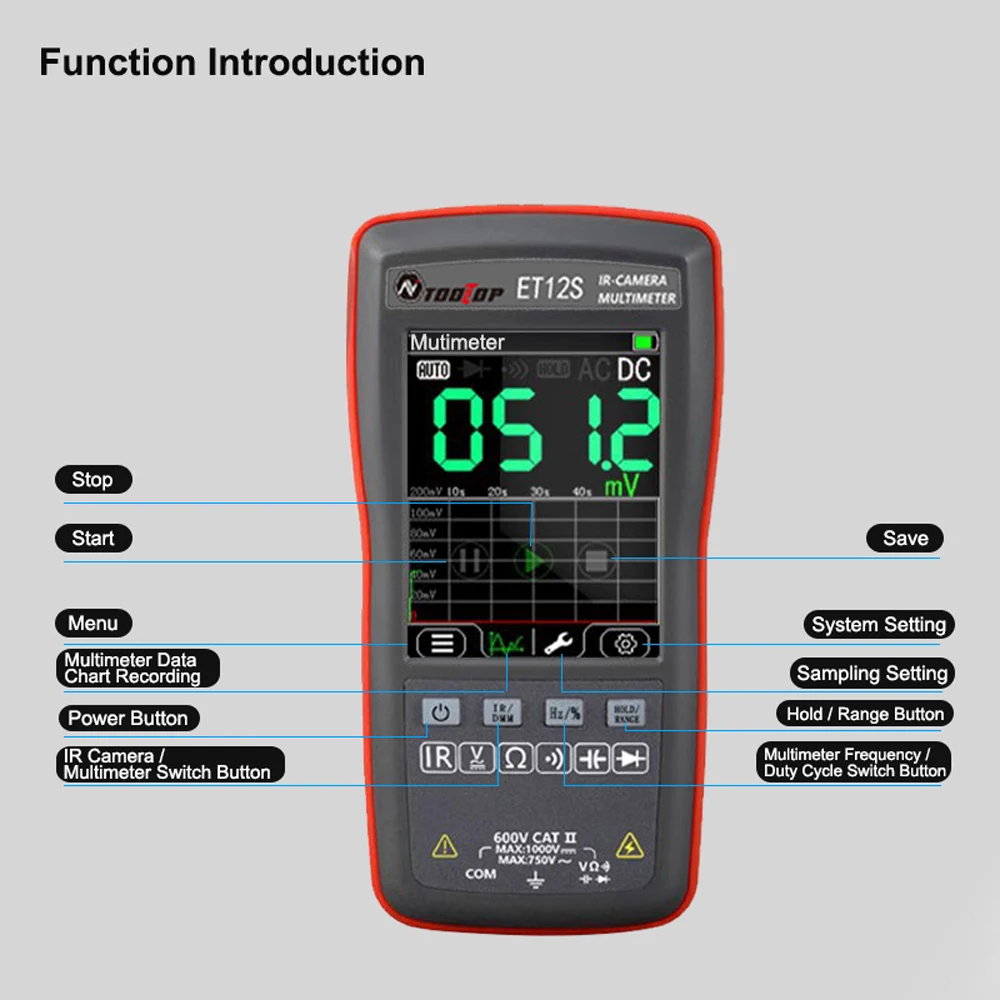

Features:

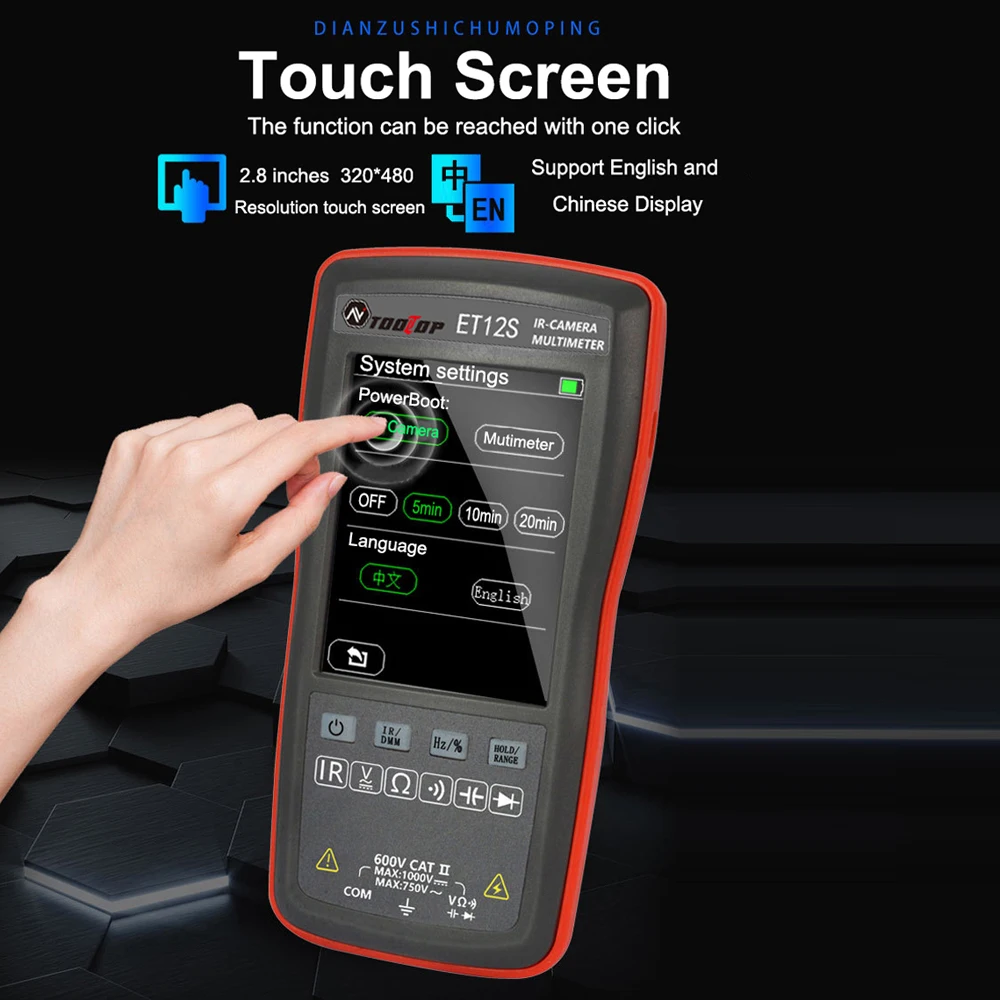

【2 Color Display】: 2 shade display, with 320*480 high resolution, resistive touchscreen operation, with one click on function
【2in1 Design】: 2in1 design, hand held thermal imager with high thermal imaging pixel, 6000 counts electronic multimeter, assist thermal imager and multimeter dual modes switching

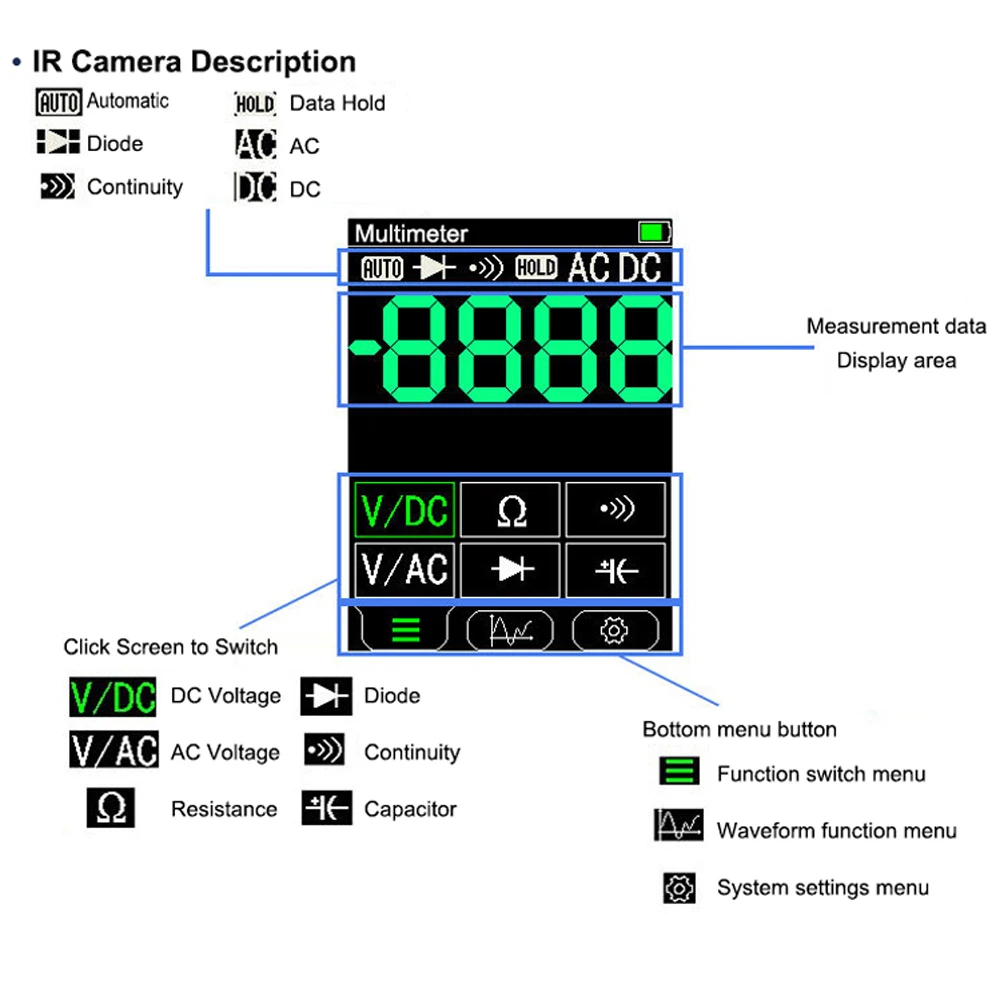

【Multifunctional Design】: Support AC/DCvoltage, resistance, capacitance, diode measurement, and assist circuit on-off check Both Chinese and English could be set reckoning on your studying preference
【PC Connection】: Under USB mode, it is probable to move domestically kept thermal imaging images and the multimeter mensurement information recording via information chart And displayed on the computers by way of PC software for more handy to back up and analyze
【Battery Management】: It is integrated 850mAh li-thium battery which is supporting USB charging, with automated screen turn off and automatic power off functions
【Wide Applications】: With excessive accuracy, high speed, high sensitivity, and multiple dimension modes, and can be broadly utilized in checking out and debugging work in the fields of electronics, communications, computers, and so on
Specifications:
Name: Thermal Imager Multimeter
Model: ET11S, ET12S (optional)
Thermal Imager Parameters:
Sensor: Uncooled focal plane
lmage capture frequency:16Hz(ET11S) ; 20Hz(ET12S)
Thermal imaging pixel: 24*32(ET11S) ; 90*120(ET12S)
FOV:55°(H)*35°(V)
Emissivity: zero adjustable
Measuring ranges:-40~ +300℃(ET11S); -20~ +400℃(ET12S)
Mode:automatic gain
Temperature dimension error:>0℃:+2℃/+2%; ≤0℃: +5℃/+5%
Display temperature accuracy:0°C/0°F
Multimeter Parameters:
Maximum enter voltage:1000VDC
Maximum AC enter voltage:750V
Maximum measured resistance:40MΩ
Maximum measuring resistance of capacitance:100uF
Duty cycle dimension ranges:0%-99%
Diode measuring ranges:0V-1
Maximum resistance of on-off detection:30Ω
Counts:
4000 counts, Refreshes:3 instances consistent with moment (ET11S)
4000counts, Refreshes:6 instances per moment (ET12S)
Other Parameters:
Display screen: 2 inches 320*480
Touchscreen: Resistive touchscreen
USB interface: TYPE-C
Storage Capacity: 3
Imaging Format: BMP
Battery: 1 * built-in 850mAh li-thium battery
Storage temperature: -20~60℃(-4~140℉)
Working temperature: 0-50℃(32-122℉)
Working humidity: <85%RH(non condensing)
Item size: 134 * sixty nine * 25mm / five * 2 * 0
Item weight: 125g / four
Package size:
ET11S: 160 * a hundred * 50mm / 6 * three * 1
ET12S: 185 * a hundred and sixty * 40mm / 7 * 6 * 1
Package weight:
ET11S: 150g / 5
ET12S: 270g / nine

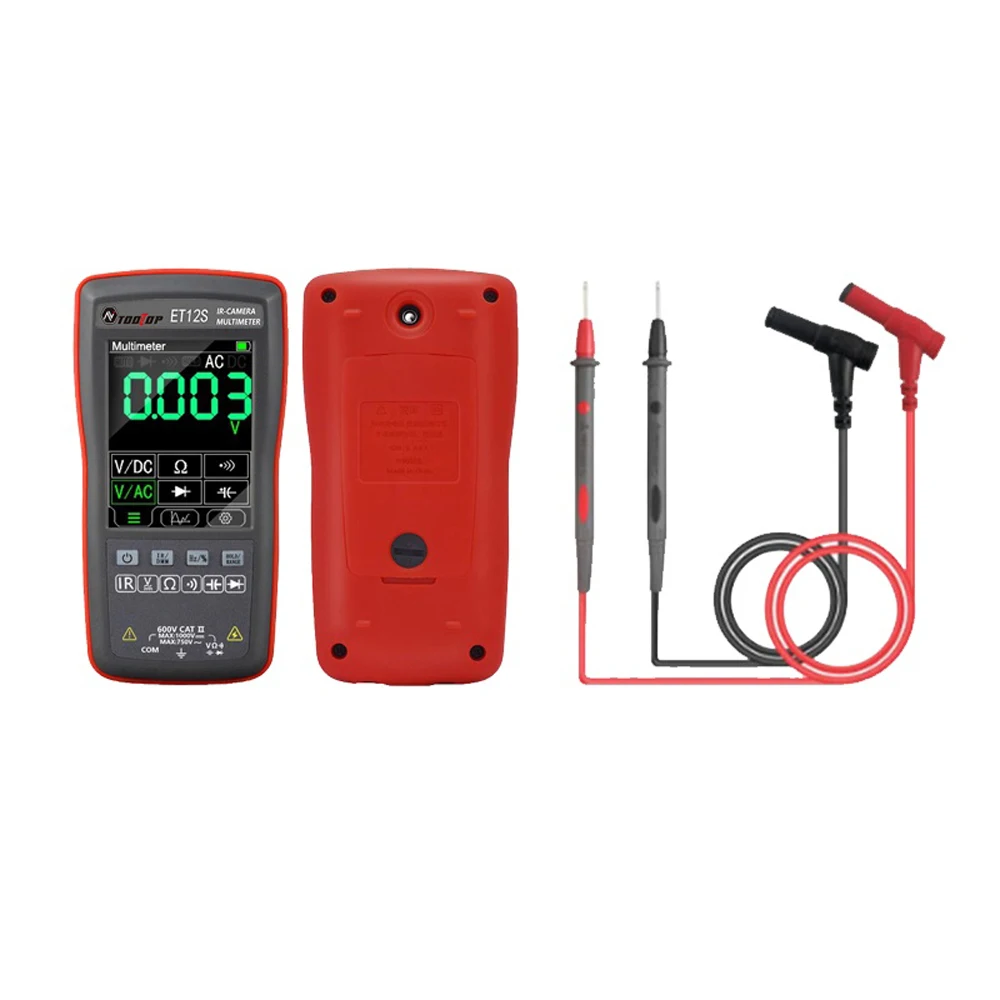

Packing List:
1 * Thermal Imager Multimeter
1 * One Pair Test Leads
1 * User Manual
