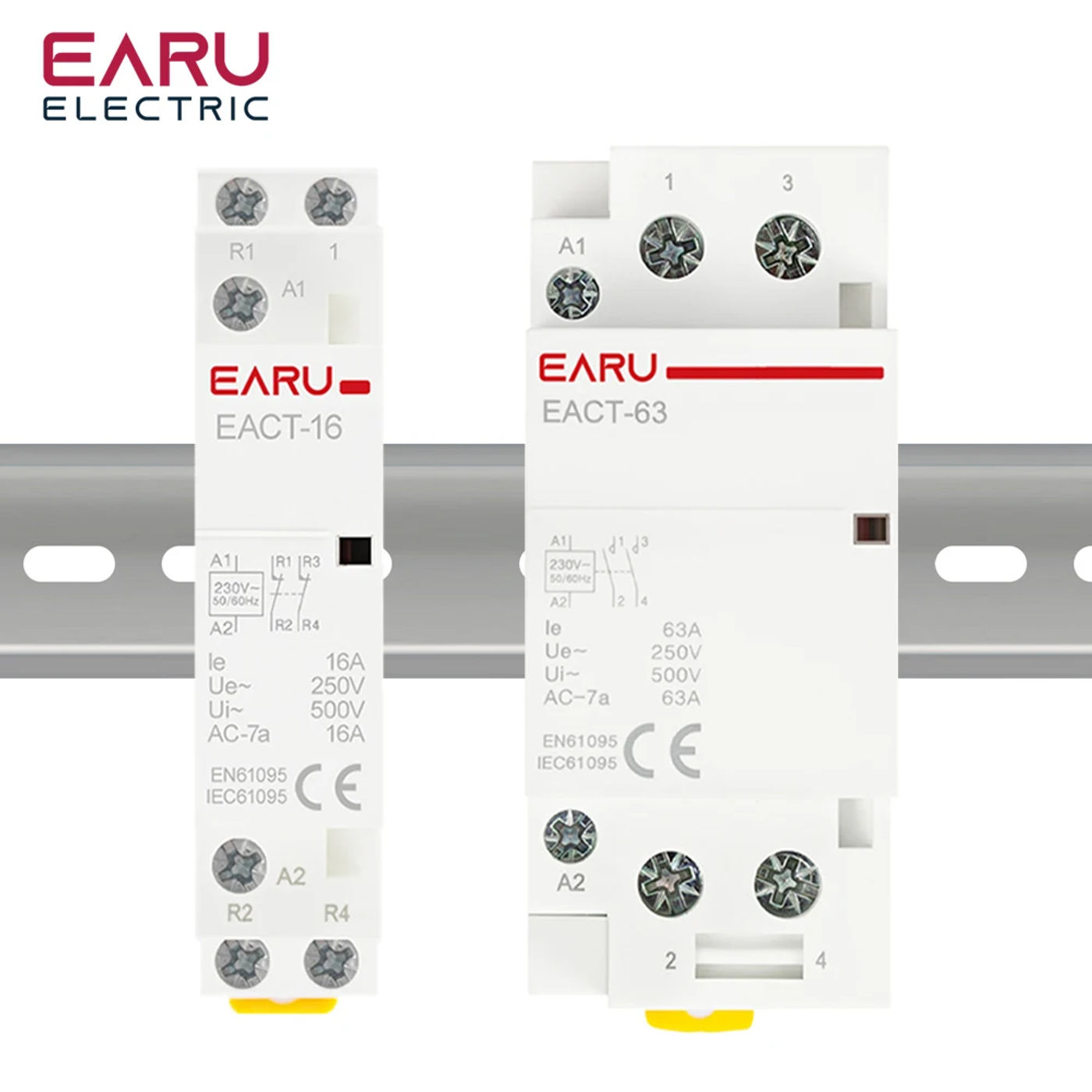

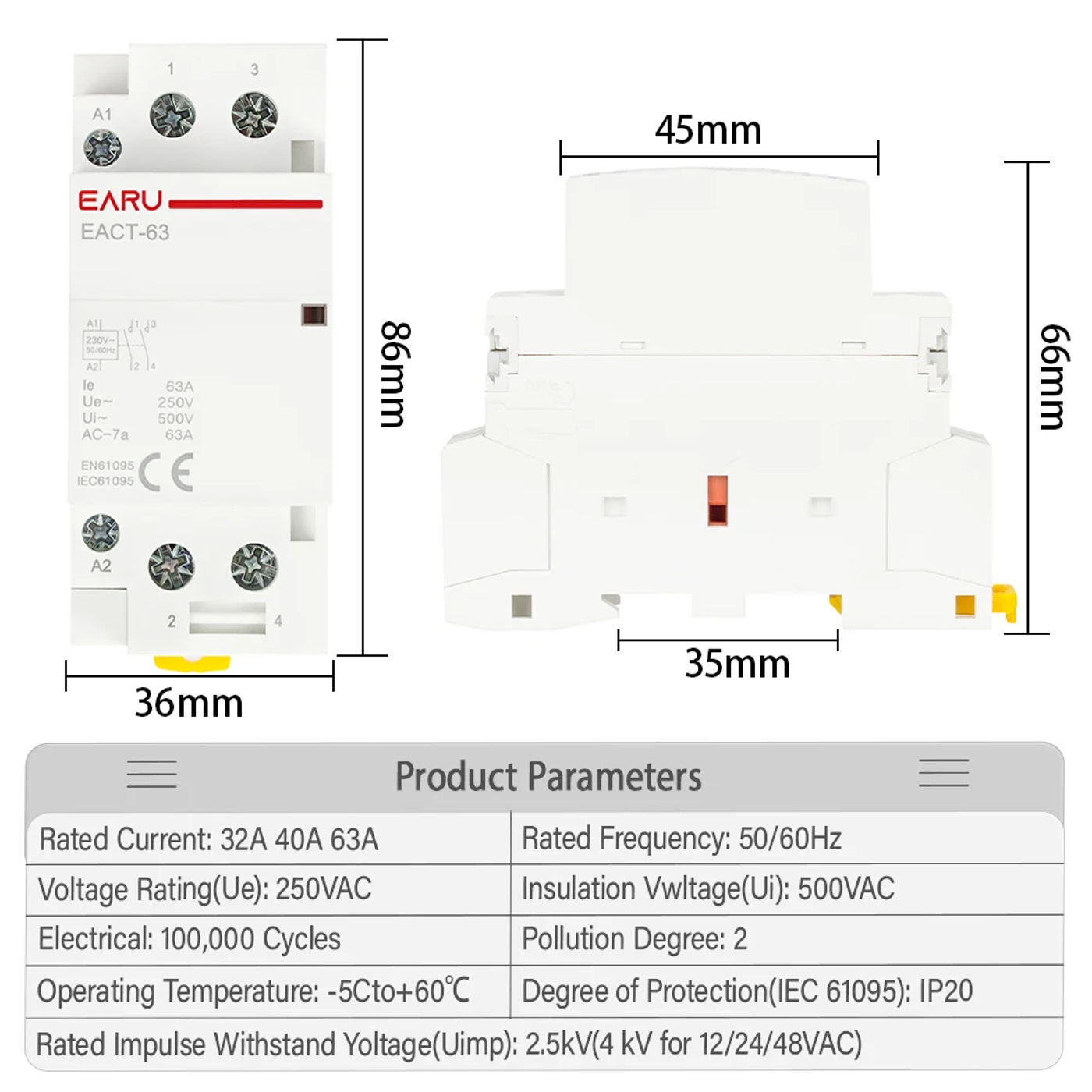

• Descriptions EACT 16A -63A House keep AC contactor is especially designed for AC 50Hz or 60Hz circuits with 230V working voltage in AC7a usage ,rated working voltage as much as 230V, rated operating current as much as 25A, Rated working voltage in AC7b usage , rated latest to 10A Using in breaking ability beneath 6kA circuit For distance join or wreck the circuit Normal working and set up circumstances Ambient temperature:-5°C to +40°C,the common temperature no more than +35°C in 24 hours Altitude:no greater than 2000m Atmospheric conditions: the relative humidity of the set up position ought to be no more than 50% when the maximum temperature is +40°C:if beneath a decrease temperature,a greater relative humidity is permitted The month-to-month average minimal temperature in the wettest month should not exceed +25°C and the month-to-month average maximum relative humidity of this month not more than 90%,the dew at the surface of products caused by temperature change should be taken under consideration Class of pollution: category 2 Installation condition: class II Application instruction 1 Check whether or not the contactor consents with the scope of utility and the operating situation before installation 2 During the process of installing pull down the motion preventing ingredient and put the contactor at the secure orbit then push up the motion,stopping factor to repair the contactor on the safe orbit avoid loosening and dropping pull down the motion,stopping ingredient if you wish to remove the contactor Caution a) yes the proper mode of connection b) down the binding screw throughout the connection

•
•
•
•
•
