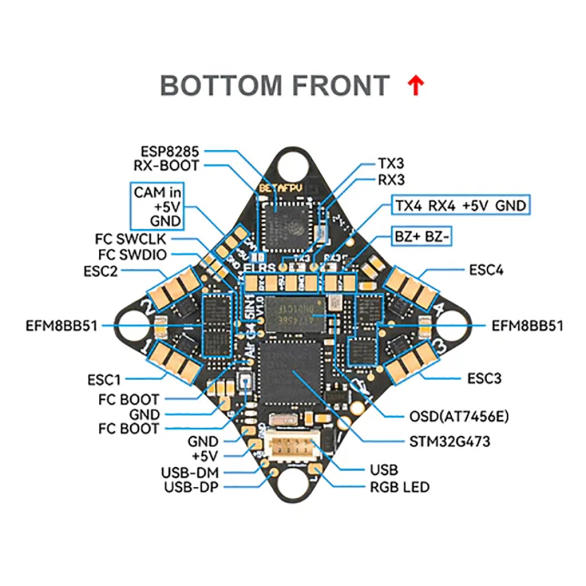

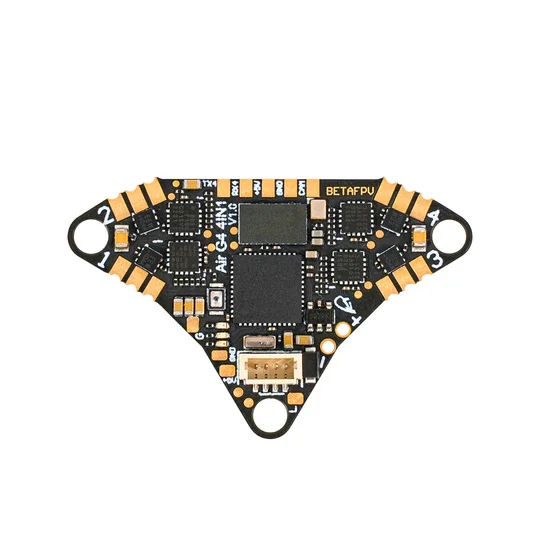

• Air Brushless Flight Controller 4in1&5in1 Six Axles ICM42688P For Air65 Air75 Meteor65 Meteor65 Pro Meteor75 Pro Drone Air Brushless Flight Controller, the 1st 1S FC that makes use of the STM32G473CEU6, skilled a remarkable 55% expand in computing velocity and lightning-fast reaction times, surpassing the F411 Equipped with the industry-leading ICM42688P gyro and onboard five 25mw~400mw VTX, it gives both 4IN1 with 2 and 5IN1 with 3 Versions, which takes your drone&;s posture and motion accurately to a higher point Immerse your self effortlessly within the drone international of Finger-Tip management Unmatched cost and simple superiority with it, go away most of the contest in the dust It often is the improved preference for future ultralight 1S whoop drones!Bullet Point Air Brushless Flight Controller, the 1st 1S FC that makes use of the G473 processor, experienced a unparalleled 55% broaden in computing speed and lightning-fast reaction instances for precise racing and complex freestyle maneuvers, surpassing the F411 Higher integration but lightweighter design, that includes a tradition miniature OSD chip Weighing solely 2 (4IN1 Version) or three (5IN1 Version), it offers extra UART port suggestions for easy function expansions, adapting flawlessly to any flight state of affairs Default incorporated onboard 25-400mW VTX Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC changes The 5IN1 Version even integrates the Serial ELRS 2 RX Elevate your drone&;s precision with the industry-leading ICM42688P gyro, included accelerometer, state of the art sensor calibration, and filtering algorithms, and a sample price of as much as 8K, which takes the drone&;s posture and movement correct and precise drone to the next point Unlock extensive flight records recording and evaluation with an impressive as much as 16MB capability black field Maximize functionality and diagnose faults effectively, leveraging the total prospective of your drone Specification of FC Weight: 2(4IN1 Version) / 3(5IN1 Version) Mounting Hole Size: 26mm x 26mm CPU*: STM32G473CEU6 (168MHz) Six-Axis: ICM42688P (SPI connection) Blackbox Memory: 16MB Sensor: Voltage&Current 5V BEC*: 5V 3A USB Port: SH1 4-Pin Built-in ESC with 5A continuous RX: Serial ELRS 2 (V3) (Only 5IN1 Version) 4IN1 Version: FC+ESC+OSD+VTX 5IN1 Version: FC+ESC+OSD+VTX+RX Specification of ESC Input Voltage: 1S FC Firmware Version: Betaflight_4 ESC Firmware: A_X_5_96KHz_V0 for BB51 Bluejay hardware Signal Support: D-shot300, D-shot600 Specification of VTX Output Power: 25/100/200/400/PIT Frequency: 5 forty eight channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2 Modulation Type: FM Frequency Control: PLL All Harmonic: Max -50dBm Frequency Stability: ±100KHz (Typ) Frequency Precision: ±200KHz (Typ) Channel Carrier Error: ±1 Antenna Port: 50 Ω Operating Temperature: -10℃~+80℃ DiagramBelow is the diagram for the Air Brushless Flight Controller (4IN1 Version) is the diagram for the Air Brushless Flight Controller (5IN1 Version) Comparison Between G473 and F411 Say so long to obstacles and include the state of the art expertise of the G473 flight controller for an unprecedented flight ride Air Brushless Flight Controller features up to 168MHz advanced CPU Clock Speed and four richer serial ports, enabling lightning-fast response instances and progressed computing power, making it superb for anxious flight, which takes your flying trip to a better point and demonstrates excellent performance, surpassing all 1S FC recommendations accessible for sale at present 4IN1&5IN1 Choose this greater integration Air Brushless Flight Controller, for an ultra-light 1S whoop installation, tailored to satisfy the purposes of discerning pilots It is default integrated onboard 25-400mW VTX, the 5IN1 Version that integrates FC+ESC+OSD+VTX+RX goes a step extra by way of integrating the Serial ELRS 2 RX, streamlining installation to save lots of space and reduce weight, and adorning comfort for VTX and FC modifications The 4IN1 Version removes the RX port for extra versatility, providing pilots with extra exterior RX strategies Serial ELRS 2 RX Serial ELRS 2 RX uses the Crossfire serial protocol (CRSF protocol) to speak between the receiver and the flight controller board So the Serial ELRS 2 RX is accessible to support upgrading to ELRS V3 while not having to flash Betaflight flight controller firmware Enter binding popularity by way of strength on/off three times Plugin and unplug the flight controller 3 times; Make sure the RX LED is doing a quick double blink, which signifies the receiver is in bind mode; Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse; If the receiver has a stable light, it&;s certain The Serial ELRS 2 RX can be updated by way of Wi-Fi or Betaflight serial passthrough Here is learn how to replace the Serial ELRS 2 RX firmware by way of passthrough Plug in your FC to your computer, yet do NOT connect with betaflight configurator; Choose target "BETAFPV 2 AIO RX"; Flash using the BetaflightPassthrough choice in ExpressLRS Configurator How to flash firmware through Wi-Fi right here Betaflight Firmware and CLI Betaflight professional developers put forward utilizing version 42688 of the gyroscope, and plenty of issues with ICM42688 had been constant in edition 4 Please be taught extra from edition 4 FC firmware: Betaflight_4, Download the firmware and CLI dump file Reference link: Bluejay ESC Firmware With BB51 ESC solution, Air Brushless Flight Controller relies on A_X_5_96KHz_V0 for BB51 Bluejay hardware, it supports D-shot300, D-shot600, or even RPM filtering in Betaflight, presents 24KHz, 48KHz, and 96KHz constant PWM frequency for options, and custom start-up melodies DO NOT flash the firmware with a shorter interval, otherwise, there'll be a definite probability of stalling and burning the flight controller ESC-Configurator: Download BLHeliSuite16714903 Download the Bluejay ESC firmware Please choose A_X_5_96KHz_V0 Connecting External RX/VTX Please notice that UART2 has related to the VTX by way of default This FC reserves three complete full-featured serial ports that may be used for external CRSF/SBUS receivers, GPS, HD VTX, or other serial instruments You can confer with the beneath photos Attention VTX Power: Higher VTX energy consumes more calories and generates more heat, reducing flight time For greater flight time in indoor scenarios, use 25~100mW power Motor Wiring: Only soldering is supported for motor wiring at the flight management Avoid terminal plugging VTX Antenna: Connect and set up the image transmission antenna earlier than powering at the flight management Alternatively, set transmission strength to 0 to avoid burnout Recommend Parts Drones: Air65, Air75 Frames: Air65, Air75, Meteor65, Meteor65 Pro, Meteor75 Pro Motors: 0702/0702SE, 0802/0802SE, 1102 Receiver: ELRS Lite Receiver, ELRS Nano Receiver Package 1 * Air Brushless Flight Controller 1 * 2 Antenna (Only 5IN1 Version) 1 * Type-C to SH1 Adapter 1 * SH1 4Pin Adapter Cable 1 * five VTX Antenna 1 * BT2 U Whoop Cable Pigtail | 40mm four * M1*4 Self-tapping Screws four * Shock Absorbing Ball Note: The under packaging pic is the 4IN1 Version Note: The below packaging pic is the 5IN1 Version

•
•
•
•
•
