Preces apraksts

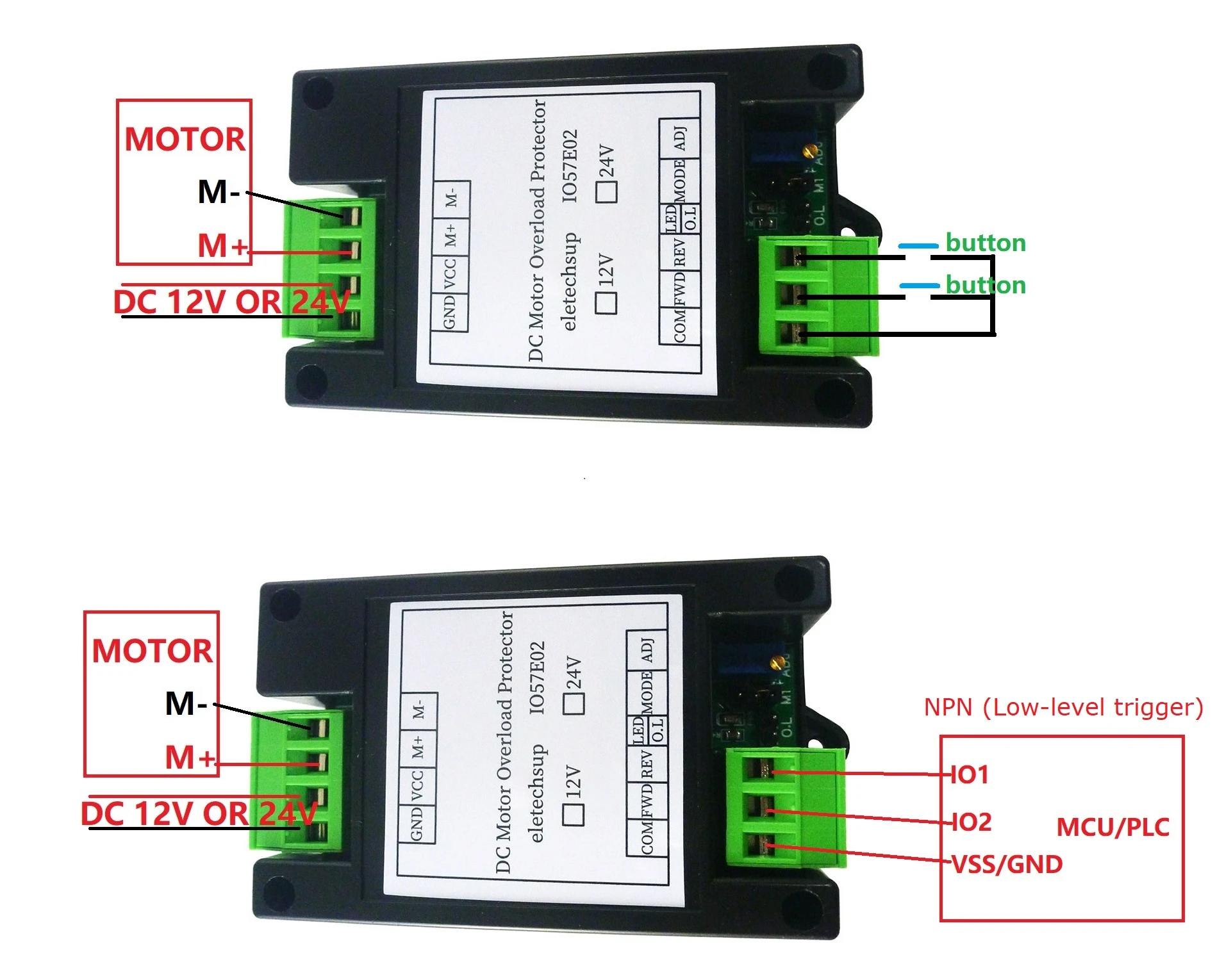

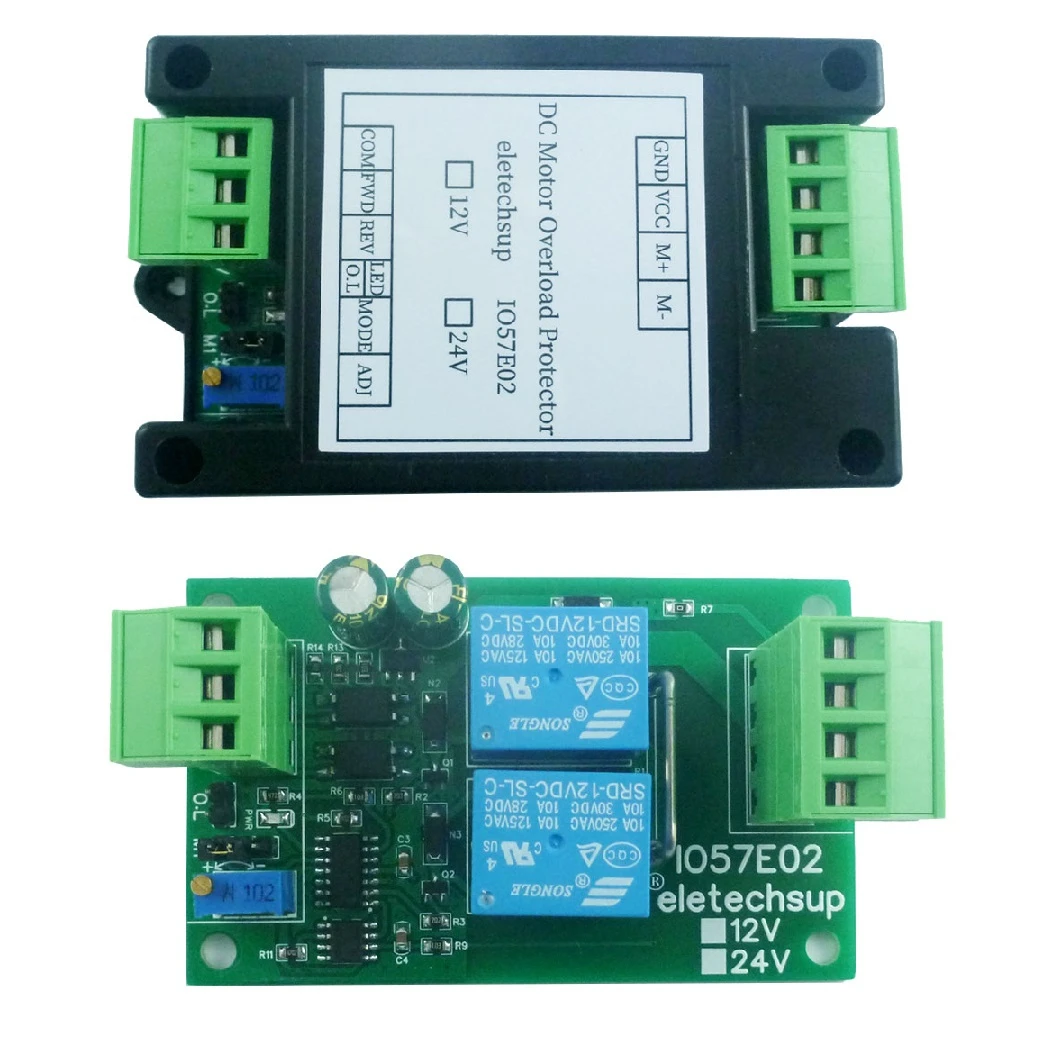

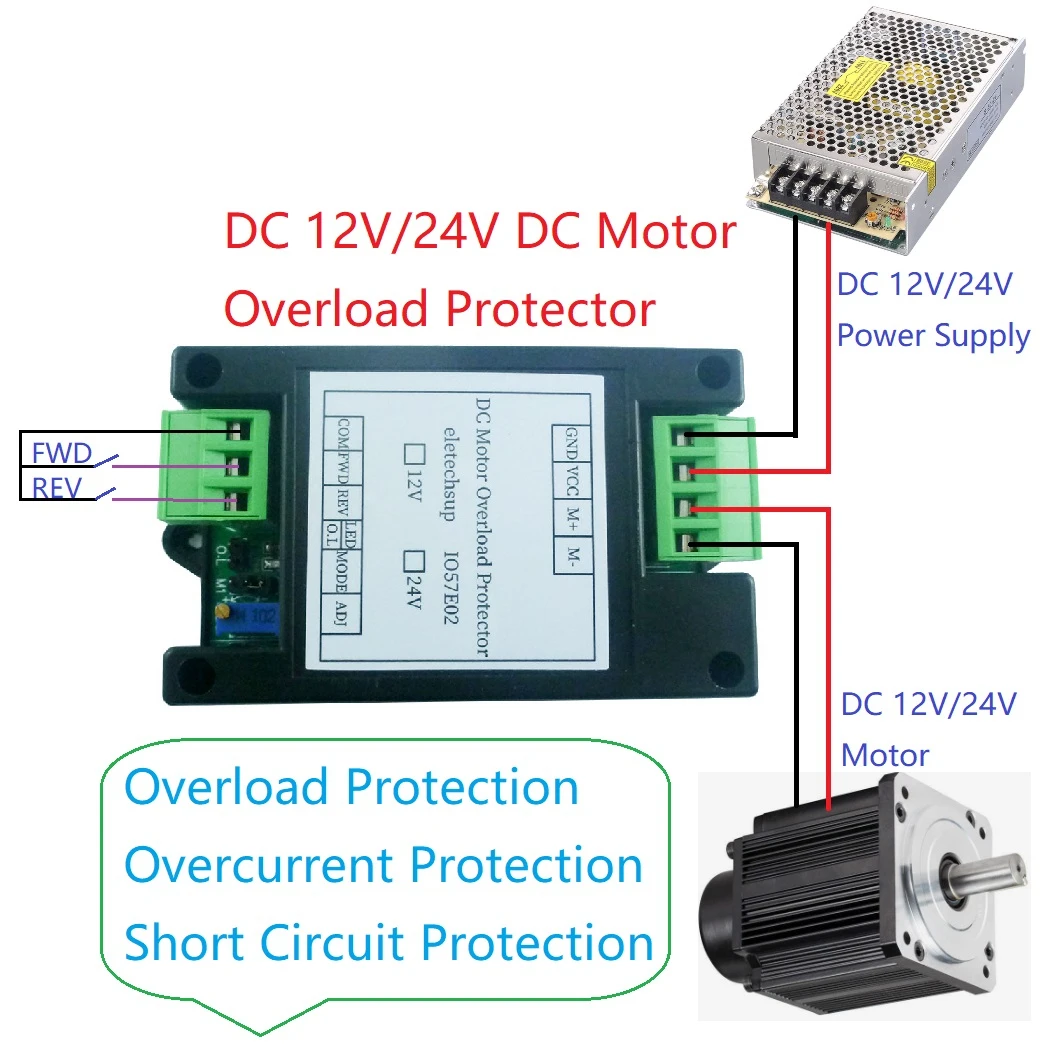

  • Product Name:DC 12V 24V Brushed Motor Overload Overcurrent Short Circuit Protector Forward Reverse Controller Product Included: 1pcs DC 12V/24V DC Motor Overcurrent Overload protection Product parameters: 1 Working voltage: DC 12V (12V version) or 24V (24V version) (DC energy supply strength ≥ motor energy x3); 2 Applicable motor: 12V/24V Brushed DC motor; three Maximum current: Short-term working recent 10A, long-term working recent 3A; four Protection recent adjustment range: 0~10A; five Motor control: Forward, Reverse; 6 Working modes: 2 optional modes, Non-locking and self-locking; 7 Working latest (excluding motor): 40mA; eight Size: 97*50*32mm (with shell), 79*48*19mm (without shell); nine Weight: eighty grams (with shell), 45,5g(without shell) Please touch me for detailed instructions Pin Description M- : Motor- M+:Motor+ VCC:Power Supply+ GND:Power Supply- COM:Control sign typical terminal(GND) FWD:Forward control REV:Reverse control LED :Power supply indicator O : Overload signal output MODE:Momentary/Self-locking mode selection ADJ :Overload current legislation Application Motor Overload Protection Motor Overcurrent Protection Motor Short Circuit Protection LED Overcurrent Protection

  • head_title lazy
  • head_title lazy
  • head_title lazy

Atsauksmes

0 people rated this product
No reviews
Maison Lejaby

Maison Lejaby

4.8
(12,350 abonenti)
Nodrošina:Maison Lejaby

DC 12V 24V Brushed Motor Overload Overcurrent Short Circuit Protector Forward Reverse Controller

0.0
-51%$ 5.49$ 10.92
VAT included
Krāsa: DC 12V only board
DC 12V only board

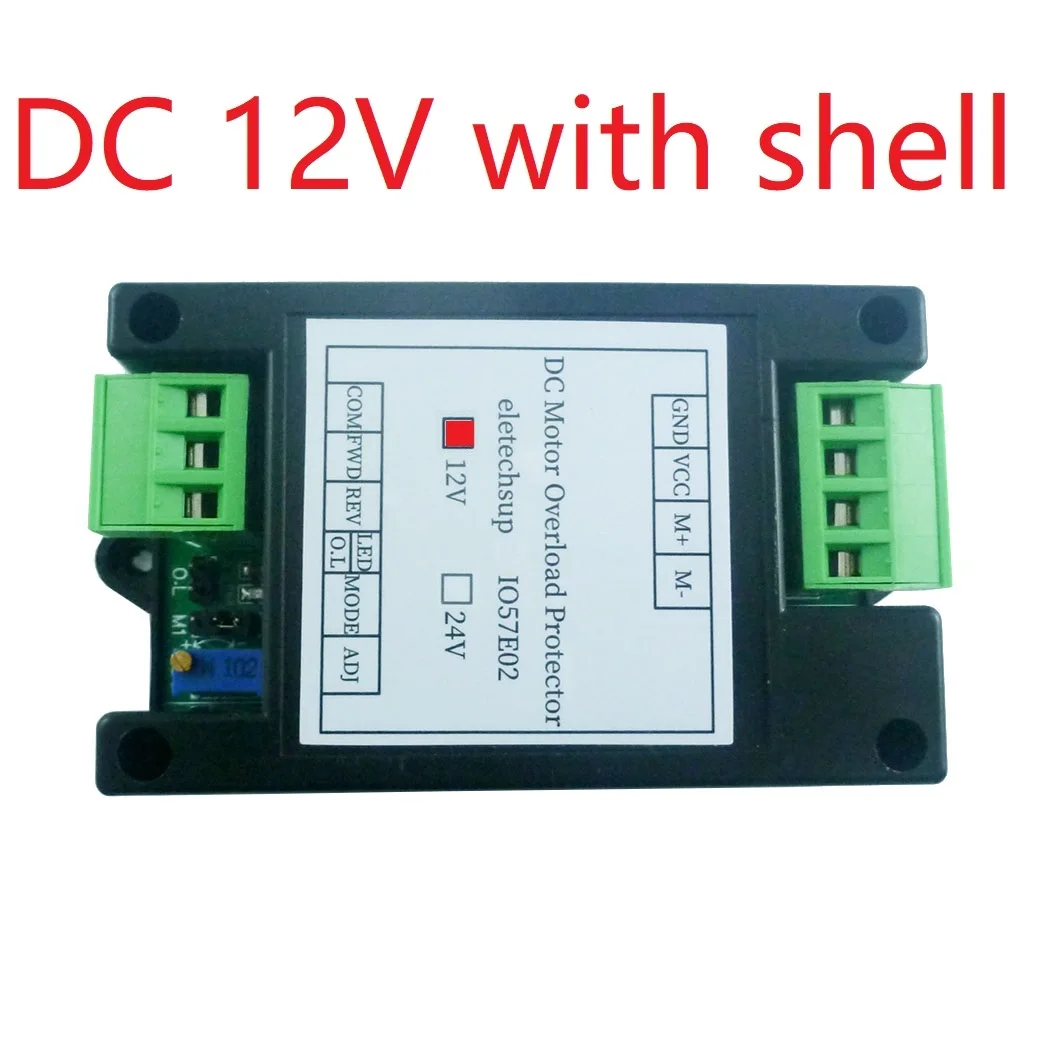

DC 12V with shell
DC 24V with shell

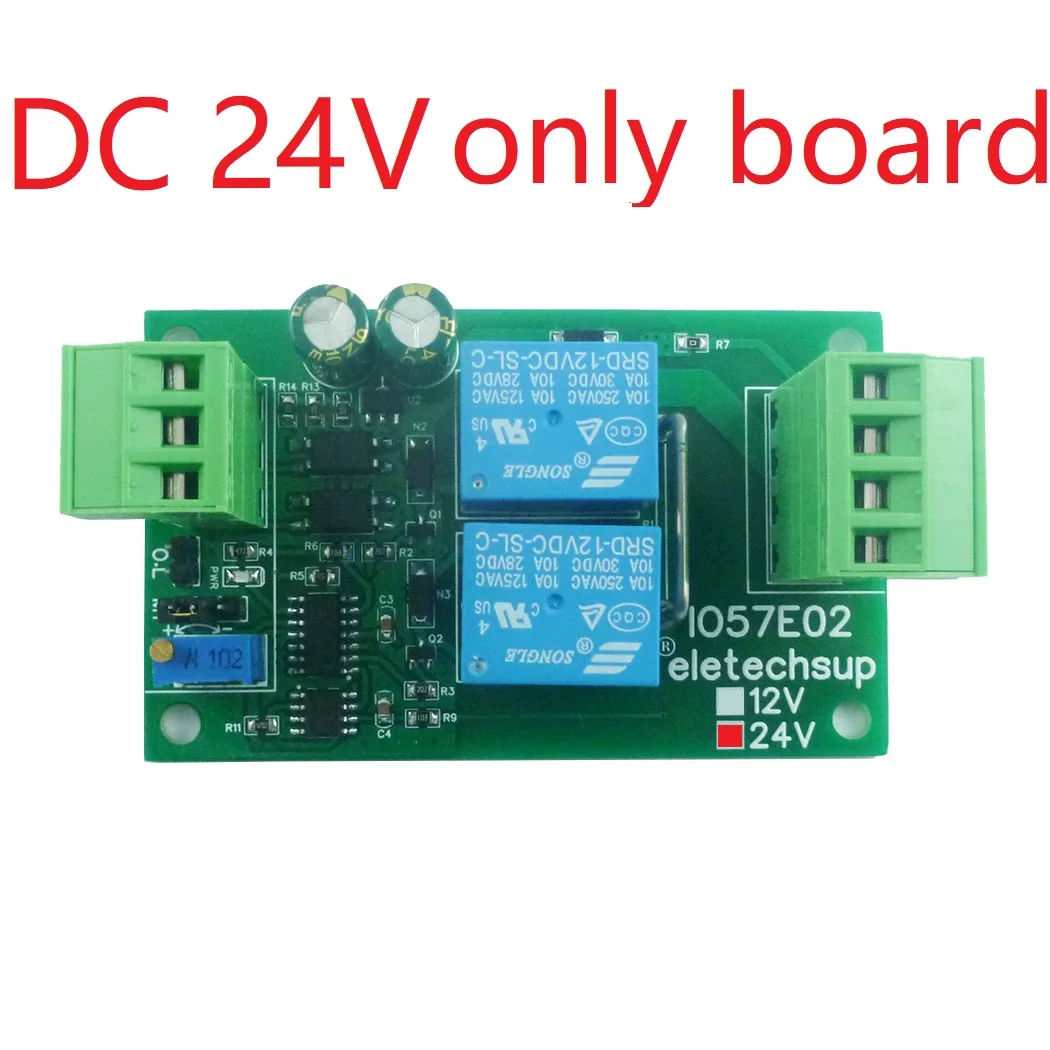

DC 24V only board
Daudzums
Tikai 263 preces ir palikušas noliktavā
