Preces apraksts

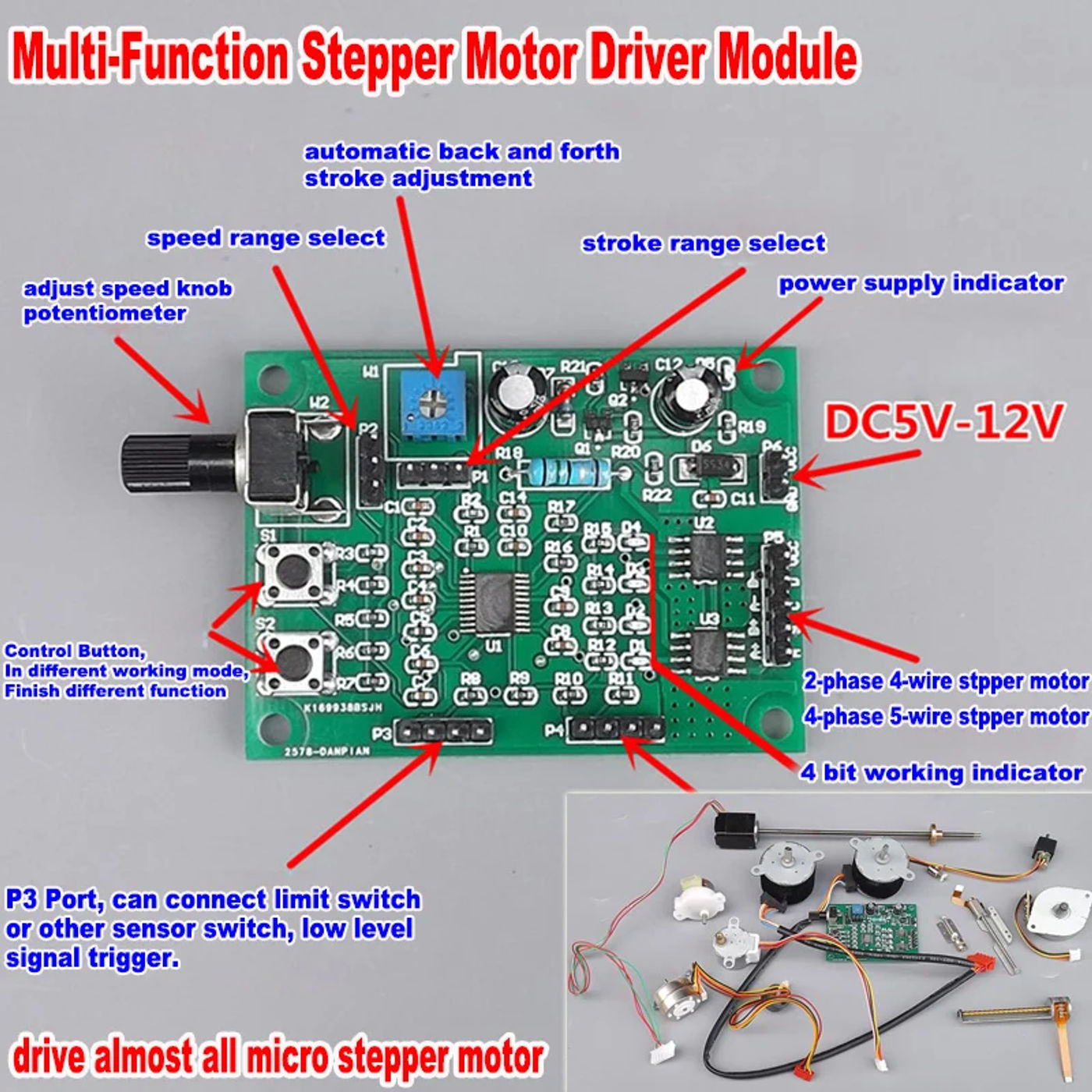

• Basic parameters:[Size] :59*44mm[Voltage range] DC5V-12V[rated current] ≤ 800mA[Power reverse connection protection] yes[Overcurrent protection] yes[overheat protection] yes Working mode: [1] Normal mode 1: S1 start/stop button, S2 forward/backward button, W2 potentiometer velocity management If limit reversal is required, two limit switches can be connected to the P3 pin, and the motor movement shaft is fastened with contacts, in order that the motor will reciprocate within the stroke between the two limit switches[2] Normal mode 2: Click S1 button to start forwards, S2 backwards, click any button again to prevent W2 potentiometer velocity regulation If the restrict give up is required, two limit switches could be connected to the P3 pin, so that the motor will quit transferring when it touches the limit switch, and the motor will opposite after the other button is clicked[3] Jog mode: S1 presses the forward rotation, releases the stop, S2 presses the opposite rotation, releases the stop, and the W2 potentiometer adjusts the rate If a restrict quit is required, the upper limit switch would be related to P3[4] Automatic round-trip mode: S1 begins and stops, S2 is reversed, W2 potentiometer speeds, and W1 potentiometer adjusts the automatic round-trip steps After starting, the motor routinely runs back and forth in the number of steps adjusted by W1 Add limited swtich Reference

•
•
•
•
•
