Preces apraksts

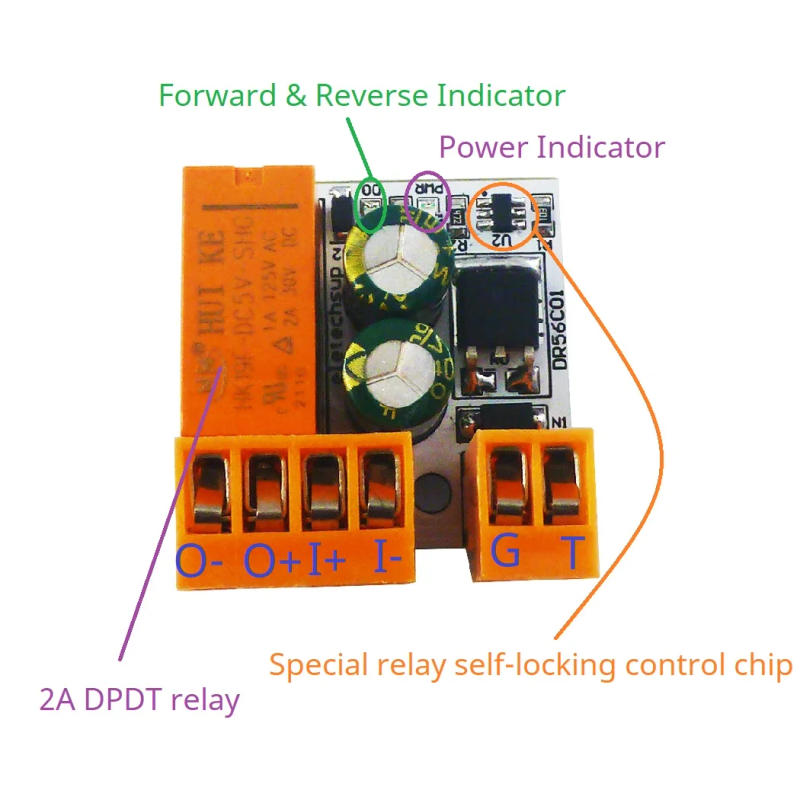

• Package inlcuded: 1 PCS DC 6V-24V 2A Self-locking (bistable) DPDT Relay Controller (with Terminal/no Terminal) How to use: Power-on, the output=input, press the trigger button, Reverse polarity output, press again, the output=input, the 1/3 press, Reverse polarity output, and so on Turn off the ability and prevent output Description: 2A Self-locking (Bistable) Reverse Polarity Controller 1 Input Voltage: DC 6-24V 2 Module operating current:Forward 2ma;Reverse: 33-39ma; three Load voltage: Equal to enter voltage four Load current: Maximum 2A(Inductive load <=1A) 5 Power Indicator AND Forward & Reverse Indicator 6 Control method : low pulse trigger(NPN) 7 Size: 30mm X 30mm X 16mm(no Terminal), 30mm X 30mm X 16mm( with Terminal) 8 Weight: 10g ( no Terminal) , thirteen ( with Terminal) This is a bistable (self-locking) Reverse polarity relay module,Trigger once, Output reverse polarity (and holds);Trigger again,the output=input (and holds) Pin description: I+ :Power Input +; I- :Power Input -; O+:Power Output +(When reversed is Power Output -); O- :Power Output -(When reversed is Power Output +);; G:trigger signal enter ground; T:trigger sign input terminal(0 second low pulse trigger) Note: 1 For the module to paintings stably, be sure you use a power delivery with satisfactory latest delivery current is bigger than 2 times load recent 2 The maximum load current is 2A, if it is a motor, the utmost load current is 1A 3 Can solely control forward and reverse(Start and prevent through energy on and gear off control)

•
•
•
