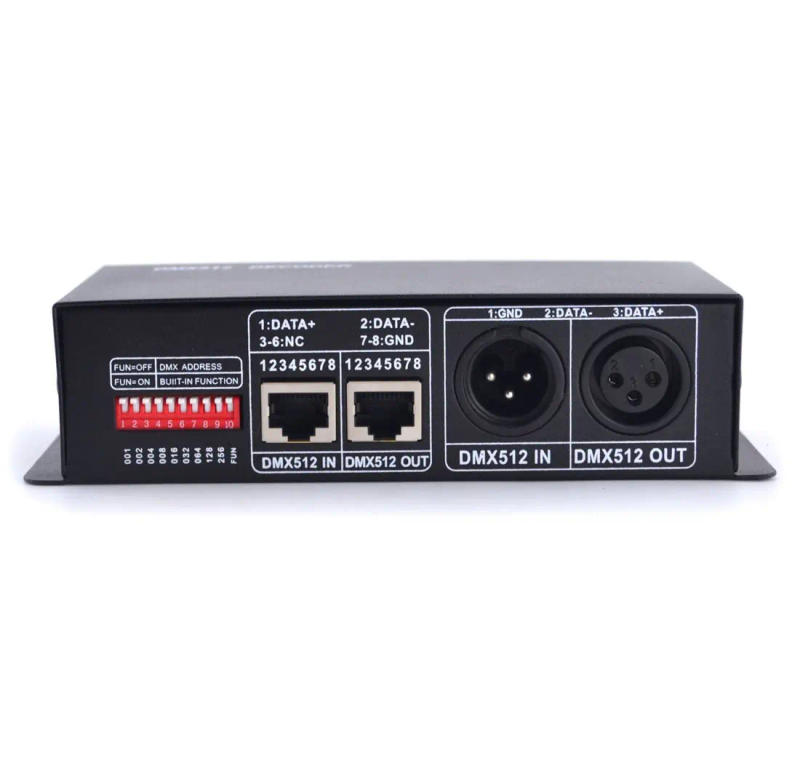

• 4 Channels DMX-512 Decoder Controller Dimmer for RGB LED Strip Lamp Light DMX decoder adopts the progressed micro leadership unit, it receives typical DMX-512 electronic management signal and switched over it into PWM sign for using lED; You could connect DMX module with DMX electronic console to realize dimming or various changes in procedures decoder adopt the electronic tube to reveal the handle code,and with 3 buttons to setting,make it less difficult to used: Working temperature: -20-60°C Supply voltage: 5V, 12-24V can desire Output: four channel External dimension: L165*W68*H40(mm) Packing size: L180*W95*H60(mm) Net weight: 320g Gross weight: 355g Output current: 4A/ch Output power: 5V:<80W, 12V:<192W, 24V:<384WHow to use?DMX tackle code settings: Each DMX regular controller occupied 3 DMX addresses, undertake coding switch set address, it is a Binary numerical code swap which is surroundings DMX long-established deal with code from 1 to 9, 1 is the lowest, and nine is the highest, 511 manage codes would be set in all. DMX long-established cope with code equal mixture value of the coding replace charge from 1 to 9, dial the coding swap downwards(ON is set 1), the value of bit could be gotten, at the contrary, the price of bit is 0. DMX signal can be received when coding switch FUN(10)=OFF(ON is determined 0)

•
•
•
•
•
