USB Digital garage oscilloscopes, transportable oscilloscopes four channels 70MHz bandwidth automotive oscilloscope Hantek 6074BE/6074BC 6074BD 6254BD 6254BE
Hantek6074 Series:
Standard equipped over eighty styles of automotive dimension operate (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2 interface plug and play, and no use more strength supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc Free software upgrading constantly, increased charge performance; Support USBXI, clean to function four remoted channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV high input sensitivity and massive enter range, 70MHz high bandwidth, small size, easy for carrying Dynamic cursor tracking, waveform listing and replay operate
Feature
Standard geared up over 80 types of car size function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus sign integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel
Fit for the transportable computers, desk PC, and suitable for wild mobile use and work trip use Support WIN10/ WIN8/WIN7 etc
USB 2 interface plug and play, and no need extra energy supply;
Great function, More than 20 sorts of automated measurement function, PASS/FAIL Check operate Resourceful trigger function, dynamic cursor tracking, waveform listing and replay function
Good mechanical design with small length which is simple for sporting The outer case is made via an analogous materials with iPad - Anodised aluminium It has tremendous warmth resistance and abrasive resistance with exquisite appearance The hardness of aluminium alloy surface is significantly advanced
four isolated channels oscilloscope, 1GSa/s genuine time sampling rate, 2mV-10V/DIV excessive input sensitivity and large enter range, 70MHz excessive bandwidth,
The waveform data could be output to EXCEL,BMP,JPG
Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display
FFT spectrum analyzer
One pc could connect to a number of oscilloscopes, develop the channel number easily
Provide secondary development library DLL; Provide Labview\VB\VC\QT constructing instance
Model
Hantek6074BE
Bandwidth
70MHz
Channel
4 CH
Real-time Sampling Rate
1GSa/s
Memory Depth
64K
Time BasePrecision
±50ppm
Time Base Range
2ns/div-1000s/div (1-2-4 sequences)
Input Impedance
1MΩ 25pF
Input Sensitivity
2mV/div~10V/div
Vertical Resolution
8Bit
Vertical Displacement Range
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy
±3%
Bandwidth
20MHz
Trigger Mode
Edge, Pulse, Video, Alternative
Trigger Source
CH1, CH2, CH3,CH4
Waveform Signal Process
+,-,x,÷,FFT, Invert
Cursors Measurement
Cross, Trace, Horizontal, Vertical
Auto Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume
175mm * 105mm * 25mm
package includ

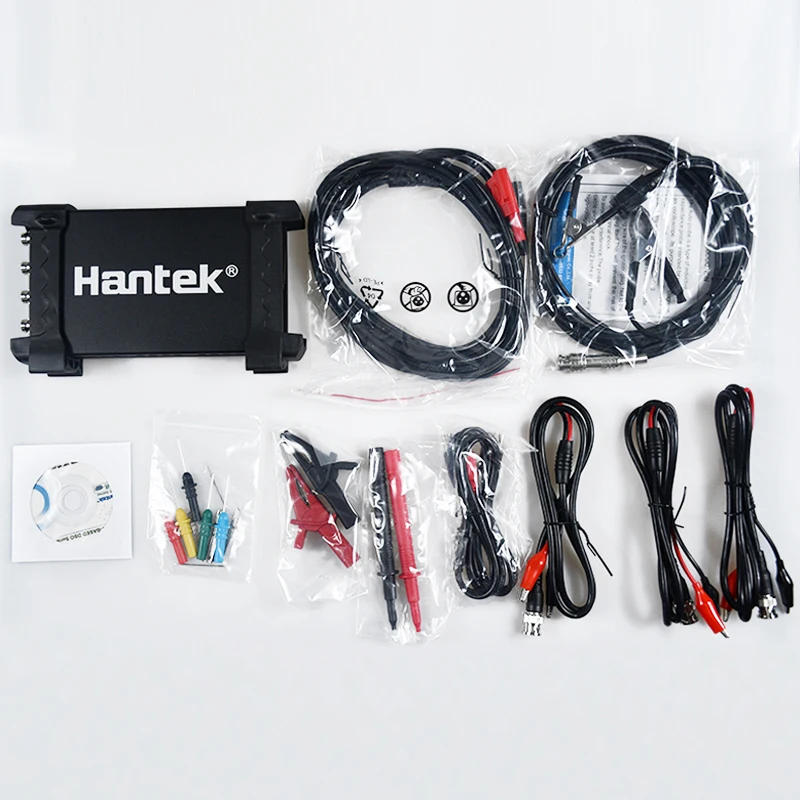

6074BE* 1pcs HT307*1,HT19*1,HT18A*1,HT30A*1,gator clip lines*3,HT25*1,USB,CD,Manual
Model
Hantek6074BC
Bandwidth
70MHz
Channel
four CH
Real-time Sampling Rate
1GSa/s
Memory Depth
64K
Time BasePrecision
±50ppm
Time Base Range
2ns/div-1000s/div (1-2-4 sequences)
Input Impedance
1MΩ 25pF
Input Sensitivity
2mV/div~10V/div
Vertical Resolution
8Bit
Vertical Displacement Range
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy
±3%
Bandwidth restrict
20MHz
Trigger Mode
Edge, Pulse, Video, Alternative
Trigger Source
CH1, CH2, CH3,CH4
Waveform Signal Process
+,-,x,÷,FFT, Invert
Cursors Measurement
Cross, Trace, Horizontal, Vertical
Auto Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume
175mm * 105mm * 25mm
Weight
0
equipment includ
1 x 6074bc usb oscilloscope;
2 x oscilloscope probe;(Note:Just 2pcs probes in the package,if you desire to purchase more,please contact with us directly!!!)
2 x BNC - clip cable;
1 x usb cable;
1 x CD (driver / guide inside)
Model
Hantek6074BD
Bandwidth
70MHz
Channel
four CH
Real-time Sampling Rate
1GSa/s
Memory Depth
64K
Time BasePrecision
±50ppm
Time Base Range
2ns/div-1000s/div (1-2-4 sequences)
Input Impedance
1MΩ 25pF
Input Sensitivity
2mV/div~10V/div
Vertical Resolution
8Bit
Vertical Displacement Range
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe
DC Gain Accuracy
±3%
Bandwidth
20MHz
Trigger Mode
Edge, Pulse, Video, Alternative
Trigger Source
CH1, CH2, CH3,CH4
Waveform Signal Process
+,-,x,÷,FFT, Invert
Cursors Measurement
Cross, Trace, Horizontal, Vertical
Auto Measurement
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume
175mm * 105mm * 25mm
Weight
zero
Accessory
2 passive probes, 2 gator clip strains
The distinction is The 6074BC would not have a automobile check possibility function, and different purposes are similar to the 6074BE
As the advent of the product is upgraded, the color could also be barely different, however it will not influence the use
