Product Introduction

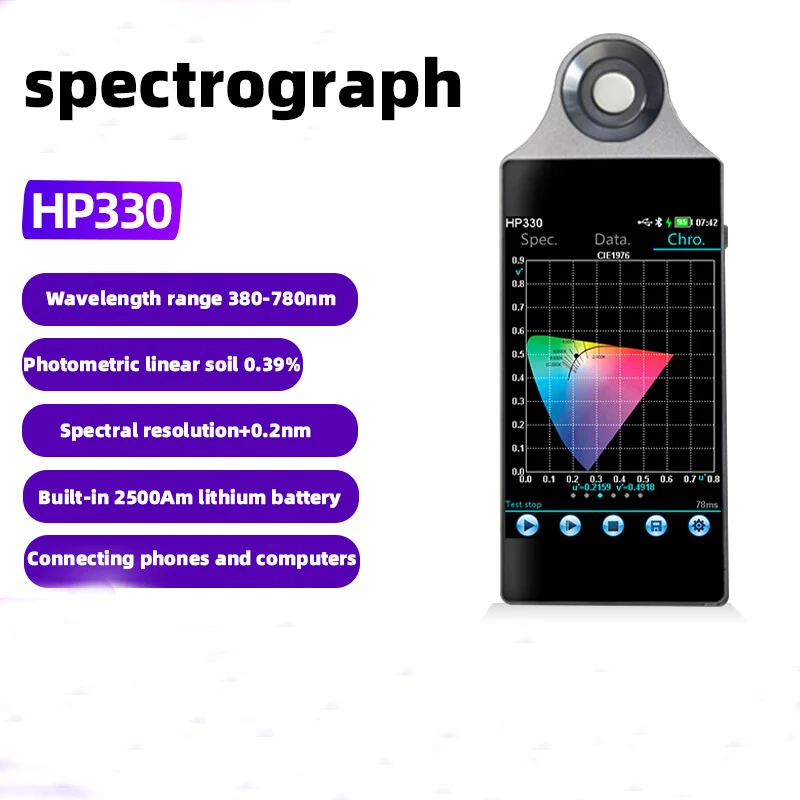

1、 HP320 intelligent spectral illuminometer
The HP320 intelligent wireless spectral strength meter is a brand new era of hand held mild source mild color checking out device It makes use of advanced micro spectrometer, Embedded working formula and microcomputer technology to combine The three inch IPS contact screen makes the sphere test application more convenient and simple, and extra consistent with the parameter verify evaluation and verification of the sector utility situation Sampling and dimension of light supply parameters could be implemented anytime and anywhere, and PC application can be linked to the laboratory for trying out Efficient evaluation and processing of verify records kept in on-site trying out would be carried out, with extremely high measurement linearity and accuracy
Application standards: GB 40070-2021, JJG_ Various lights criteria resembling 245-2018, GB55016-2021, GB/T 5702-2019, GB/T 5702-2019, GB/T 5699-2017, GBT 5700-2008, GBT 24824-2009, GB30734-2014, GBT 9473-2017, and so forth
Main test parameters: coloration temperature (K), illuminance lx, colour tolerance SDCM, Color index Ra, shade coordinate, wavelength nm, coloration purity, mild and darkish visual ratio (S/P), transmittance
(1) Main functions
1 On site checking out of business lighting, fitness lighting, domestic lighting, building lighting, etc;
2 Laboratory study and advancement validation testing;
3 In the field of on-site lights dimension in homes, searching malls, schools, factories, greenhouses, outdoor areas, etc;
4 Research and development of sunshine source products, quality control of manufacturing lines, and different links
5 Online detection, sorting, real-time monitoring, and many others of light source merchandise
(2) Product benefits
1 Communication method: USB
2 Multi platform operation: laptop PC utility management operation, IPS touch display screen management operation
(3) Core devices
1 TCD1254 CCD detector, band reaction range 380-780nm
2 Enhanced coating grating: variety of lines: six hundred traces
three Enhanced collimator, focusing lens
4 sixteen bit high-speed AD sampling
five High precision and secure computing circuit
6 High precision optical path, small stray light, removal of high-order diffraction spectrum (cloud spectrum filtering system)
(3) Advantages of trying out
1 Comparative testing, transmittance testing, parameter comparison (rolling and locking modes)
2 Timing testing, timing saving (can be verified by way of gentle attenuation testing)
three Wavelength adjustable for easy query (single band for simpler viewing and analysis)
four Compensation for examine outcomes (coefficient reimbursement for verify results for various situations and environmental changes)
five Online checking out
2、 Optical path characteristics (fiber optic spectrometer structure)
1 Multiple optical inputs: direct cosine correction entering the slit or by way of SM905 fiber (with cosine correction)
2 Wavelength range: 380-780nm
3 Spectral resolution: ± 0, wavelength resolution:
4 Photometric linearity ± 0%
5 Stray light:<0%
6 Photometric probe cosine correction: error ≤ 5%, nonlinearity ≤ 1%
Power requirements
Charging adapter:input:AC110V~220V ±10% output:DC5V/1A ±5%
Built-in Lithium Battery:Charging Voltage four capacity: 4000mAh size:60mm×60mm×8
Data cable:Type-C interface Carrying current≥1A
Environment
1 humidity:<70%RH;storage temperature:<50℃;
2 faraway from water, oil, chemicals, corrosive liquid gases, high temperature and pressure, direct sunlight, etc;
4 long-term or extreme vibrations, avoid falling from excessive places, and avoid squeezing heavy objects。
Usage surroundings
complete machine:-10℃~+40℃ 0~70%HR(Cannot be positioned in water)Stay away from stable magnetic fields, electric fields, and vibrations。To make sure excessive size accuracy, optimum working environment, and temperature of the instrument:20℃-25℃,humidity:50%RH~75%RH。
Quantity calibration:
To make sure the long-term accuracy of the instrument, it's endorsed that customers continually ship the tool to our company for testing and calibration, or to a laboratory with identified qualifi
