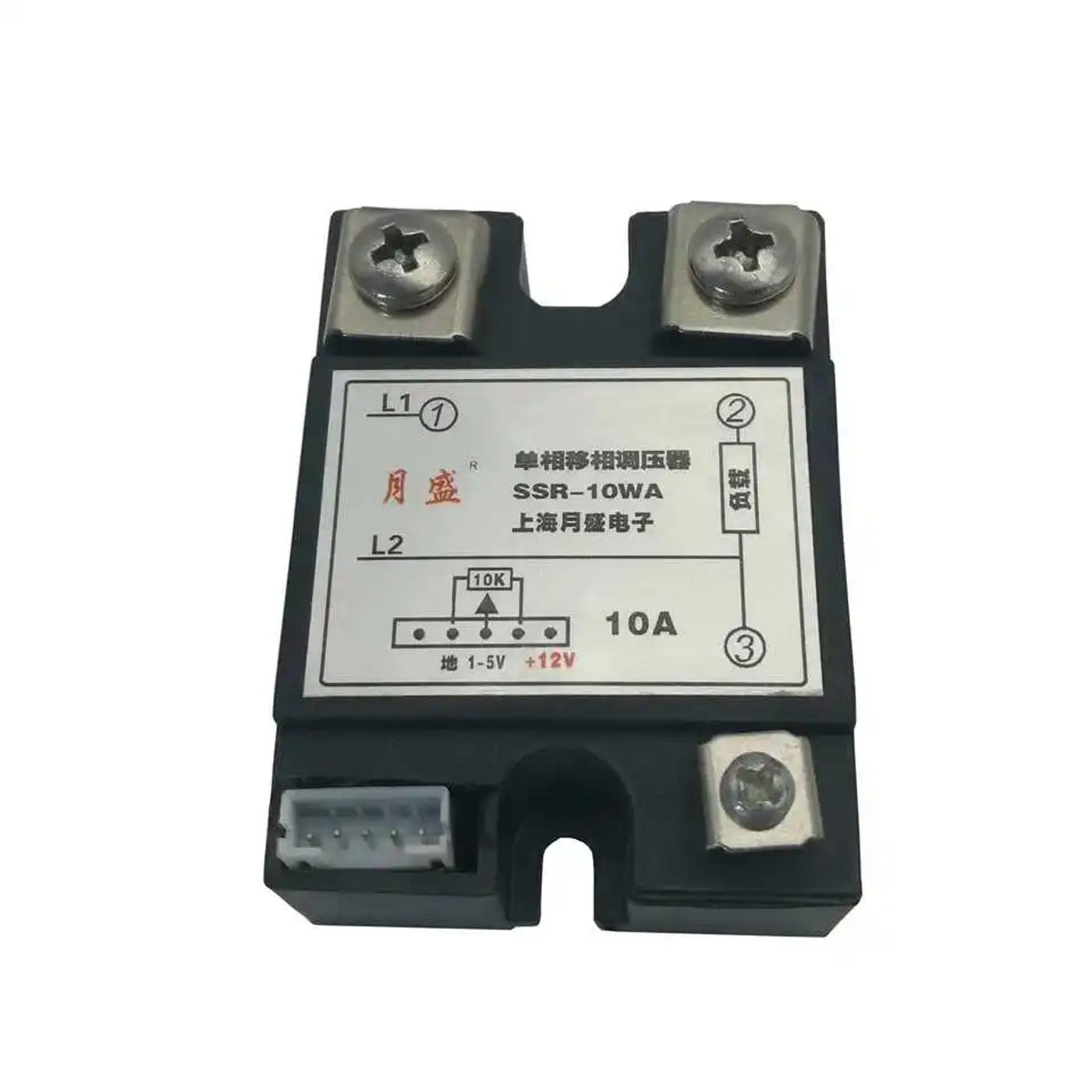

• It&;s acceptable1-5V，4-20mAAnd manual10KPotentiometer input。SCR output,Zero current flip off,Strong skill to bear overload instantly。 It must be geared up with right radiator，Strengthen pressured air cooling if necessary。 This product is a multi-functional strength incorporated module which encapsulates the thyristor main circuit and the phase-shift set off control circuit Flame retardant engineering plastic shell, Wide vary of applications,It can be used for resistive inductive load:Such as incandescent lamp,Temperature regulation,Industrial electric furnace,Oven,electric machinery,Electrical switch cabinet,Automatic leadership equipment two. Overview of stable state voltage regulator products：Solid state voltage regulator is a new sort of incorporated part shift voltage regulation stable state relay independently developed via means of our company。It has enter and output photoelectric isolation，The part shift voltage regulating circuit is integrated with the major circuit，Small size，Light weight，Long life，High leadership power，Stepless adjustment，High insulation voltage。It is useful to use the change of input voltage to achieve the automatic management of output load power，Potentiometer also is used to regulate the output power manually。meanwhile，High enter impedance，Internal synchronization，It would be connected with laptop directly by means of manner of electronic to analog converter、Digital program management circuit and its application0~5VVoltage or4~20mAInstrument interface for recent output，It is awfully useful to attain the stepless legislation of the output terminal load voltage and power。TRIACThe output is usually used for inductive loads。It would be widely used in the light adjustment of lighting fixtures equipment，Temperature management of civil commercial heating and motor velocity control。three. The following are the parameters of strong state voltage regulatorfour. Solid state voltage regulator dimensions and set up wiring diagram:(Company:mm)Temperature curvefive. Matters desiring consideration in collection of stable state relay products:When selecting products，It is determined by the character of the load，There are various margins within the recent level。（Under resistive load,Press2-3Selection of double load current。Under inductive or capacitive load,Press3-5 Selection of double load current）。 According to the relationship between load recent and ambient temperature，When the ambient temperature is immoderate or the heat dissipation challenge is poor。The current skill needs to be increased。In order to prevent load short circuit when using，It is needed to connect the corresponding quick break substitute or brief fuse in series within the load circuit。Under inductive load，A varistor is probably connected in parallel on the output end，In case of harm to thyristor in case of over voltage。Varistor(MOV)The preference of：240VFile timing430-470V，440VFile timing680-750V， 660VFile timing1100-1200V。 During installation，The contact surface between the radiator and the product should be flat、Bright and clean，And a layer of thermal conductive silicone grease is frivolously coated on the surface，Finally, put the flat washer on it、Screw the spring washing machine symmetrically。After the first operation and shutdown of the cast state relay，Should benefit from its closing temperature to tighten the fixed screw again，So that the solid state relay base plate and the radiator floor can be in shut contact，Achieve the best cooling effect。The nominal current of other varieties of strong state relay is at the ambient temperature of 040Nominal current at,So heat dissipation must be sufficient!!

•
•
•
•
