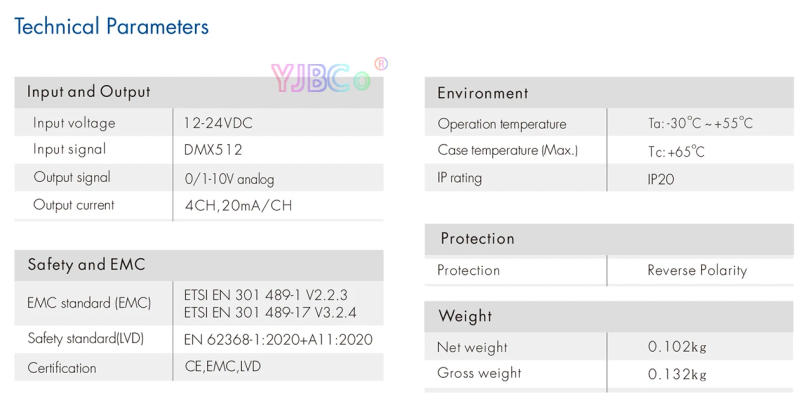

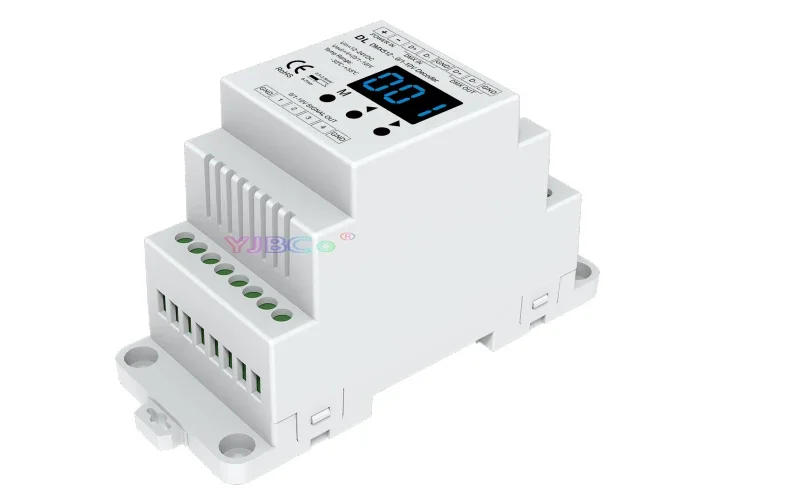

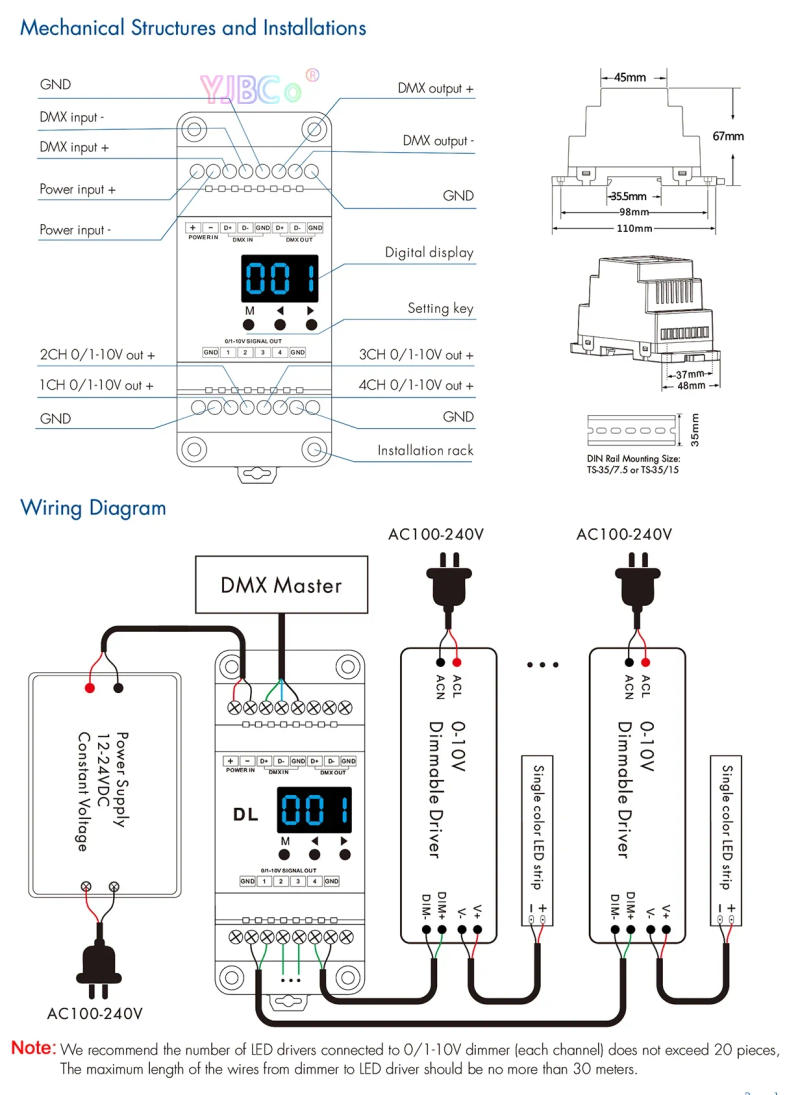

• four Channels 0/1-10V DMX512 Decoder Model No. : DL RDM/Stand-alone function/Linear or logarithmic dimming/Numeric display/Din Rail Features: ● Comply with the DMX512 regular protocols. ● Digital numueric dispaly, set DMX decode delivery take care of through means of buttons. ● RDM operate can notice intercommunication between DMX grasp and decoder. For example, DMX decoder tackle would be set by way of DMX grasp console. ● 1/2/4 DMX channel output selectable. ● 0-10V or 1-10V output selectable. ● Logarithmic or linear dimming curve selectable. ● Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be managed by technique of buttons with integrated programs, instead of DMX signal. Technical Parameters: Input and Output Input voltage: 12-24VDC Input sign : DMX512 Output signal : 0/1-10V analog Output latest : 4CH,20mA/CH Note: We put forward the diversity of LED drivers related to 0/1-10V dimmer (each channel) does not exceed 20 pieces, The maximum size of the wires from dimmer to LED motive force should be no more than 30 meters. Package content: 1pcs* DL DMX to 4CH 0/1-10V Signal Converter 1pcs* Introduction Manual Operation System parameter setting● Long press M and ◀ key for 2s, practice for setup substances parameter: decode mode, 0/1-10V output, output brightness curve, default output level, automated clear screen. quick press M key to switch ve item. ● Decode mode: quick press ◀ or ▶ key to modify one-channel decode("d-1"), two-channel decode("d-2") or four-channel decode("d-4"). When set as 1 channel decode, the decoder occupy only one DMX address, and 4 channel output a matching brightness of this DMX address. ● 0/1-10V output: quick press ◀ or ▶ key to alter 0-10V("0-0") or 1-10V("1-0"). ● Output brightness curve: brief press ◀ or ▶ key to change linear curve("C-L") or logarithmic curve("C-E"). ● Default output level: press ◀ or ▶ key to alter default 0-100% level ("d00" to "dFF" ) when no DMX enter signal. ● Automatic clear screen: quick press ◀ or ▶ key to modify enable ("bon") or disable("boF") automated clean screen. ● Long press M key for 2s or timeout 10s, give up method parameter setting.

•
•
•
•
•
