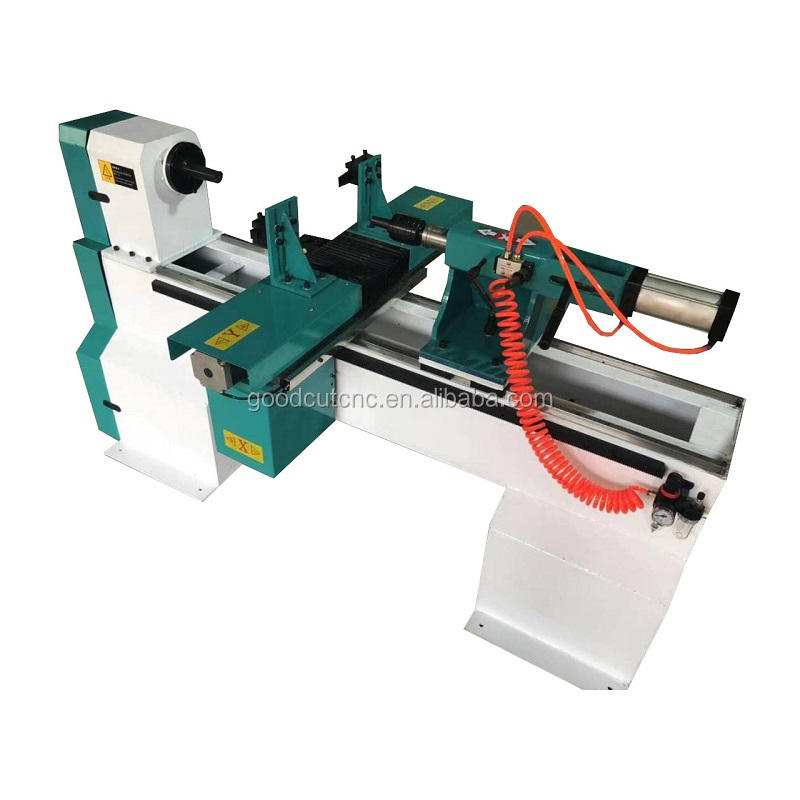

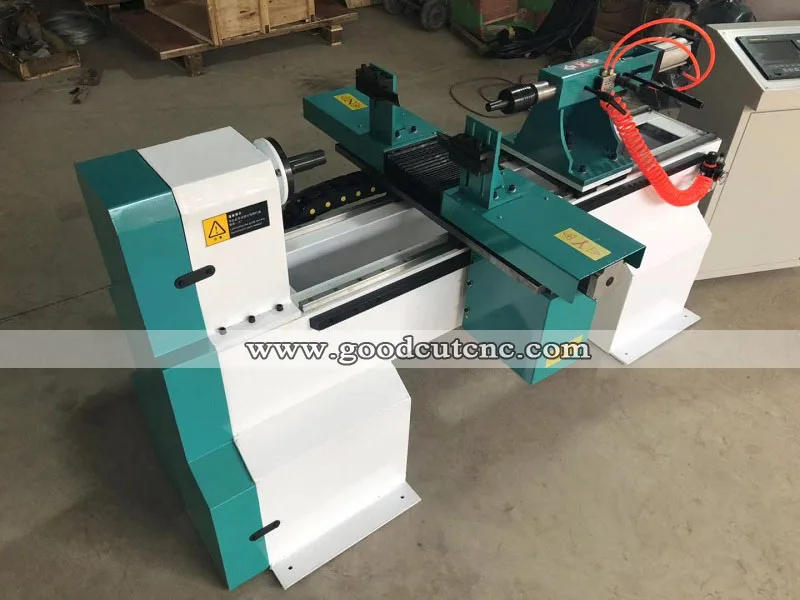

• Small Size Hss Lathe Wood Cnc Machine Product Description 1 . CNC Wood turning lathe machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. 2. Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials’ vibration. 3. We could configure single spindle with t wo pcs cutter or one pc cutter, single spindle could configure chuck, two cutters could do rough turning and finish turning at the same time for high efficiency and surface quality. 4. High accuracy stepper motor, after program calculating, guarantee the exact processing size. 5. Taiwan Hiwin square rails and TBI precise ball screw, control the linear error effectively. 6. Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB. 7. One time tool setting to finish the whole work piece. Product Paramenters Description Parameters processing diameter 5-150mm Processing max length 500mm Auto drilling With(can change into turning thimble) Processing precision 0.01mm Operating system Special wood beads system Drawing software CAD Drawing format *.dxf Transmission way TBI ballscrew guider Taiwan Hiwin/PMI square orbit Driving system Step motor and driver cutter Super hard alloy wood lathe cutter Whole machine power 1.5KW Motor power 750w Voltage 220V single phase, 50HZ Packing size 1300*550*900mm Gross weight 200kgs Proper Materials All kinds wood Application This machine is widely used in crafts industry, Bead, barrel, all kinds of buddha head pagoda, gourd pendant, hoist pieces, wood rhinoceroshorn cup, bowl, whip, cigarette holder, eggs, ashtray scroll painting head. Standard Accessories Square orbit Ballscrew transmission With automatic drill, Special wood beads machine control software, 1.5kw easy motor, Supper hard alloy cuttter Parts cutters*2 pieces drillers *5 pieces Limit switch*2 pieces Detailed Images 1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. 2.Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. 3. Fast processing speed 4.The use of mature CNC controller, stable operation, simple installation and debugging. Adopt international standard NC language G code. Support a variety of software. Extension of technical functions. 5. Motion: High-precision stepper motor drive, to ensure the accuracy of processing size, using Taiwan guideway, combined with ball screw transmission, strong environmental adaptability, not afraid of dust. Ensure the accuracy of processing. Frequency conversion speed regulation, spindle automatic operation, high degree of processing automation. 6. Foundry moulding, stable structure, high frequency quenching grinding imported linear square rail, small vibration, can ensure high precision processing. Auxiliary part: Cast iron bed structure is stable, total weight 1 ton 6, small vibration! The bed is sprayed with automobile paint without fading or discolouring. 7. DSP control handle, support U-disk data transmission, data line is long enough to facilitate tool alignment, but also conducive to processing while observing. 8. Taiwan guide slider and Taiwan TBI ball screw effectively ensure smooth and accurate operation. 9. Spraying automobile paint on the outside of the bed, without fading or discoloring Sample Wood lathe machine Mainly used for processing cylindrical handrails, railings, Roman column and other profiling process products. Manual profiling processing to speed,After the double frame, rough car can be fine hand, after grinding can be sanding. Is the best tool for cylindrical processing, can be processed custom semi-automatic. Our Service 1.One year guarantee of the whole machine. We will offer one year for machine parts warranty, within one year, we will free maintain or change the broken machine parts for buyer. 2.Free training at our factory. 3.24 hours online service through TM, Skype, MSN, Email or on the phone. 4.Engineers available for overseas training and after-sale service. 5.contact me at any time if you have any questions about the machine. Jinan GoodCut CNC Machinery Co.,Ltd. The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service Good Quality 1.15 engineers with more than 10 years rich working experience, manufacture high precision machines; 2.Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped; 3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections. Good Price 1. GoodCut manufactures about 500 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive; 2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude. Good Service 1. English manual and video for machine using and maintaining, explaining the operation steps in detail; 2. Professional after-sales service staffs, providing 24-hour online service; 3. Provide free technical training and factory field operation teaching Contact Me Smile Ji Jinan GoodCut CNC Machinery Co.,Ltd. Wechat/Whatsapp: 008618396857273 Email/Skype: smileji@goodcutcnc.com

•
•
