Preces apraksts

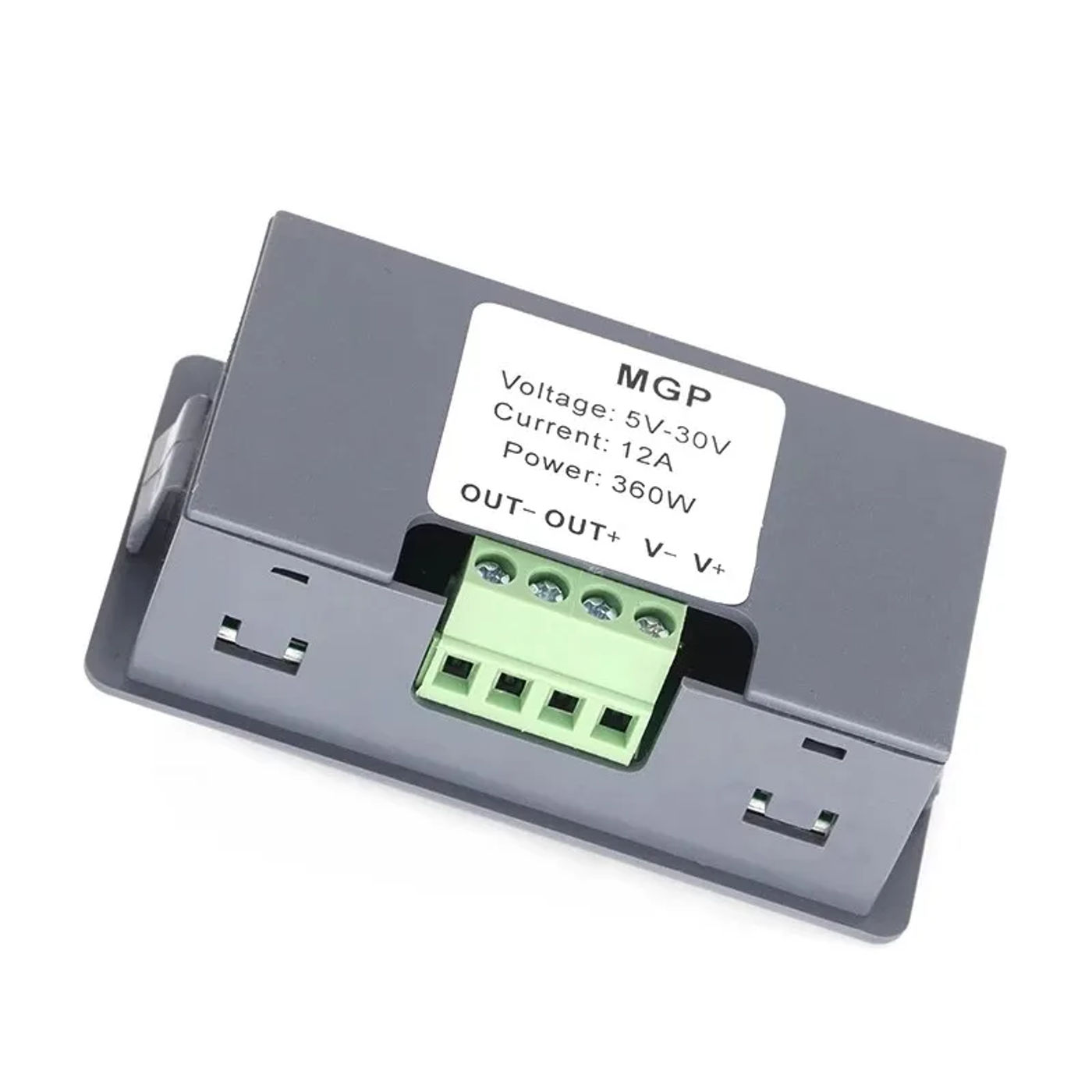

• Parameter 1 Working voltage: DC5V~30VDC (note that the positive and unfavourable poles should not reversed, and do not hook up with AC) 2 Rated current: 12A, maximum current 20A 3 Maximum power: 360W 4 Working frequency: 1KHz~99KHz adjustable, 1KHz stepping, the default frequency is 20KHz, and the accuracy is set 1%; (the increased the frequency, the extra MOS tube heats up, try to favor a low frequency) five Display value range: 00 adjustable, representing the minimal obligation cycle ~ the maximum responsibility cycle 6 Slow beginning time: 0 seconds 7 Slow stop time: 0 seconds eight Step size: 0 step would be chosen 9 Product size: 79mm*43mm*26mm Installation opening size: 39*76 10 Product weight: 42g (net weight), 65g (including packaging) Package included: 1 x ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver ZK-MGP PWM DC Motor Speed Controller 1KHz-99KHz Frequency Adjustable Motor Governor LED Dimming DC 5-30V 12A Dual MOS Driver

•
•
•
•
•
