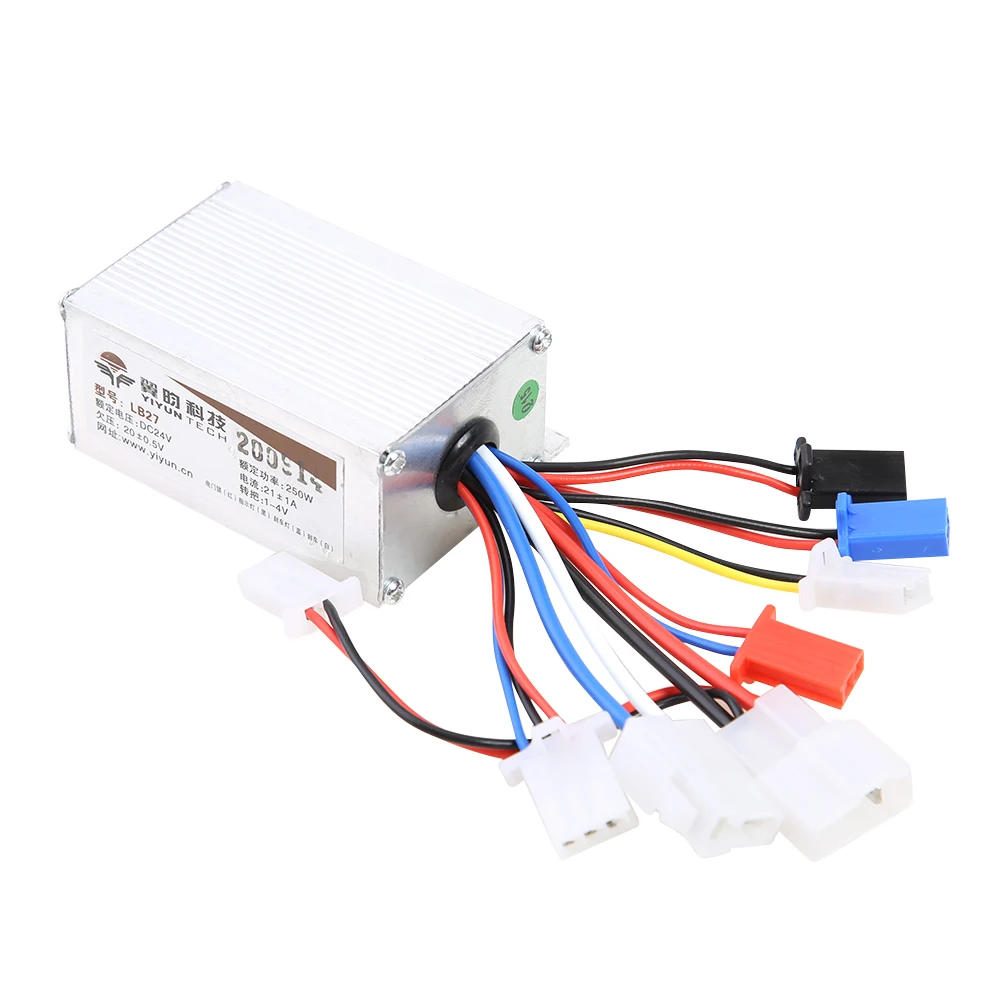

• 24V 250W E–Bike Scooter Brush Motor Controller for Electric Folding Bicycle Accessories Specification: Material: aluminum alloy physique Color: Silver Body size: about 80x60x35mm/3*2*0 Net weight: About 120g Working voltage: 24 V Power: 250W Speed regulating handle: 1–4V Brake handle: mechanical usually open Under voltage protection: 20V Controller wiring instructions: For the motor to work, at the very least 4 connectors ought to be connected First, the 2 thicker ones on the controller are the blue and white wires linked to the motor (blue positive/white negative), the blue cord is attached to the purple wire of the motor, and the white cord is attached to the black twine of the motor Secondly, the two thicker crimson wires and black wires of the controller are connected to the battery, the red wire is connected to the high–quality electrode of the battery, and the black wire is hooked up to the unfavorable electrode Third, connect the connector of the rate management manage (the velocity management manage has 3 wires, and the red wire should be linked to the purple wire and the black cord to the black wire) The twine with the pink plastic head is connected to the electric door lock, open the electrical door lock, and the motor can run by means of turning the manage Blue plastic head connected to brake gentle White plastic head, black + yellow twine to brake Black plastic head connected with indicator light The black + red line extending from the most important interface wire is hooked up to the charging port Note: 1 Due to the various computer screen and lightweight effect, the actual shade of the object is probably barely various from the colour confirmed at the images Thank you! 2 Please enable 1–3cm measuring deviation due to guide measurement Packages: 1 x Brush Controller

•
•
•
•
•
