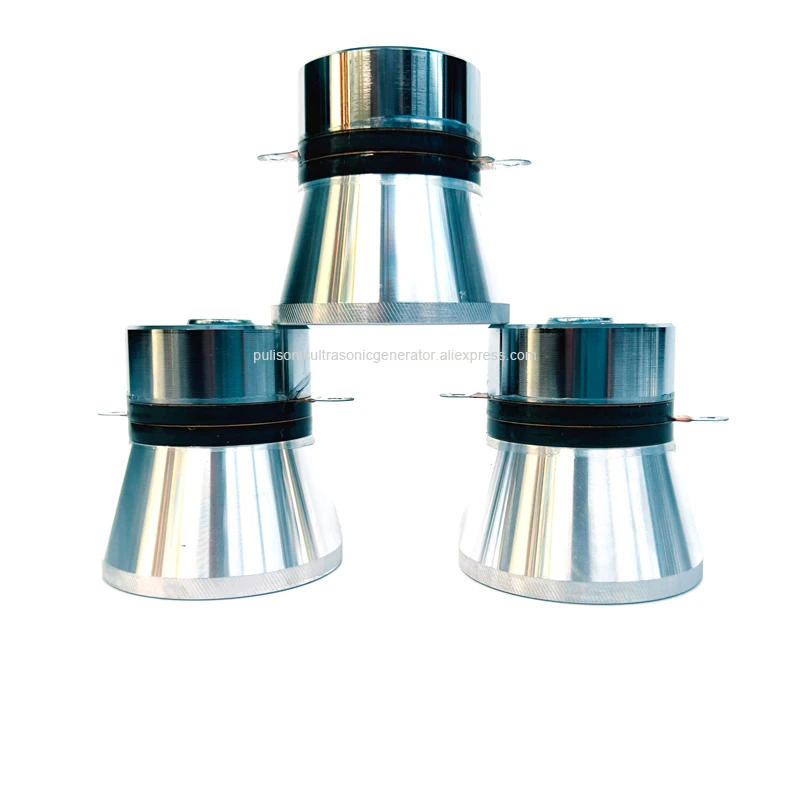

• 28khz 120W PZT4 Piezo Ceramic Vibration Ultrasonic Transducer For Auto Parts Ultrasonic Cleaner Machine Introduction to ultrasonic transducer:Ultrasonic vibrator, additionally known as ultrasonic vibrator, is a kind of ultrasonic transducer and the core element of ultrasonic cleaning machine. Industry ordinary name: ultrasonic transducer, which belongs to piezoelectric ceramic materials and one of the leading equipment of ultrasonic cleaning machine. In terms of power, a unmarried ultrasonic vibrator is 60W and 100W. Frequency: 20kHz, 25kHz, 28kHz, 33khz, 40KHz, 54khz, 68KHz, 80kHz, 100kHz, 120kHz, 135KHz or higher; There are differences in shape: straight column, horn, etc. Features of ultrasonic transducer: 1. High performance: high mechanical Q value, high conversion performance and nice quality; 2. Ultrasonic vibrator transducer has huge amplitude and superior performance; 3. Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic materials has nice warmth resistance, can develop the temperature range of use, at the identical time, the Q payment is high, the resonance impedance is small, and the heat know-how is small; 4. The appearance of the ultrasonic vibrator transducer is clean, free of rust, no apparent dents and scratches. The mechanism of ultrasonic cleansing transducer is to make use of the bodily results comparable to cavitation, radiation stress and sound move within the cleaning liquid. It can exfoliate the machinery produced via way of the grime at the cleansing parts, and can additionally promote the chemical reaction between the cleansing liquid and the dirt, in an effort to obtain the point of cleansing the object. The frequency of the ultrasonic cleaning machine would be chosen by way of 10~500 kHz consistent with the size and purpose of the cleaning material, commonly greater than 20~50 kHz. With the rise of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleansing has change into extra and extra widely utilized in varied industries, agriculture, family members equipment, electronics, automobile, rubber, printing, aircraft, food, health center and scientific research. adjustments in appearance or inside structure attributable to ultrasonic transducer upgrades or optimizations shall in the end be in accordance with the particular product. Keywords of ultrasonic transducer:ultrasonic cleansing transducer,ultrasonic washing transducer,ultrasonic cleaner transducer,piezoelectric ultrasonic transducer,low frequency ultrasonic transducer,ultrasonic piezo transducer,ultrasonic tub transducer,piezo ultrasonic transducer,dual frequency ultrasonic transducer,multi frequency ultrasonic transducer,ultrasonic sensor,ultrasonic vibrator,ultrasonic oscillator,ultrasonic converter,ultrasonic translator,ultrasonic adopter TypeLength(mm)Weight(g)Frequency(KHz)Resonance Impedance (Ω)Static Capacity (pF)±10%Input Power(W)PLS-QXHNQ20100 949002010-205200100PLS-QXHNQ25100 777102510-206600100PLS-QXHNQ28100 666242810-206600100PLS-QXHNQ2560 775302510-20540060PLS-QXHNQ2860 684702810-20380060PLS-QXHNQ2850 824252810-20410050PLS-QXHNQ3360 584203310-20380060PLS-QXHNQ4060 563104010-20540060PLS-QXHNQ4050 573004010-20410050PLS-QXHNQ5435 361355410-20320035PLS-QXHNQ6860 804606810-20380060PLS-QXHNQ68120 675886810-207800120PLS-QXHNQ8060 603258010-20540060PLS-QXHNQ12060 5626012010-20540060PLS-QXHNQ13550 5421513510-20420050

•
•
