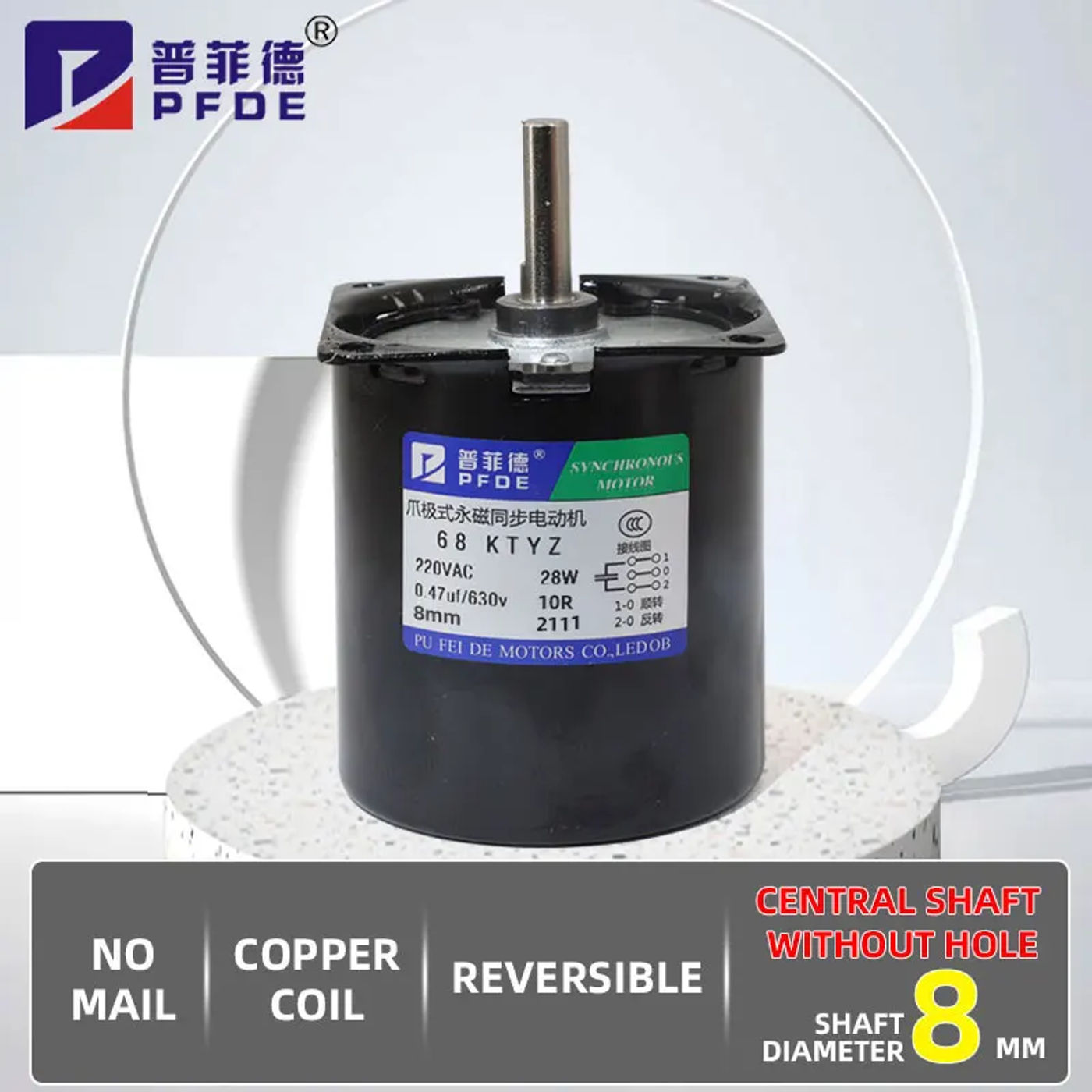

28W 68KTYZ Permanent Magnet Synchronous Motor Central Shaft 8mm Without Hole Forward Reverse Controllable AC Electric Motor 220V
Notice!
In order to facilitate the purchase, we have added the option of Bracket If you just take these one options, you will not get a whole Synchronous Motor, Only one bracket might be shipped individually
1 68KTYZ Mini 220V AC Permanent Magnet Synchronous Motor
2 The motor has the following voltage options: AC 220V
3 AC 220V ; You can desire the no load velocity have : 2 ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 110rpm
Rated torque between 3 To one hundred KGF; Select a no load speed in AC 220V, there'll be corresponding rated torque,

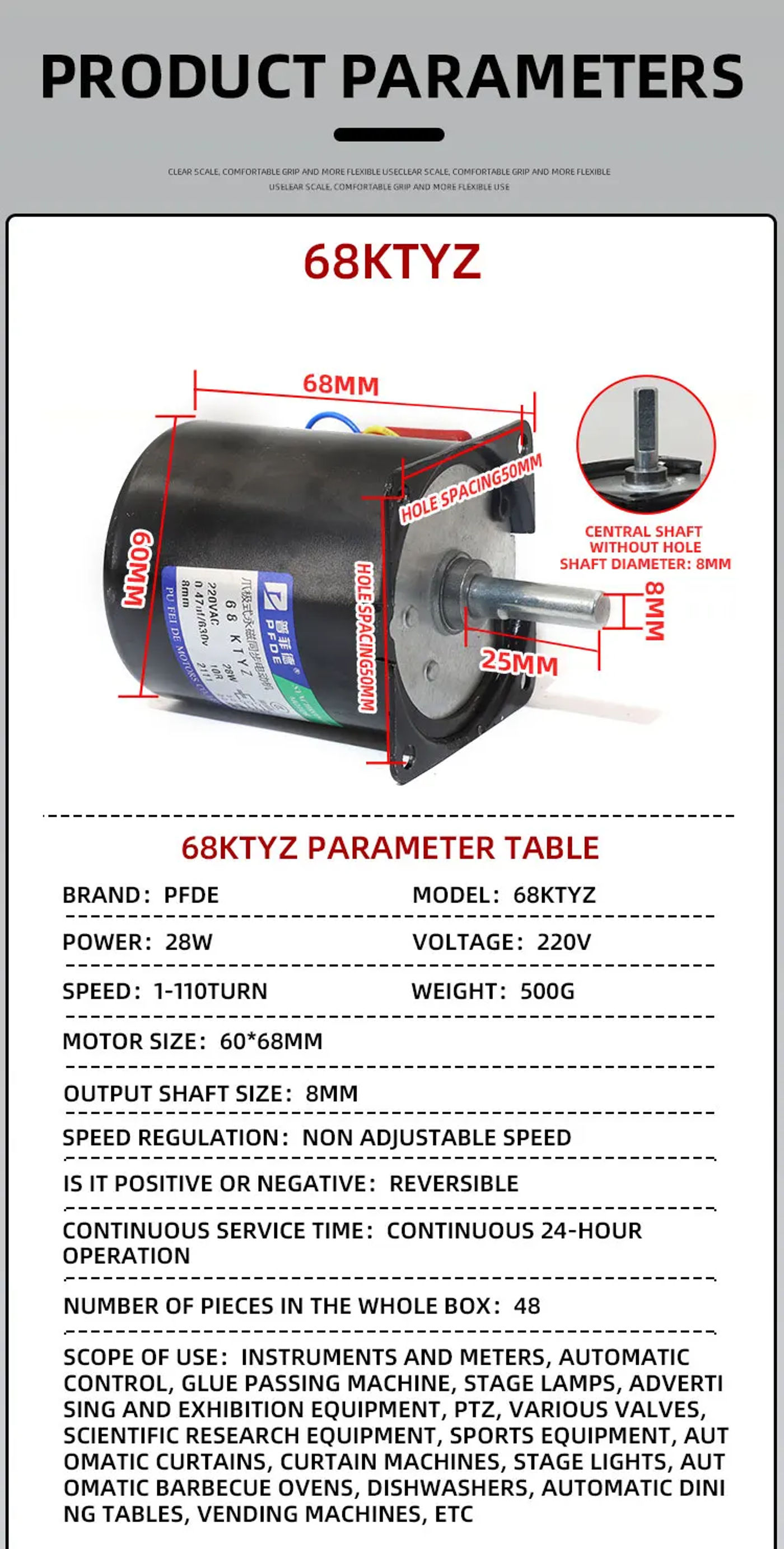

please talk over with the parameter table under
four The route of rotation of the motor : CW and CCW; Support Reversed ; But the rate of this motor is fixed, the rate cannot be adjusted
five Power : 28W
6 Working temperature : The lowest temperature is -10 levels Celsius to the best temperature of 70 degrees Celsius
7 Outstanding aspects of the motor: The motor is an everlasting magnet synchronous motor ; Internal is metallic gears ;
Low speed and low noise 30dB ; Support continual operation for twenty-four hours ; Speed adjustment is not supported ;
5,000 hours of existence under typical use ; Use wonderful materials ; Small size ; High torque ; Low strength consumption ; Light weight and easy to apply
8 Motor application range : Automatic fish fry shelf; Automatic eating table; Curtain machine; Crib; Stage Lighting; Dishwasher; Automation control, and so forth
nine For the torque, size, product picture or different informations of the motor, please see the following news
