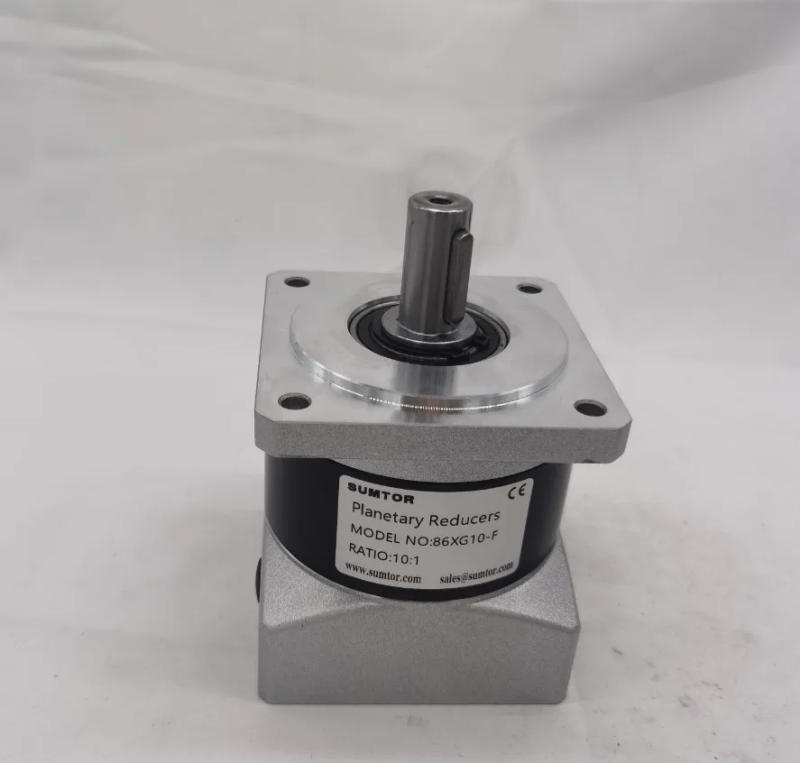

• 3: 5:1 10: 1 Nema34 Economic typePlanetary Gear Reducer for Nema 34 Stepper NEMA34 Precesion Engine Version Reducer 50N. M (6944oz-in) Rated Torque Moment Long Service Life this is the recent edition of the ratio of 3:1,5:1,10: 1. with the next precision than the old version.if you wish a different ratio, please contact us.fit with the 34 stepper motor, only gearbox.Input motor shaft request :The input of the economical Nema 34 planetary reducer assembly is the keyway (ie the output shaft of the motor should be a motor with a keyway to use the economical Nema 34 planetary reducer)The distinction between the economical and precision Nema34 planetary reducer:First of all: the commercial and exact set up methods are different. The input of the economical retarder assembly is the keyway (ie the output shaft of the motor is an assembleable keyway motor); the enter of the precision reducer assembly is clamped and the enter motor shaft is a flat or circular shaft or keyway. The shaft could be fixed (note: the keyway shaft would be removed after the hot button is removed).Second, the economical and precision planetary gearboxes have an identical drawings and dimensions. The leading difference is: the fabric is different. Accurate tools units are superior to economical tools units in terms of transmission performance and accuracy, as well as warmth and noise and torque output stability. Motor shaft input request:Suitable with Nema34 shaft Stepper motor 14mm Standard diameter * 32 or 37mm Length (including height pad). (plane and key axis both available)Function description of NEMA 34 epicyclical reducer planetary reducer:Low noise levelAdjustable speedCharacteristics of all lifeHigh Accuracy Angle of passageSpecification Motor Stepper motor Nema34 Planetary gearbox 3:1,5:1,10: 1:Length = 80 mmDimension and connection nema34 Planetary tools (planetary gear):Planetary Gear Reducer * 1

•
•
•
•
•
