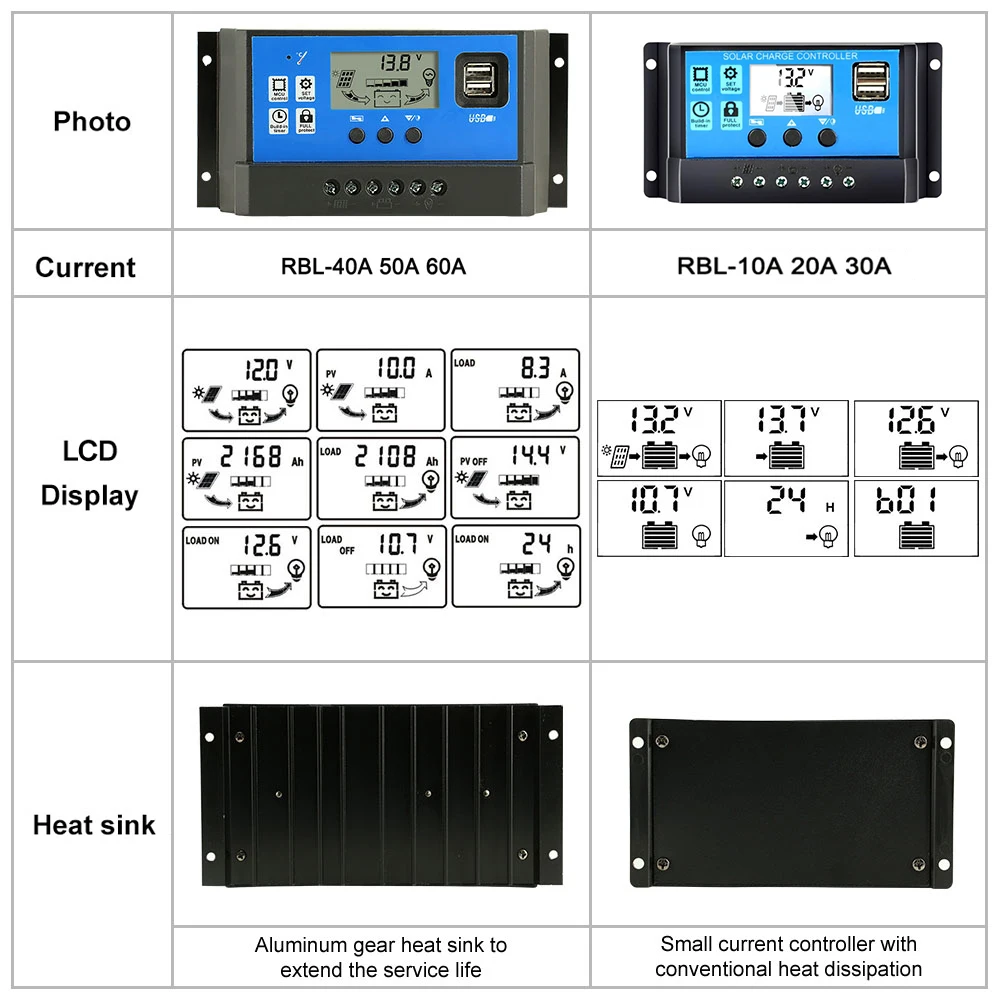

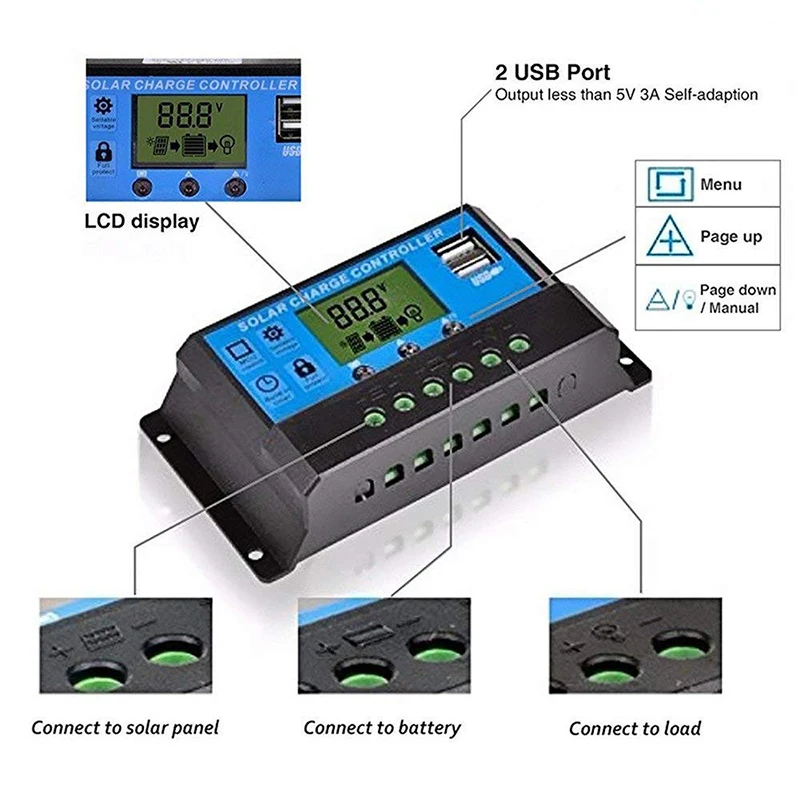

• 60A 50A 40A 30A 20A 10A Solar Charge Controller PWM 12V 24V Regulator Solar Panel PV Home Battery Charger LCD Dual USB 5V Output Note: To buy 40A, 60A controller Please click on the picture RBL-10A , Max Voc : 24V (12V), 48V (24V); Max Power: 120W (12V), 240W (24V) RBL-20A , Max Voc : 24V (12V), 48V (24V); Max Power: 240W (12V), 480W (24V) RBL-30A , Max Voc : 24V (12V), 48V (24V); Max Power: 360W (12V), 720W (24V) RBL-40A , Max Voc : 24V (12V), 48V (24V); Max Power: 520W (12V), 1040W (24V) RBL-50A , Max Voc : 24V (12V), 48V (24V); Max Power: 650W (12V), 1300W (24V) RBL-60A , Max Voc : 24V (12V), 48V (24V); Max Power: 780W (12V), 1560W (24V) Features 1 industrial micro controller 2 LCD display,all adjustable parameter 3 4-stage PWM price management four short-circuit protection,open-circuit protection,reverse protection,over-load defense 5 mosfet Reverse recent defense ,low warmth manufacturing Product Specification: MODEL RBL-10A RBL-20A RBL-30A RBL-40A RBL-50A RBL-60A Battery Voltage 12V 24V Auto Charging Current 10A 20A 30A 40A 50A 60A Discharging Current 10A 10A 10A 20A 30A 30A Max Solar input 48V(for 24V battery) 24V(for 12V battery) Equalization 14(Sealed) 14(Gel) 14(Flood) Float charge 13(defaul,adjustable) Discharge stop 10(defaul,adjustable) Discharge reconnect 12(defaul,adjustable) Charge reconnect 13V Voltage of open gentle Solar Panel8V(Light lights delay) Voltage of shut gentle Solar Panel8V(Light off delay) USB output 5V/3A Self-consume <10mA Operating temperature -35°C~+60°C Size 133*70*35mm 188*90*47mm Connection 1 the battery to the payment regulator - plus and minus 2 the photovoltaic module to the regulator - plus and minus three Connect the buyer to the price regulator - plus and minus The opposite order applies when deinstalling! An unsuitable collection order can damage the controller!

•
•
•
•
•
