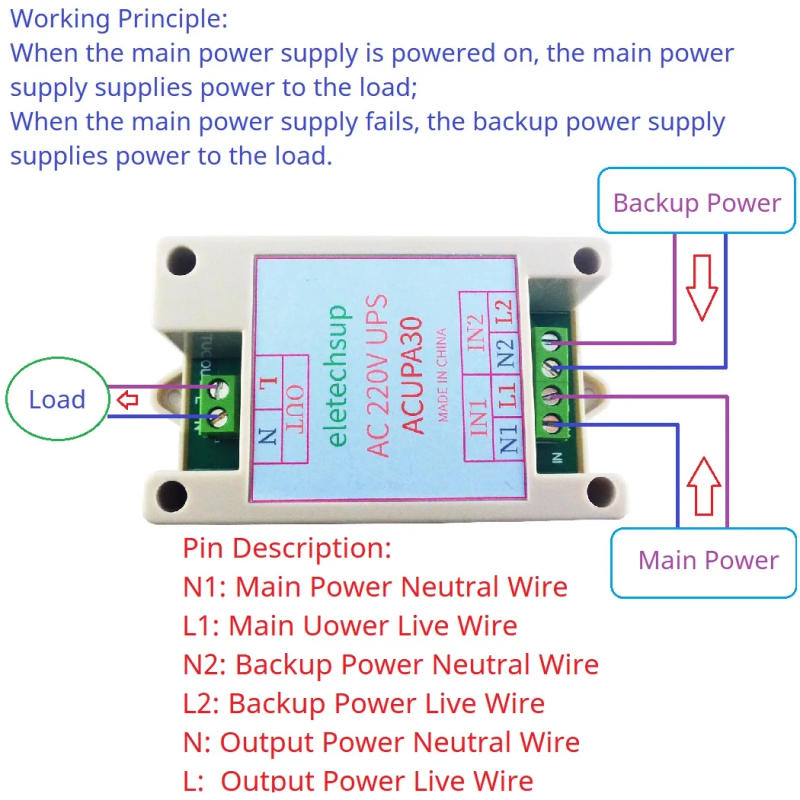

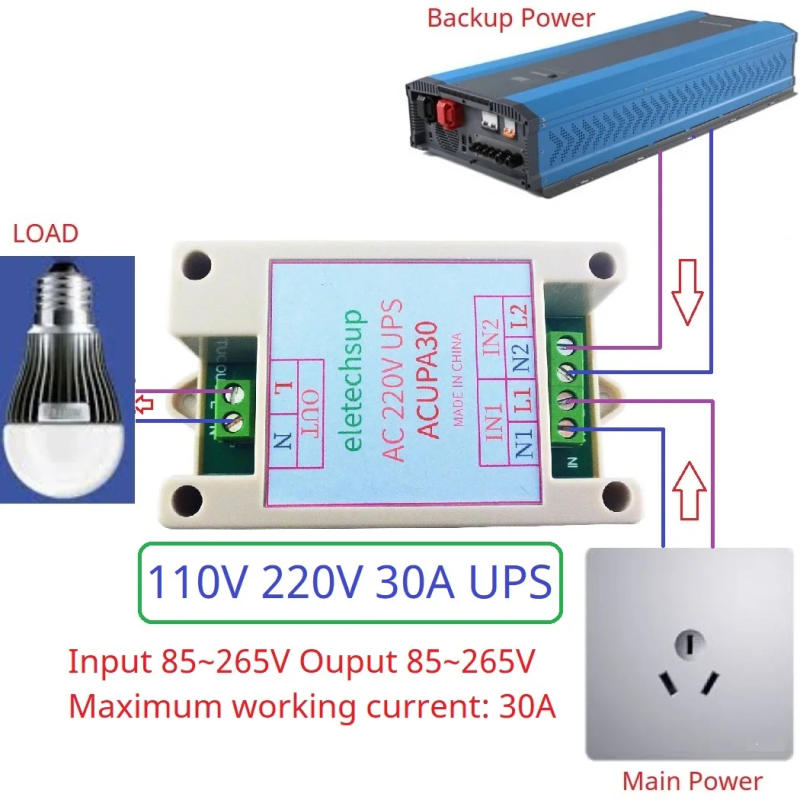

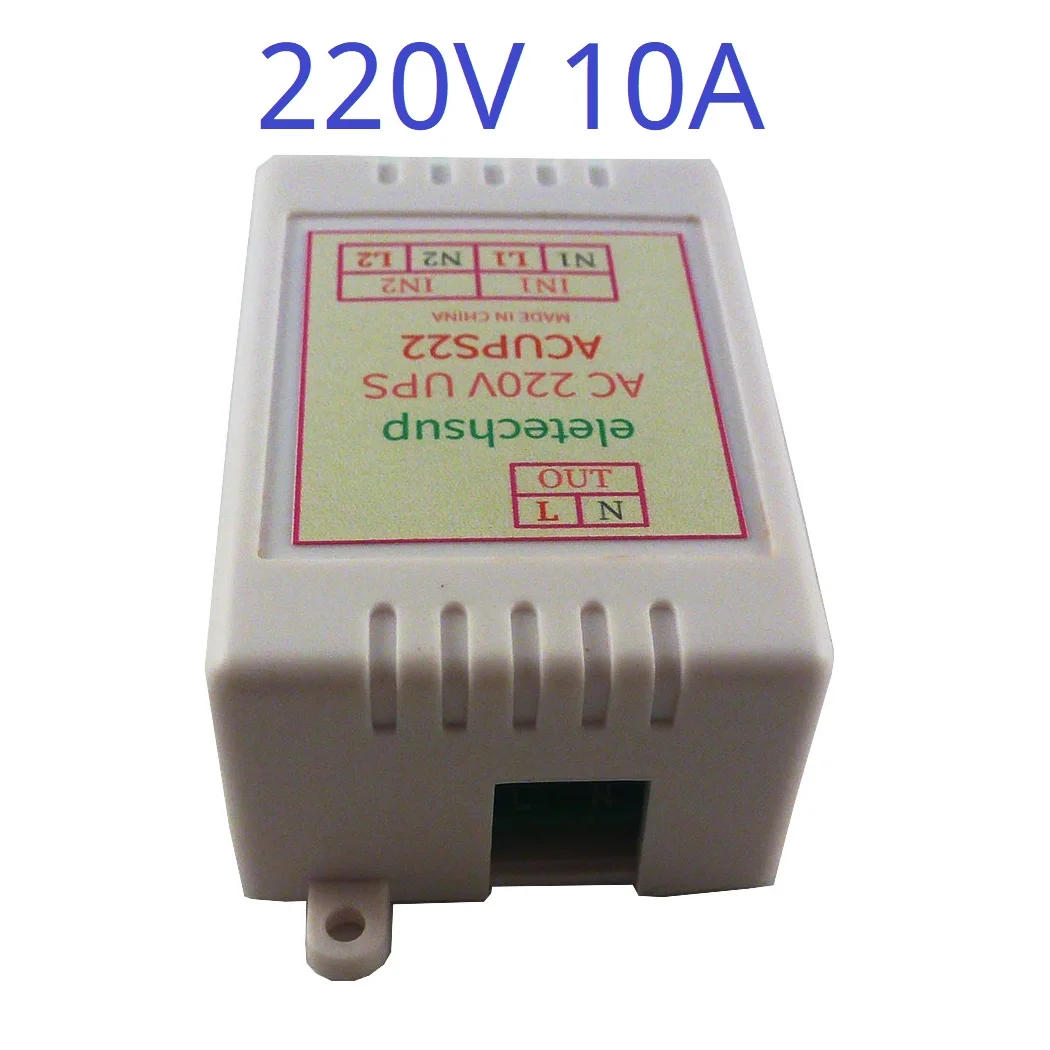

• Product Name : 30A AC 110V 120 220V UPS Module 50 60HZ Automatic Switching Backup Power Supply Board Power Failure Automatic Transfer Switch Packing list: 1PCS ACUPS22/ACUPA30 220V 10A/30A UPS Module Description: ACUPS22 220V 10A UPS : Input voltage : AC 180-265V /50-60HZ Output voltage : Equal to the enter voltage Maximum load current : 10A Power off switching time: 200-300MS Operating ambient temperature : -40° to +85° Storage temperature : -65° to +125° Size: 50*34*22MM Weight :31g ACUPA30 110V 220V 30A UPS : Input voltage : AC 85-265V /50-60HZ Output voltage : Equal to the enter voltage Maximum load recent : 30A Power off switching time: 200-300MS Operating ambient temperature : -40° to +85° Storage temperature : -65° to +125° Size: 80*50*31MM Weight :84g Pin Description: N1: Main Power Neutral Wire L1: Main Uower Live Wire N2: Backup Power Neutral Wire L2: Backup Power Live Wire N: Output Power Neutral Wire L: Output Power Live Wire Working Principle: When the foremost energy supply is powered on, the major strength supply materials power to the load; When the major energy delivery fails, the backup energy supply supplies energy to the weight Applications: WIFI router network kit uninterrupted energy supply Uninterrupted power delivery for industrial kit resembling PLC/HMI/industrial control host Solar battery Diy RV Backup Power Supply Diy Computer router room backup energy supply equipment Rural orchard backup energy equipment

•
•
•
•
•
