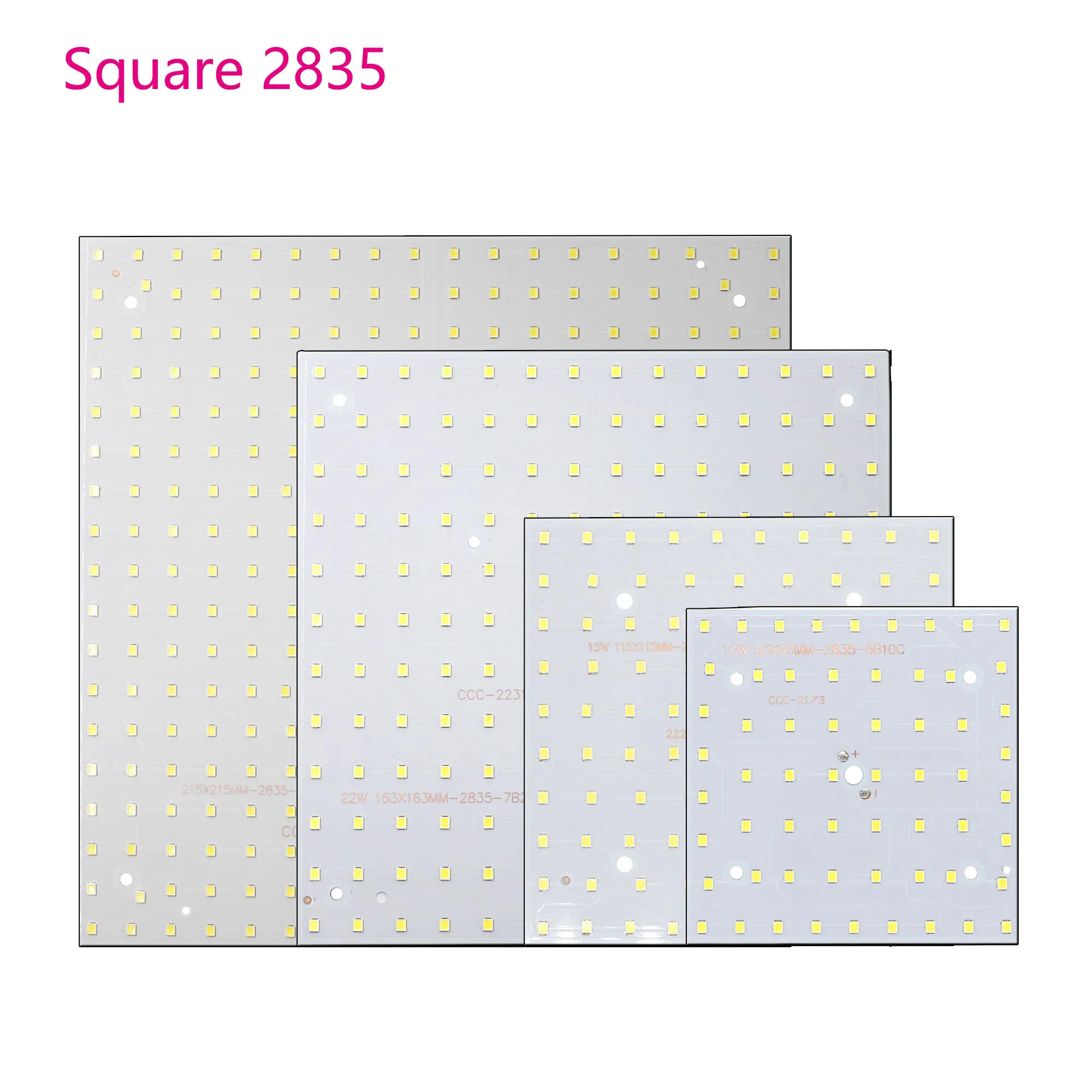

• Lamp bead model: SMD2835 Power: 10W Voltage: DC30-32V Current: 250mA±5% Serial and parallel circuit: 10 collection and 6 parallel Size: 93*93mm(3*3) Crystal size: 15*30mil Number of crystals: 60pcs Crystal name: Epistar chip Lumens: 1000LM Aluminum substrate thickness: 0 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Panel gentle Lamp bead model: SMD2835 Power: 15W Voltage: DC48-51V Current: 250mA±5% Serial and parallel circuit: sixteen collection and six parallel Size: 115*115mm(4*4) Crystal size: 15*30mil Number of crystals: 96pcs Crystal name: Epistar chip Lumens: 1500LM Aluminum substrate thickness: zero (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Panel light Lamp bead model: SMD2835 Power: 22W Voltage: DC72-76V Current: 250mA±5% Serial and parallel circuit: 24 sequence and seven parallel Size: 163*163mm(6*6) Crystal size: 15*30mil Number of crystals: 168pcs Crystal name: Epistar chip Lumens: 2200LM Aluminum substrate thickness: zero (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Panel gentle Lamp bead model: SMD2835 Power: 32W Voltage: DC108-115V Current: 250mA±5% Serial and parallel circuit: 36 sequence and 9 parallel Size: 215*215mm (8*8) Crystal size: 15*30mil Number of crystals: 324pcs Crystal name: Epistar chip Lumens: 3200LM Aluminum substrate thickness: 0 (0) Thermal conductivity of aluminum substrate: 2/(m·K) Application place: Panel gentle

•
•
•
•
