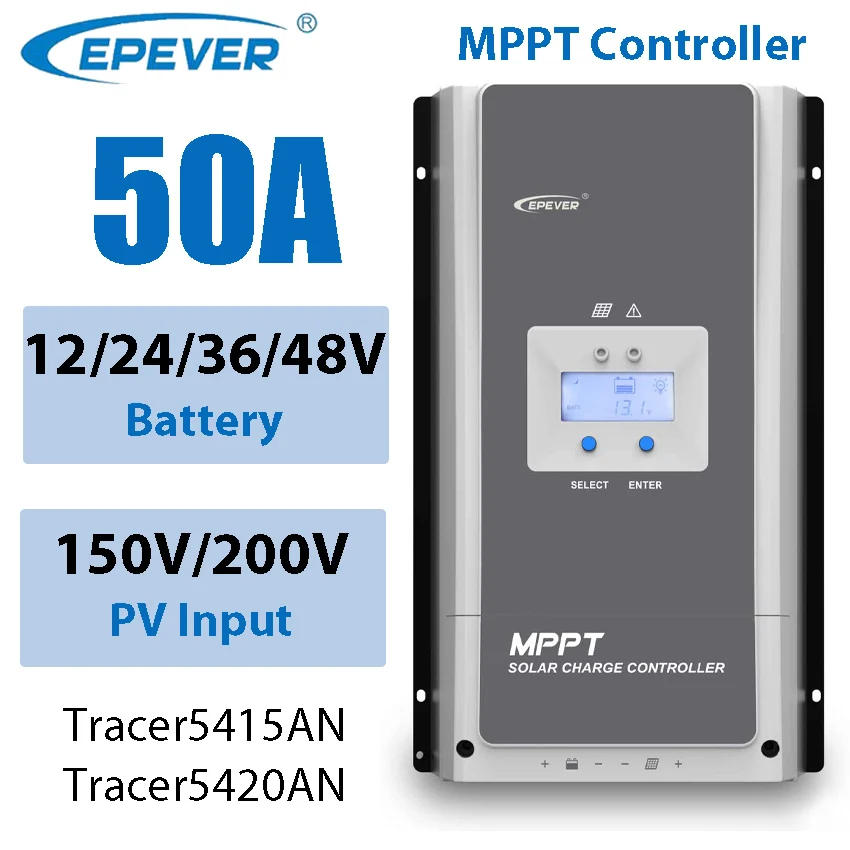

• EPEVER 50A MPPT Solar Charge Controller 12/24/36/48V Battery Auto Identify Max PV Solar Panel Input 150V/200V Tracer5415AN Overview: The Tracer-AN controllers, based on the multiphase synchronous rectification expertise (MRST) and advanced MPPT management algorithm, undertake a dual-core processor and co-negative design This assist points the controllers with instant reaction characteristics, excessive reliability, and business criteria MSRT ensures a high conversion performance in any charging power, which sharply improves the solar system&;s calories performance The new optimized MPPT monitoring know-how can quick music the PV array&;s max strength level in any problem and acquire maximum energy in real-time The controller can be extensively used for various applications, e, solar RV, family method and field monitoring, and so forth Comply with IEC62109-1 and EN61000-6-1/3 standard certification High high quality and low failure charge substances of ST or IR to ensure the carrier lifestyles Accurate recognizing and monitoring know-how of multi-peaks most strength point Wider MPP working voltage to increase the PV modules&; utilization ratio Support the lead-acid and lithium batteries Program temperature repayment for batteries Real-time calories statistics operate High temperature charging automated power discount function 100 percent charging and discharging within the working surroundings temperature vary Auto-control of software and generator dry contact design to compose a hybrid strength method smoothly Support remote monitoring and parameters setting through the APP or PC application Model Tracer5415AN Tracer5420AN Nominal components voltage 12/24/36/48VDC/Auto Battery type Lead-acid(Sealed/Gel/Flooded)/Lithium(LiFePO4/Li(NiCoMN)O2)/User Battery enter voltage fluctuate 8~68V Rated payment current 50A Rated payment power 625W/12V 1250W/24V 1875W/36V 2500W/48V Max conversion efficiency 98% Tracking efficiency ≥99% MPP voltage differ (Battery Voltage+2V)~144V Max PV open circuit voltage 150V(At minimal working enviornment temperature) 138V(At 25℃ surroundings temperature) 200V(At minimum operating arena temperature) 180V(At 25℃ environment temperature) Equalization voltage Sealed:14,Flooded:14,User-defined:9-17V Boost voltage Gel:14,Sealed:14,Flooded:14,User-defined:9-17V Float voltage Gel/Sealed/Foolded:13,User-defined:9-17V Low voltage reconnect voltage Gel/Sealed/Foolded:12,User-defined:9-17V Low voltage disconnect voltage Gel/Sealed/Foolded:11,User-defined:9-17V Self-consumption 98mA/12V;60mA/24V;50mA/36V;46mA/48V Temperature compensation (for lead-acid battery) -3mV/℃/2V(Default) Relative humidity 5% to 95% (N) Enclosure IP20 Communication interface RS485(5VDC/200mA, Two RJ45 ports in parallel) Grounding Common Negative Operating temperature range -25℃~+60℃(derating above 45℃) Dimensions(LxWxH)(mm) 261 x 216 x 119 Net weight three

•
•
•
•
•
