Açıklamalar

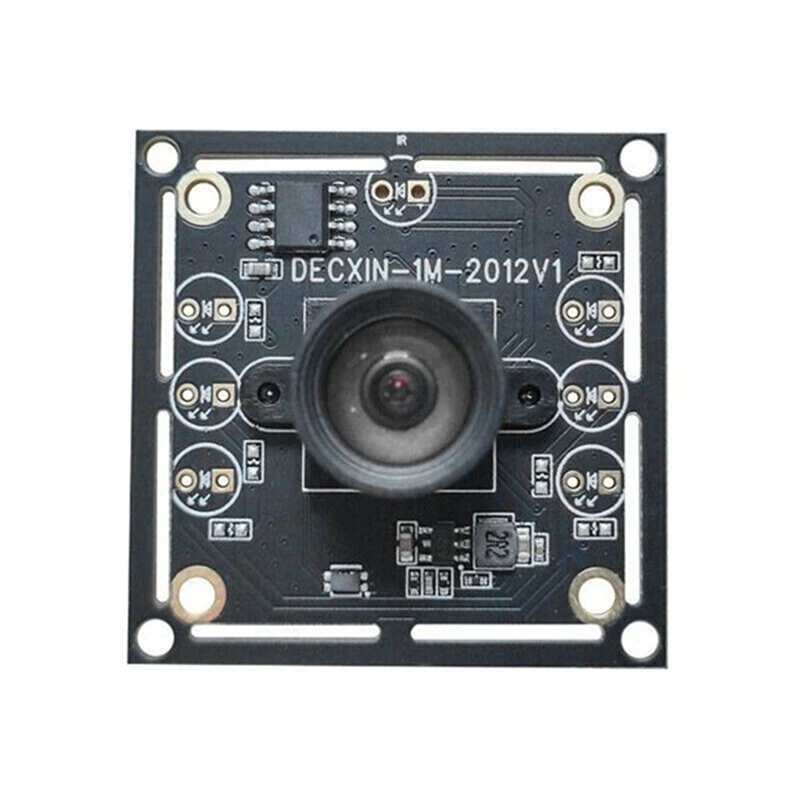

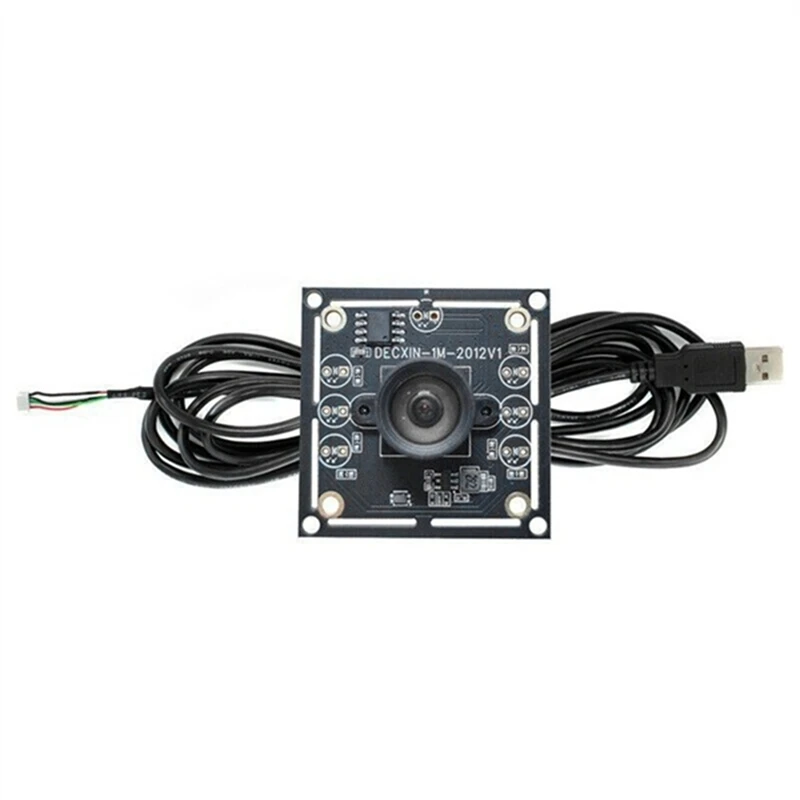

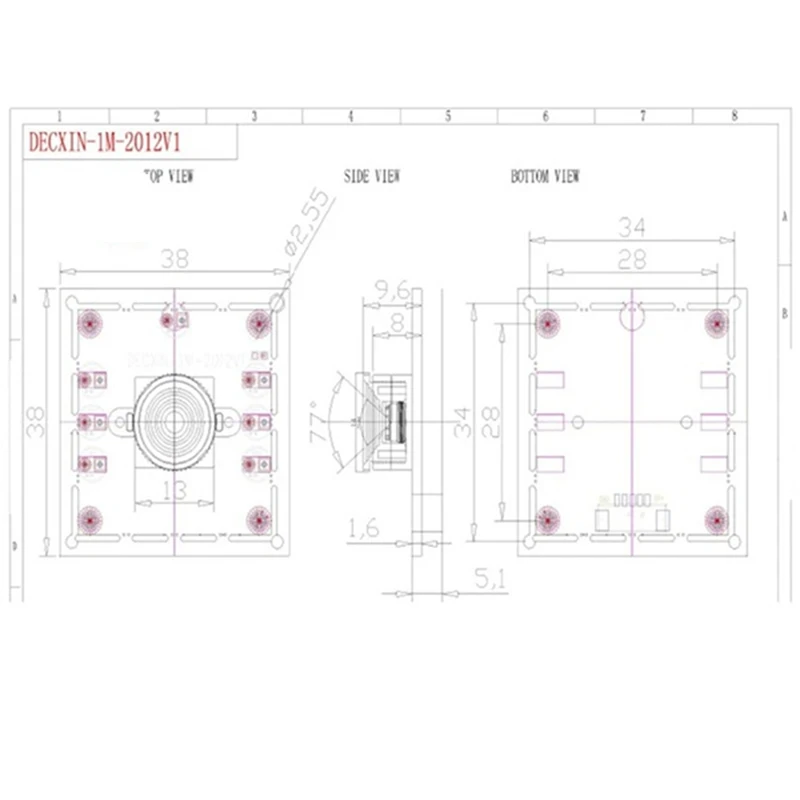

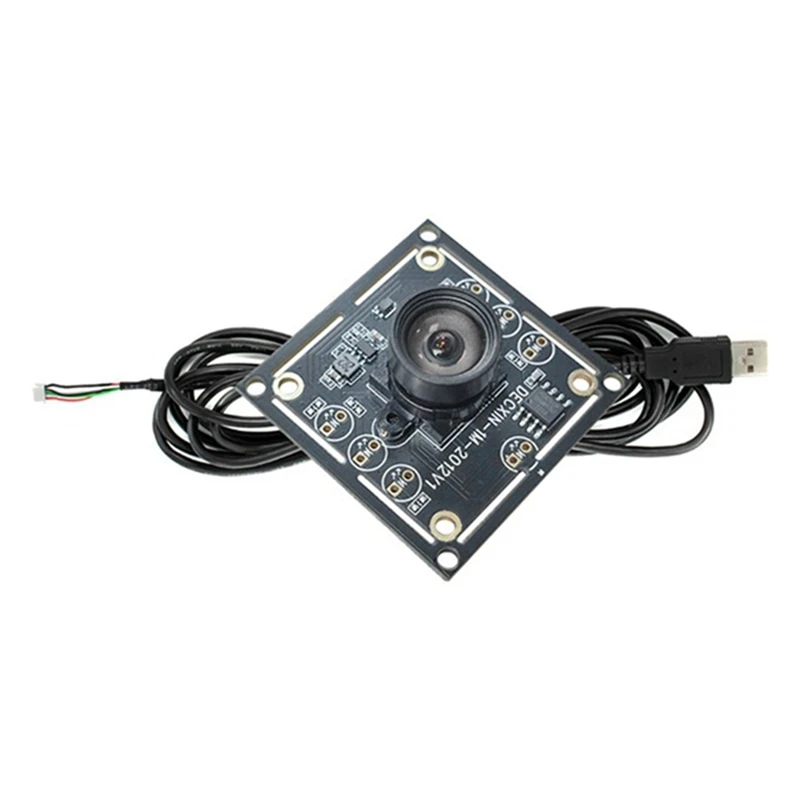

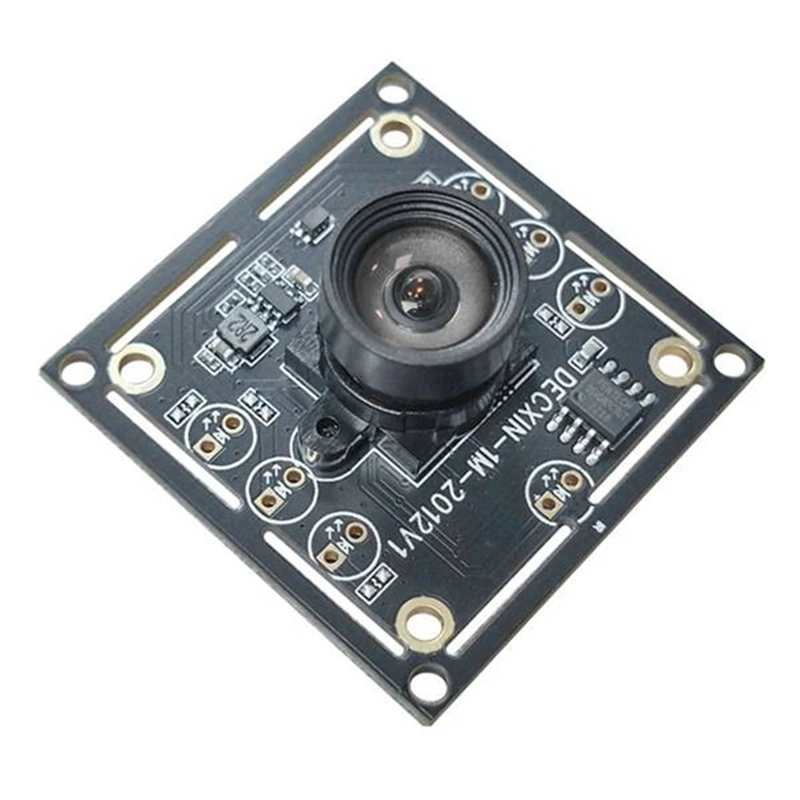

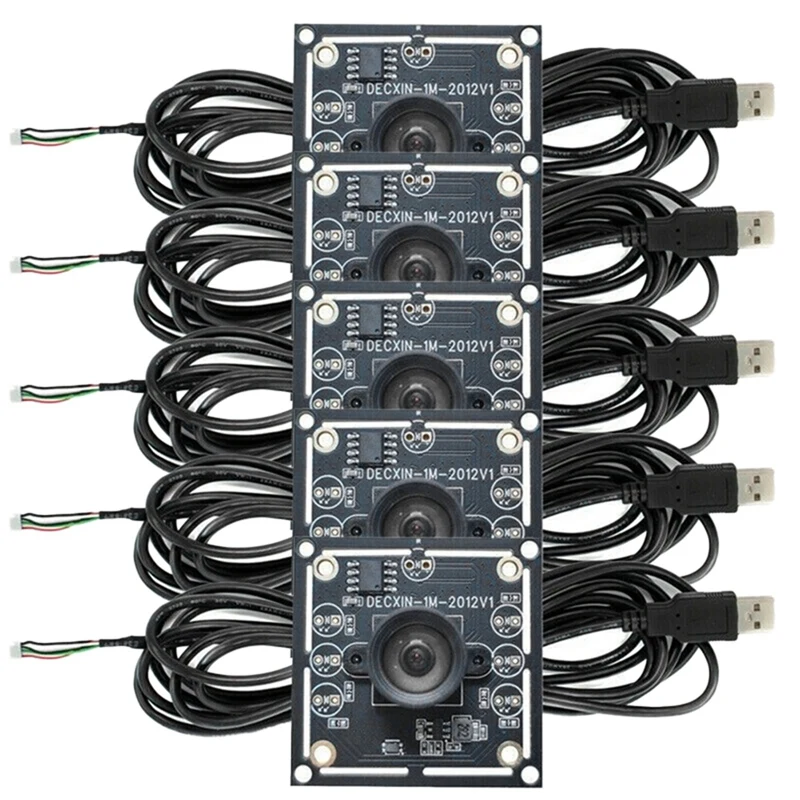

• 1 Photosensitive film: (1/4inch ) 2 The best superb pixel: 1280(H)x720(M) 3 Lens Size: 1/4 inch (4: 3) four Pixel Size: 3 5 Image area: 5 x four 6 Output picture format: MPEG/YUV2 (YUYV) 7 Supported resolutions and frame rates: 1280x720@30fps MJPEG 1280x720 @10fps Yuv 800x600 @30fps MJPEG 800x600 @15fps Yuv 640x480 @30fps MJPEG 640x480 @30fps Yuv eight Camera board meeting technology: SMT nine Focus: Fixed 10 Center definition: 600LW/PH (Center) eleven Signal-to-noise ratio: TBD 12 Dynamic range: TBD 13 Sensitivity: 1/lux-sec@550nm 14 Minimum illumination: zero 15 Shutter type: Electronic rolling shutter / Frame exposure sixteen Interface type: USB 2 High Speed 17 Automatic exposure control AEC: supported 18 Automatic white stability AEB: supported 19 Automatic achieve control AGC: supported 20 Adjustable parameters: brightness/contrast/color saturation/hue clarity/gamma/white balance/backlight contrast/exposure 21 specifications: Size: 1/4 Focal length: 2 Aperture F2 diagonal:77° Interface M12xP0 Colour:Black Material:PC+Plastic Package Contents: 5 x a hundred Degrees OV9732 Camera Module five x 2m USB Cable Only the above equipment content, other merchandise usually are not incorporated Note: Light mirrored image and diverse exhibits could cause the colour of the thing within the picture slightly different from the genuine thing The dimension allowed error is +/- 1-3cm

•
•
•
•
•
