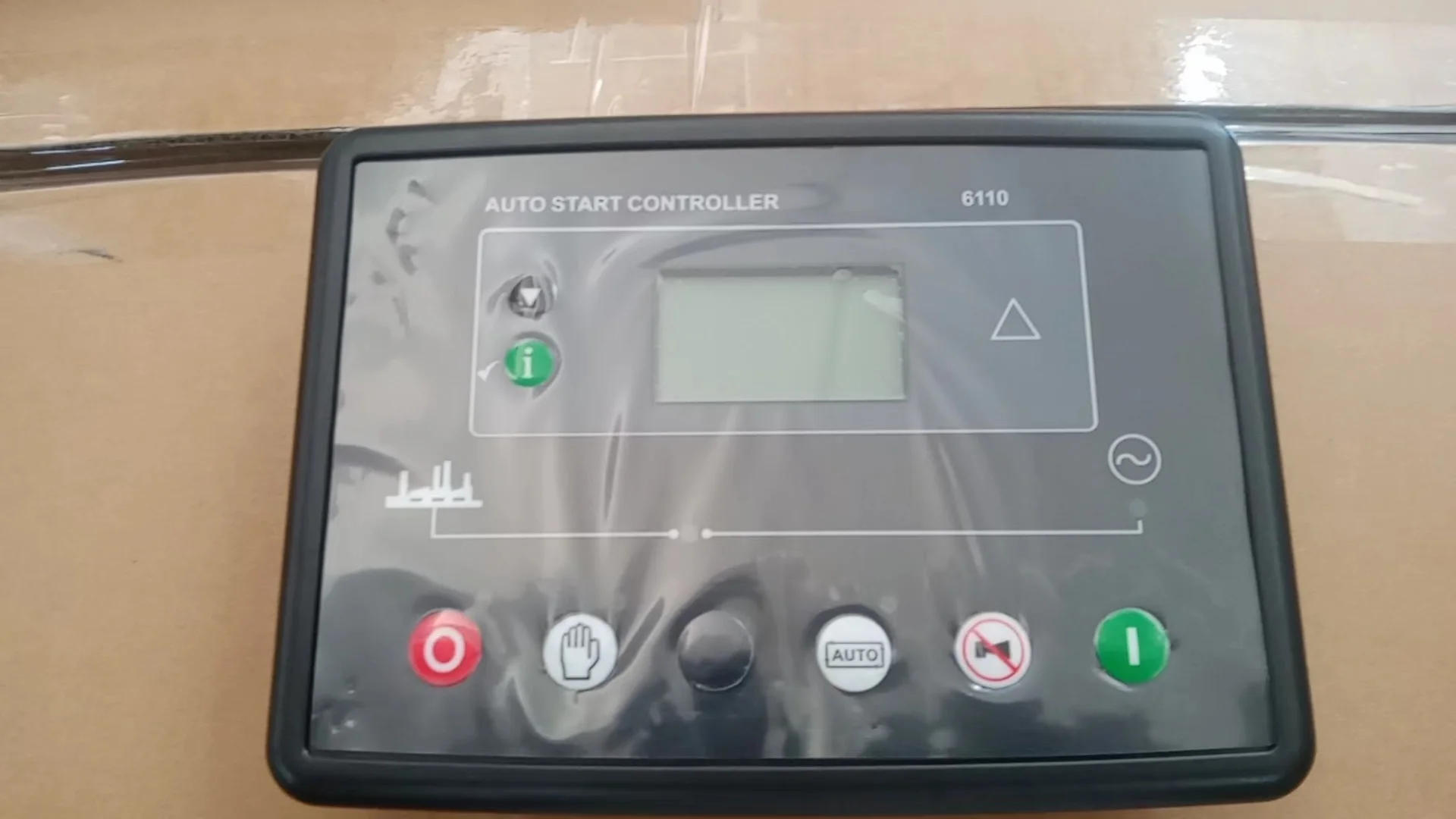

• 6110 6120 DSE6110 DSE6120 Generator Controller Auto Start Module Diesel Genset Control Pannel Product Introduction The DSE6110 is an Auto Start Control Module and the DSE6120 is an Auto Mains (Utility) Failure Control Module appropriate for a good selection of unmarried gen-set functions Monitoring speed, frequency,voltage, current, oil pressure, coolant temperature and fuel level, the modules will exhibit warnings, shutdown and engine repute news on the back-lit LCD display screen and illuminated LED Key Features • Back-lit text LCD show • Front panel editing • LED and LCD alarm indication • Power Save mode • CAN and Magnetic Pick-up/Alt out there (specify on ordering) • PC and front panel configuration • 6 Digital inputs • 3 Analogue inputs • 6 Outputs (4 configurable on Magnetic Pick-up/Alt, 6 configurable on CAN version) • Configurable timers and alarms • Alternative configuration • Event Log (10) • Remote Start input • 3 Phase generator monitoring • Current Monitoring and defense • three Phase Mains (Utility) monitoring (DSE6120 only) • Test button (DSE6120 only) • Battery voltage tracking • Engine pre-heat • Hours counter • Comprehensive shutdown or caution on fault condition Specification CONTINUOUS VOLTAGE RATING：8 to 35 Vdc Continuous CRANKING DROPOUTS：Able to survive zero V for fifty mS, offering supply became at least 10 V before dropout and supply recovers to 5 V This is accomplished with out the desire for inner batteries and backlight aren't maintained during cranking MAXIMUM OPERATING CURRENT： 178 mA at 12 V, ninety five mA at 24 V MAXIMUM STANDBY CURRENT：88 mA at 12 V, 50 mA at 24 V MAINS (UTILITY) DSE6120 ONLY VOLTAGE RANGE：15 V - 333 V AC (L-N) FREQUENCY RANGE：3 Hz to 75 Hz WORKING TEMPERATURE RANGE：-40 oC to +85 oC Wireless Data Transfer Unit(DTU), mainly assist to bridge between the instruments of RS232 and PC across the GPRS network and the Internet is a solution of distant wireless data transmission,and it may be positioned by GPS With messaging capabilities, you could possibly move data simultaneously send and acquire textual content messages for unattended purposes Main features: 1 range power supply,6V ~ 26V obtainable 2 data transmission, clean to use 3 to information middle by means of DNS or IP tackle 4 kind of operating mode,online, offline when idle,power-down when idle five up by way of SMS or phone calling 6 connect with data center if it&;s offline 7 be configured locally or remotely by graphic software from PC 8 be configured and maintained by means of SMS Genetator Remote Monitoring Case: Based on the wireless move network provided by DTU,we can remotely management the working of generator Facilitated By the message operate on DTU linked with controller utilizing additional protocal,we can management the generator operating and get hold of generator alarm with mobile phone DTU is certain to controller,they can&;t be seperated with out password you seperated them forcibly,controller data an alarm or rejects besides generator subsequent time is very useful in generator leasing DTU and combine it in current equipments with RS232,we can follow,monitor,manage those equipments

•
