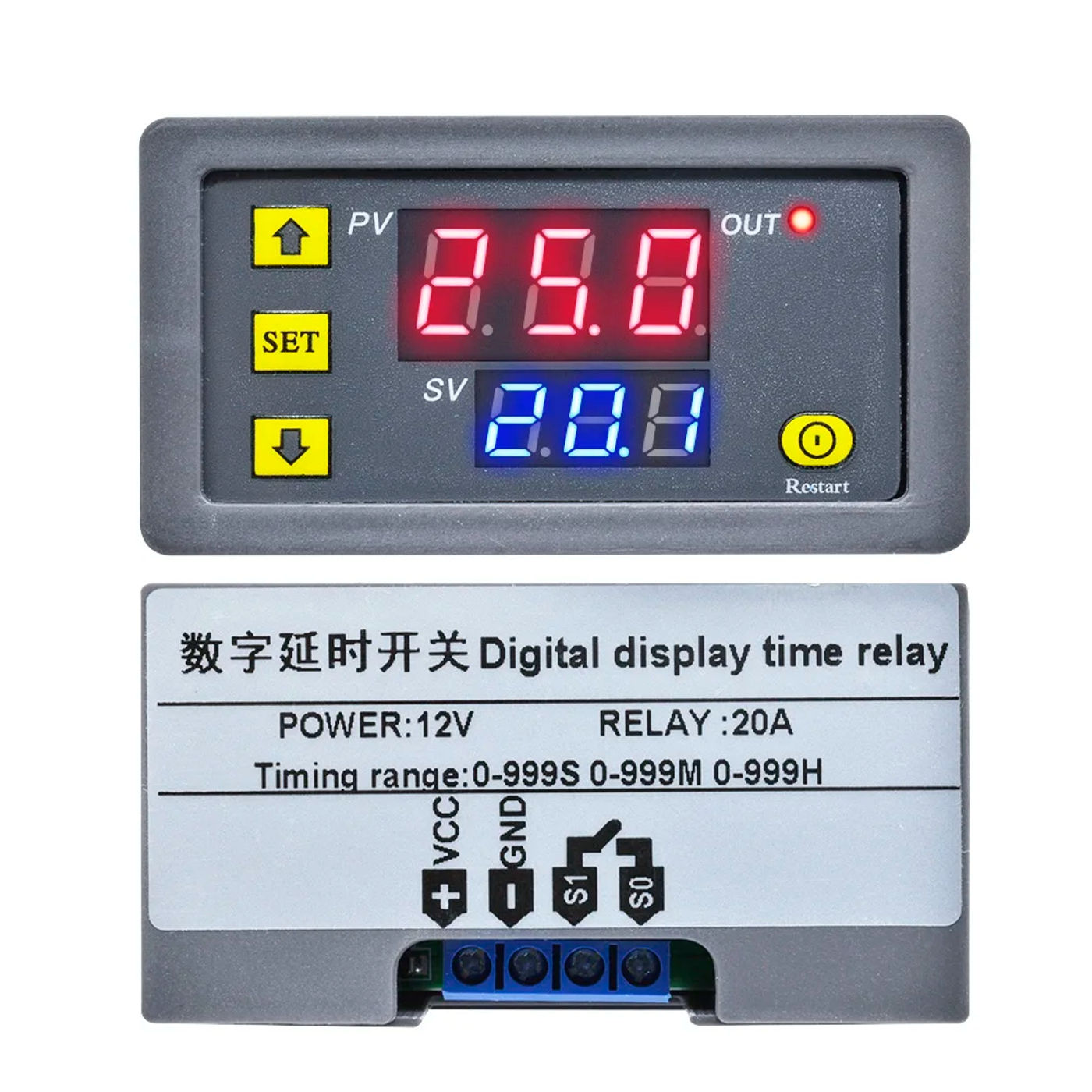

• AC 110V 220V DC 12V Digital Time Delay Relay LED Display Cycle Timer Control Switch Adjustable Timing Relay Time Delay Switch Specifications: Timing range: 0-999s,0-999m,0-999h Power delivery voltage: DC12V /AC 110V 220V Relay: 20A Working current: 10A(maximum) Power: 1500W (maximum) Size: 79 x 26 x 43mm/2" x 1" x 1" Hole size: seventy two x 40mm/2" x 1"Instruction Manual: 1 surroundings the data, you should wait 6 seconds,6s post modules mechanically save memory set information 2 SET key as soon as to go into the time atmosphere mode,the pink LED flashes, press the main to increase or lower the setting time T1 three setting time T1,short press the SET key again, the golf green LED flashes,and the time is decided by way of pressing the most important Time T2, T2 time setting is completed,press SET key again, the formula will routinely save the memory surroundings time or wait for 6s, 6s module will mechanically save the information reminiscence 4 press SET,enter parameter setting mode are two units of parameters for the consumer to select P0, P1 press SET within the latest mode to change between P0 and P1 5 P0 parameter would be set by way of urgent the main to regulate their very own timing mode the P1 parameter could be set via including and Subtracting keys paintings mode P0--0:T1 Timing mode is moment P0-1: T1 timing mode is mins P0--2:T1 Timing Time mode is hour P1--0:Delay T1 time,relay pull(T1 timer) P1--1:Relay release after T1 time put off (T1 timer) P1--2:Delay T1 time,relay pull(T1 timer),and then relay launch after T2 time delay(T2 timing),then it is accomplished P1--3:Relay release after T1 time delay(T1 timer),then delay T2 time,relay pull(T2 timing),then it is achieved P1--4:Delay T1 time,relay pull(T1 timer),and then relay launch after T2 time delay(T2 timer),cycling P1--5: Relay release after T1 time delay(T1 timer),then postpone T2 time,relay pull(T2 timer),cycling Included:1 x Dual Display Time Delay Relay

•
•
•
•
•
