Açıklamalar

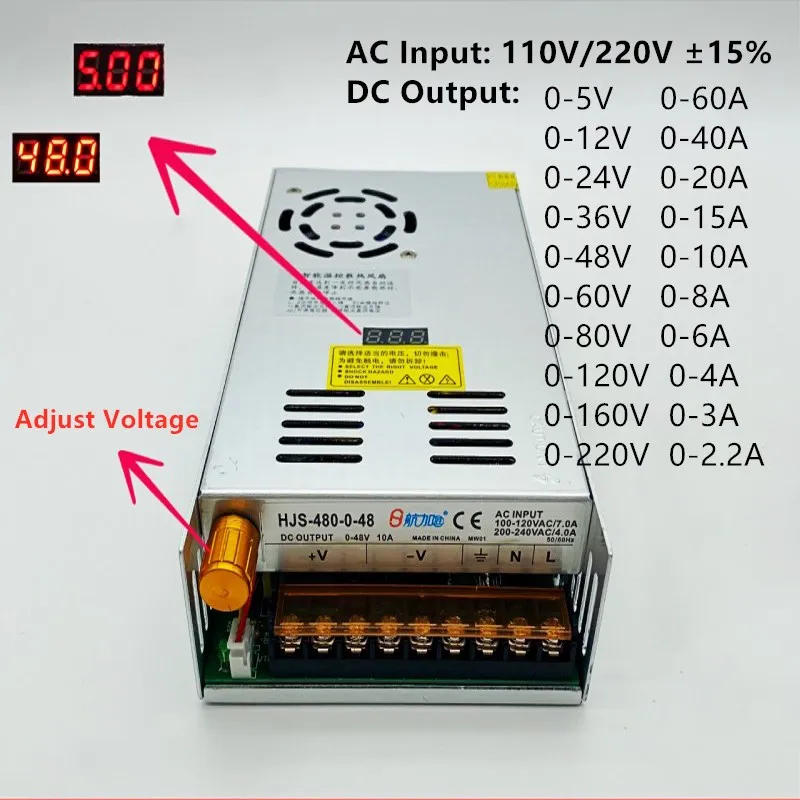

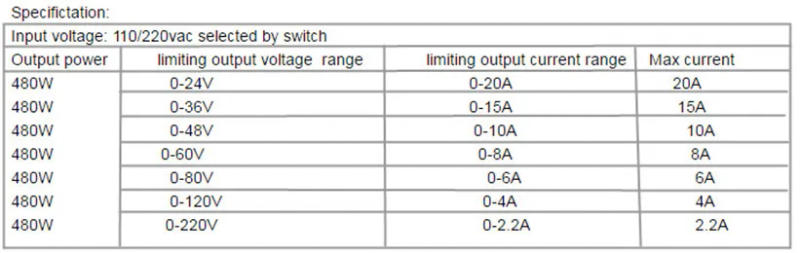

• AC DC Transformers 220V To 5V 12V 24V Switching Power Supply Adjustable 36V 48V 60V 80V 120V 160V 220V 480W Digital Display First, technical performance alerts 1 Output voltage range: 0-- 5V continually adjustable output current: 60A Output voltage range: 0-12V always adjustable output current: 40A Output voltage range: 0-24V consistently adjustable output current: 20A Output voltage range: 0-36V continuously adjustable output current: 15A Output voltage range: 0-48V continuously adjustable output current: 10A Output voltage range: 0-60V always adjustable output current: 8A Output voltage range: 0-80V continuously adjustable output current: 6A Output voltage range: 0-120V consistently adjustable output current: 4A Output voltage range: 0-220V continually adjustable output current: 2 2, Ripple voltage; not more than 100mV 3, The equal internal resistance of the regulator: no more than 0Ω 4, Voltage adjustment rate: 5, with brief circuit, overload protection, computerized restoration function Input voltage: AC110V/220V±15% Rated power: 480W Product size: 21 (length) * 11 (width) * 5CM (height), The Output recent depends on the burden ,can&;t greater than the max output current Instructions for use: Uses: Mainly used in assorted DC equipment, DC motor stepless pace regulation, LED stepless dimming, chemical electroplating pace regulation, scientific research test, scholar experiment, etc, and a variety of uses Special attention: If using inductive load equivalent to motor or fan, please eavesdrop on the motor beginning recent parameter This parameter mustn't ever be increased than the power delivery latest Otherwise, the flexibility delivery could also be broken You should choose a higher recent power supply or provide smooth start defense for the motor The circuit absorbs the inrush recent formula) voltage X recent = powerTerminal description and wiring methodL, N AC input terminal FG floor mark V+ DC output advantageous terminalV-DC output unfavourable terminal ADJ adjustable potentiometer Fine-tuning output DC voltage● Full voltage input● Miniaturization● Protection operate Short circuit / overload / over voltage● 100% full load ageing testInput Voltage & Frequency Range----------110V/220VAC/47 ～ 63HzStart surge recent ---------------20A@120VAC (cold start)Output adjustment fluctuate --------------- ±100% (rated output voltage)Overload defense -------------------105%~200% (rated load), self-recoveryOvervoltage protection -------------------115%~135% (rated output voltage)Short circuit defense ------------------- self-recoveryOutput delivery time --------------- ≤ 2S@120VAC ≤1@230VACOutput preserve time --------------- ≥ 10mS@120VAC, ≥20mS@230VACInsulation energy ------------------- Input - Output: AC1500V, 1min Input - housing: AC1500V, 1min Output - Case: DC500V, 1minWorking environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)

•
•
•
•
•
