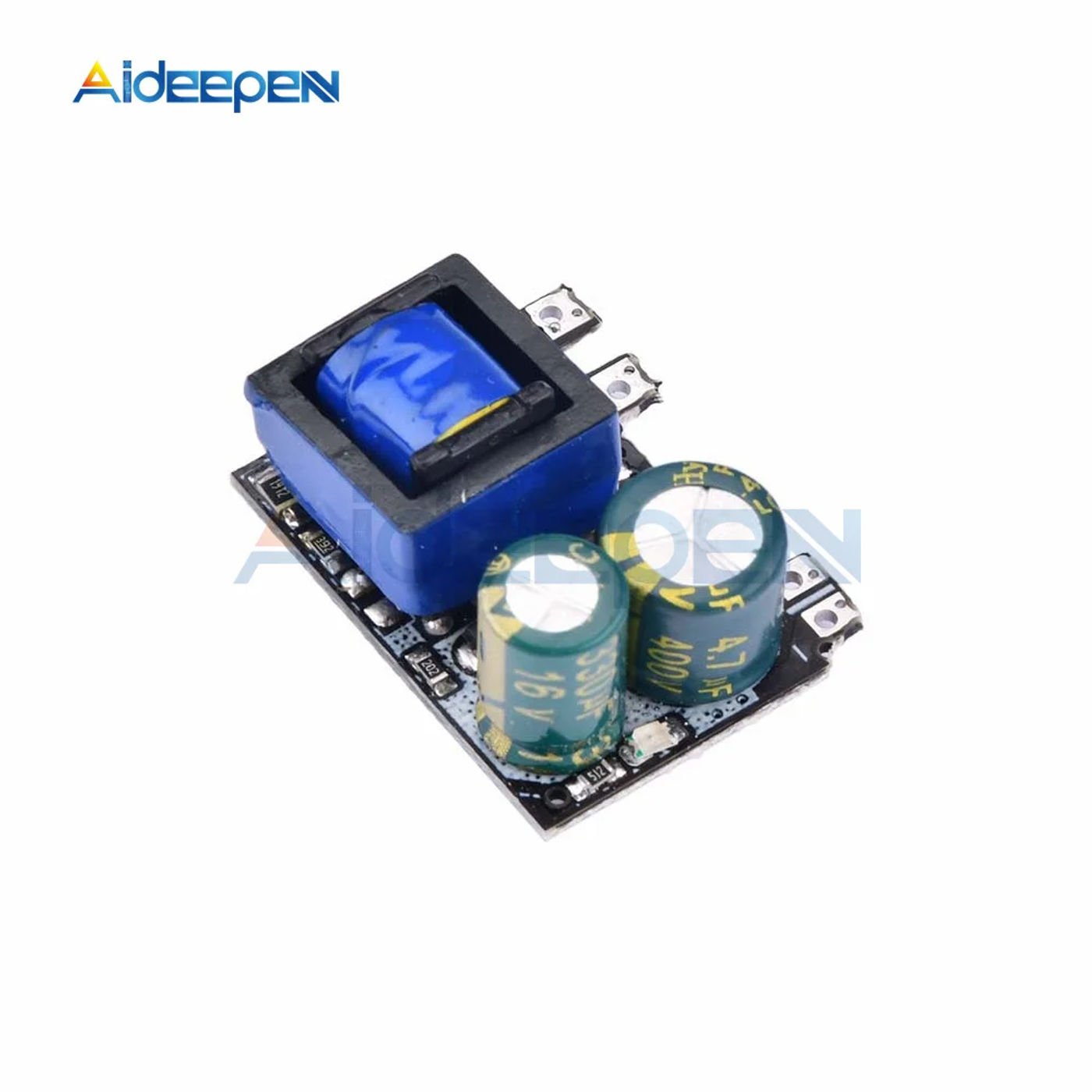

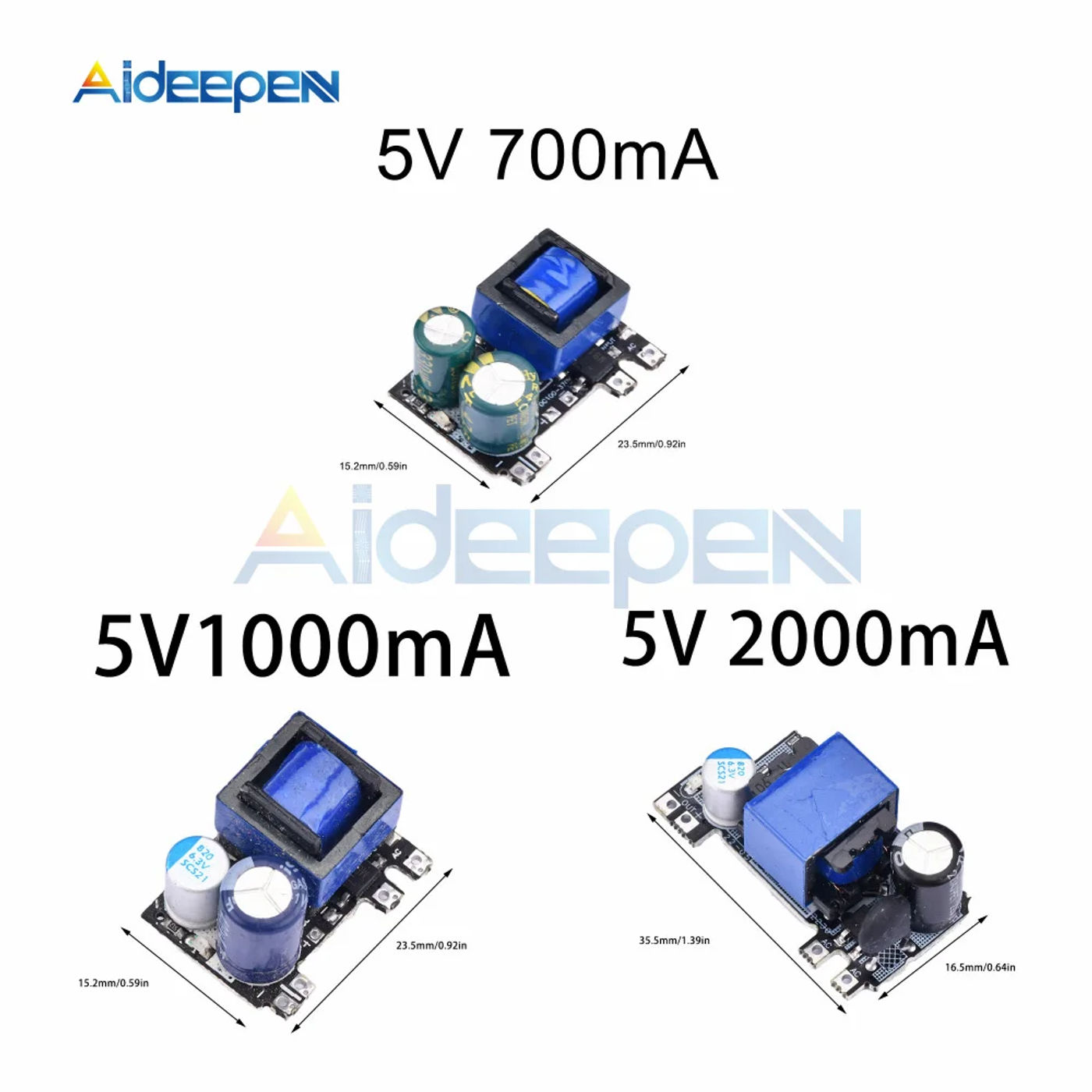

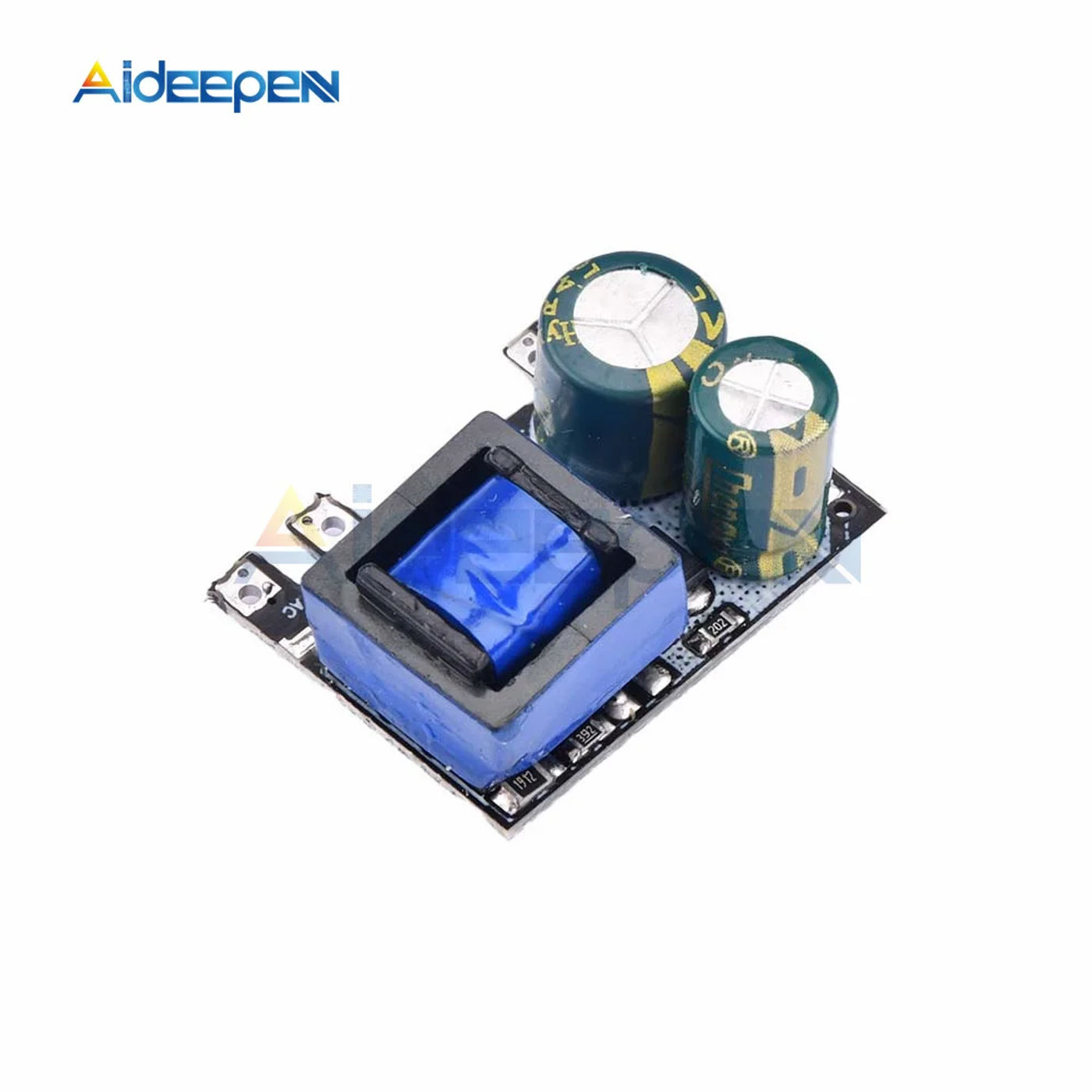

• Description: Overcurrent protectionOverload protectionThe double-sided format of substances is smaller in size Small volume installation is extra convenient,With temperature protection, over-current protection, short circuit protection, high and low voltage insulationApplicable to business instruments, wise home switch socket host, civil electronic products, toys, chargers and different products 5V 700mA 3W 1 Output indicator: green2 Total load power:<4w3 No load power: 0 Frequency differ (Hz): 47-635 Working temperature: - 25-70 ° C (the most temperature resistance of ingredients is one hundred and five ° C) (it isn't always recommended to apply above 70 ° C)6 Test resistance: 7 Ω (4) to 5v7 Output power: ≥ 73% - 80%;Surge latest (A) Cold start: 4A/230VAC8 Input voltage range: AC70-270V, DC100-380V9 Output current: 5vma-700ma, enter fixed latest mode after full charge10 Output protection: overvoltage, overcurrent, over temperature, short circuit protection, and many others Output characteristics: a number of voltage modules can be utilized in parallel to satisfy the necessities of small latest and massive current12 Output voltage: 5v+-0 no-load and whole load, - zero gentle load, rebound below heavy load, 50% 60mv load ripple13 Working temperature (℃): 13 Working humidity (RH): 20-90%, non condensing 5V 1000MA 5W Voltage range: AC70-270V DC100-380VFrequency differ (Hz): 47-63Efficiency (TYP): ≥ 73% - 80%No load standby (mW): micro power consumption 5V ≤ 35MWOperating temperature: - 25-70 ° C (the maximum temperature resistance of elements is 105 ° C) (it isn't counseled to apply above 70 ° C)Surge latest (A) Cold start: 4A/230VACOutput protection: overvoltage, overcurrent, over temperature, short circuit protection, and many others characteristics: multiple voltage modules can be utilized in parallel to meet the necessities of small current and large currentLinear adjustment rate: full load ± 1%Load adjustment rate: 10-100% Load ± 3%Vibration resistance: 10-500Hz 2G10min/cycle, 10min for x, Y and Z respectively 5V 2000MA 10W Input: AC70-277V DC100-380VFrequency vary (hz): 47-63Input recent (a): 0/115vac/0/230vacSurge latest (a): cold start: 10a/230vacEfficiency (typical value): 77% - 83%No load standby mode (mw): eighty 80 mwRated power (w): 10wLinear adjustment rate: whole load: ± 1%Load law rate: 10-100% Load: ± 3%Switching frequency (khz): zero (frequency conversion control chip)Insulation voltage (vac): output verify input: 60s 55ma=1000vInsulation resistance (m Ω): output test input: 500vdc=100Input voltage: long-term quick circuit, self recovery short circuit protection: ratedInput voltage: complete load fixed latest mode overcurrent protection: ratedStart postpone time (ms): vin: 230vac=500msShutdown standby time (ms): vin: 230vac=25ms 12V 300MA Input: AC70-270V, DC100-380vOutput voltage dc12v (± 0)Output recent 300MATotal load power:<3WNo load power: 0 (single fire swap available)Frequency range (Hz): 47-63Operating temperature: - 25-70 ° C (the maximum temperature resistance of ingredients is one hundred and five ° C) (it isn't always commended to apply above 70 ° C)Efficiency: ≥ 73% - 80%;Surge recent (A) Cold start: 4A/230VACInput voltage range: AC70-270V, DC100-380VOutput protection: overvoltage, overcurrent, over temperature, brief circuit protection, and many others characteristics: a number of voltage modules can be used in parallel to meet the necessities of small current and massive currentOutput voltage: 5v+-0 no-load and whole load, -0 light load, rebound beneath heavy load, 50% 60mv load rippleOperating temperature (℃): thirteen Operating humidity (RH): 20-90%, non condensing 12V 450MA Input: AC70-270v, DC100-380vOutput voltage: dc12v (± 0)Output current: 450MAPower: 5WFrequency vary (Hz): 47-63Operating temperature: - 25-70 ° C (the maximum temperature resistance of elements is one hundred and five ° C) (it is not commended to use above 70 ° C)Efficiency: ≥ 73% - 80%;Surge recent (A) Cold start: 4A/230VACInput voltage range: AC70-270V, DC100-380VOutput protection: overvoltage, overcurrent, over temperature, short circuit protection, and so forth characteristics: multiple voltage modules can be utilized in parallel to fulfill the necessities of small latest and large currentOutput voltage: 5v+-0 no-load and full load, -0 mild load, rebound under heavy load, 50% 60mv load rippleOperating temperature (℃): 13 Operating humidity (RH): 20-90%, non condensing 12V 1000MA Input: AC70-277NDC100-380VOutput voltage: dc12v (± 0)Output current: 1000MAPower: 10WFrequency vary (Hz): 47-63Operating temperature: - 25-70 ° C (the most temperature resistance of substances is 105 ° C) (it isn't always commended to apply above 70 ° C)Efficiency: ≥ 77% - 80%;Surge current (A) Cold start: 4A/230VACInput voltage range: AC70-270V, DC100-380VOutput protection: overvoltage, overcurrent, over temperature, short circuit protection, and many others characteristics: multiple voltage modules can be used in parallel to satisfy the requirements of small latest and big currentOutput voltage: 5v+-0 no-load and entire load, -0 gentle load, rebound beneath heavy load, 50% 60mv load rippleOperating temperature (℃): 13 Operating humidity (RH): 20-90%, non condensingSwitching frequency (KHz): 0 (frequency conversion control chip)Insulation voltage (VAC): enter to output, examine 60S ≤ 5mA, 1000vInsulation resistance (MQ): enter to output, 500VDC, 100MLeakage current (MA): 500VDC, enter to output ≤ 1m/RMSProduct lifestyles MTBF: rated enter voltage,<100 ° C>10,000H< 70°C >50000HSafety level: adaptation: CLASS BVibration resistance: 10-500Hz 2G10min/cycle, 10min for x, Y and Z respectively Package List: 1 * Power module

•
•
•
•
•
