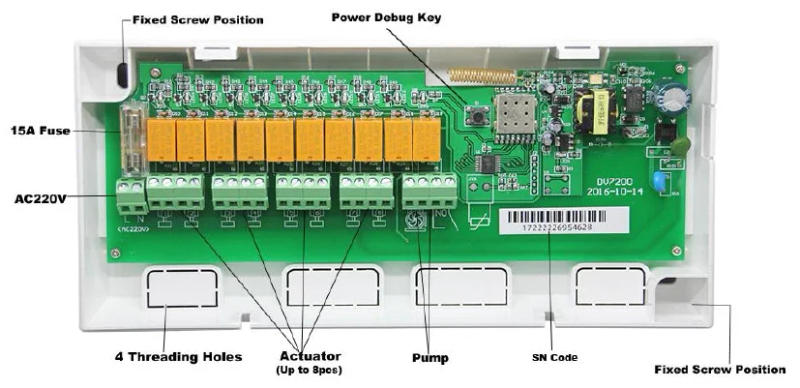

• CCT-10-X Hub Controller / BOT306 collection Wireless Thermostat / Electric Thermal Actuators ·Wireless suggests that there's a wireless connection between the thermostat and the hub WIFI suggests that the thermostat could be managed via cellphone Wireless isn't always equivalent to WIFI ！！！！ NOTE: · CCT-10-X can only paintings with BOT-X306-NR and BOT306RF-WIFI-NR those two wi-fi thermostats · The BOT-X306-NR and BOT306RF-WIFI -NR wireless thermostat in this hyperlink does not involve the receiver! （NR=No Receiver） Product Introduction CCT-10-X Wireless Hub is utilized in water underfloor heating components It can control zone valves, or boiler thermostats As central control unit, it would also control wireless thermostats and electrical thermal actuators According to user’s set temperature, hub controller can management to open or shut boiler, circulating pump and electric actuators to realize the purpose of consolation and energy intake saving Working principle: The CCT-10-X hub works together through connecting the boiler, water pump, actuator, and temperature controller When the temperature controller detects the will for heating, it will send a heating signal to CCT-10-X CCT-10-X will control the boiler and pump to turn on, and likewise management the corresponding room&;s actuator to show on, permitting hot water to circulate the room that wishes heating NOTICE : * The CCT-10-X is attached to the NC actuator by means of default If it is best to connect the NO actuator, press and hold the debug button for 7 seconds to change * Up to 8 pcs BOT-X306-NR and BOT306RF-WIFI-NR can be related to 1 CCT-10-X * CCT-10-X and BOT-X306-NR are wireless products, now not Wi-Fi products, they cannot be managed through phones! BOT306RF-WIFI-NR is WIFI product , it may be controlled by phones! How many rooms can a hub control the temperature of? * One CCT-10-X can independently control the temperature of eight rooms * Up to 8 pcs BOT-X306-NR and BOT306RF-WIFI-NR could be related to one CCT-10-X * CCT-10-X and BOT-X306-NR are wireless products, no longer Wi-Fi products, they cannot be controlled by phones! BOT306RF-WIFI-NR is WIFI product , it may be controlled by way of phones! How many actuators can every single zone control? * A CCT-10-X can management eight zones, as long because it ensures that there isn't any overload, each zone could be connected to eight actuators Wiring diagram: 1 Wireless Hub Controller 2 Wireless Thermostat three Gas boiler 4 Circulating pump five Electric actuator Installation If you would like debug or examine whether or not the hub controller is operating properly, before power on, you could possibly press and keep the debug key, then make controller powered At this time, time delay function fails, so you can soon verify and debug your desired function(debugging function will fail with out operation for 20 minutes) When controller is installed, you may pry 4 threading holes, and and struggle through strength management wires from backside Controller would be installed by way of 2 self tapping screws constant  Each output has a corresponding indicator light, clear and easy to find fault CCT-10-X Product Advantage 1 Easy to connect to power: user solely must reserve leading supply within the position of manifold before installation, and directly join one three-wires cable to thermostats So consumer do not have reputable wiring workers; 2 Easy to connect wires: consumer solely needs to join wires according to twine colors; three Easy upkeep after installation: all wires are very clear and neat; four To protect boiler or pump: as a result of hub controller has time delay function, it opens boiler and pump solely when water valve is absolutely opened, and closes boiler when temperature reaches standards Time postpone to open boiler and pump when heating can realize the point of energy-saving; 5 To increase boiler and pump life: hub controller only beginning boiler and pump in right temperature, on this way, it's going to lower boiler and pump operating time, to make bigger their operating lifestyles The Difference BOT306RF-WIFI-NR: With wi-fi and wifi operate Powered by means of USB type-C BOT-X306-NR: With wireless function, no wifi operate Powered by AA battery Attention 1 The controller of BOT306RF-WIFI-NR need to rely on the base and constantly related to USB form C for strength supply, can &;t put into battery!!! 2 The controller of BOT306RF-WIFI-NR can only stand at the base, can&;t be held on the wall three BOT306RF-WIFI-NR would not include a charging head, it should use your individual cellphone charging head for strength supply Function (BOT306 Wireless Thermostat) - Wireless control, easy to place, 100 meters lengthy management distance in open environment, 300 meters indoor - Big digital display, select themperature setting freely - High reliablity, energy-saving and strong anti-jamming - 5+2/6+1/7 days week program operate for chice - Manual mode and auto mode selectable - With baby lock function, prevent teens from accidentally touching - Anti-freeze function, forestall loss brought on by low temperature - Power reminiscence function, save the original settings after power off BOT-X306-NR Package List 1 * Thermostat 1 * Wall Hunging Cover 1 * User Manual 2 * Screw (No Receiver !!!!) BOT306RF-WIFI-NR Package List 1 * Thermostat 1 * Bracket 1 * USB line 1 * User Manual 2 * Screw (No Receiver!!!) 230V Actuators Technical Description CCT-10-X Wireless hub controller: Power Supply: 170-240VAC 50\60HZ Current Load: 3A Size: 240mm X 110mm X 42mm Working Temp: -20 - 60 celsius Storage Temp: -20 - 70 celsius Color: White BOT-X306 wireless thermostat: Working Voltage:1 X 2pcs AA battery Current Load:3A Temperature Control Accuracy:±0ºC Setting Temperature Range: 5ºC-35ºC Limiting Temperature Range:5ºC-99ºC Consumption:<0 Temperature Sensor:NTC BOT306RF-WIFI-NR Working Voltage: USB Type C Current Load:3A Temperature Control Accuracy:±0ºC Setting Temperature Range: 5ºC-35ºC Limiting Temperature Range:5ºC-99ºC Consumption:<0 Temperature Sensor:NTC RZ-AN230 Actuator Model: RZ-AN 230-NO/NC Working Voltage: 230VAC±10% Initial Current: About 50MA Power Consumption: 2W Protection Grade: IP41 Working Journey: 3~3 Working Temperature: -20~50℃ Storage Temperature： -25~60 ℃ Security Class： II(Double Insulation) Cable Length：65cm Running Time：180seconds (open-closed) CE Standard：EN60730 Size ： M30*1 Buyer Show

•
•
•
•
•
