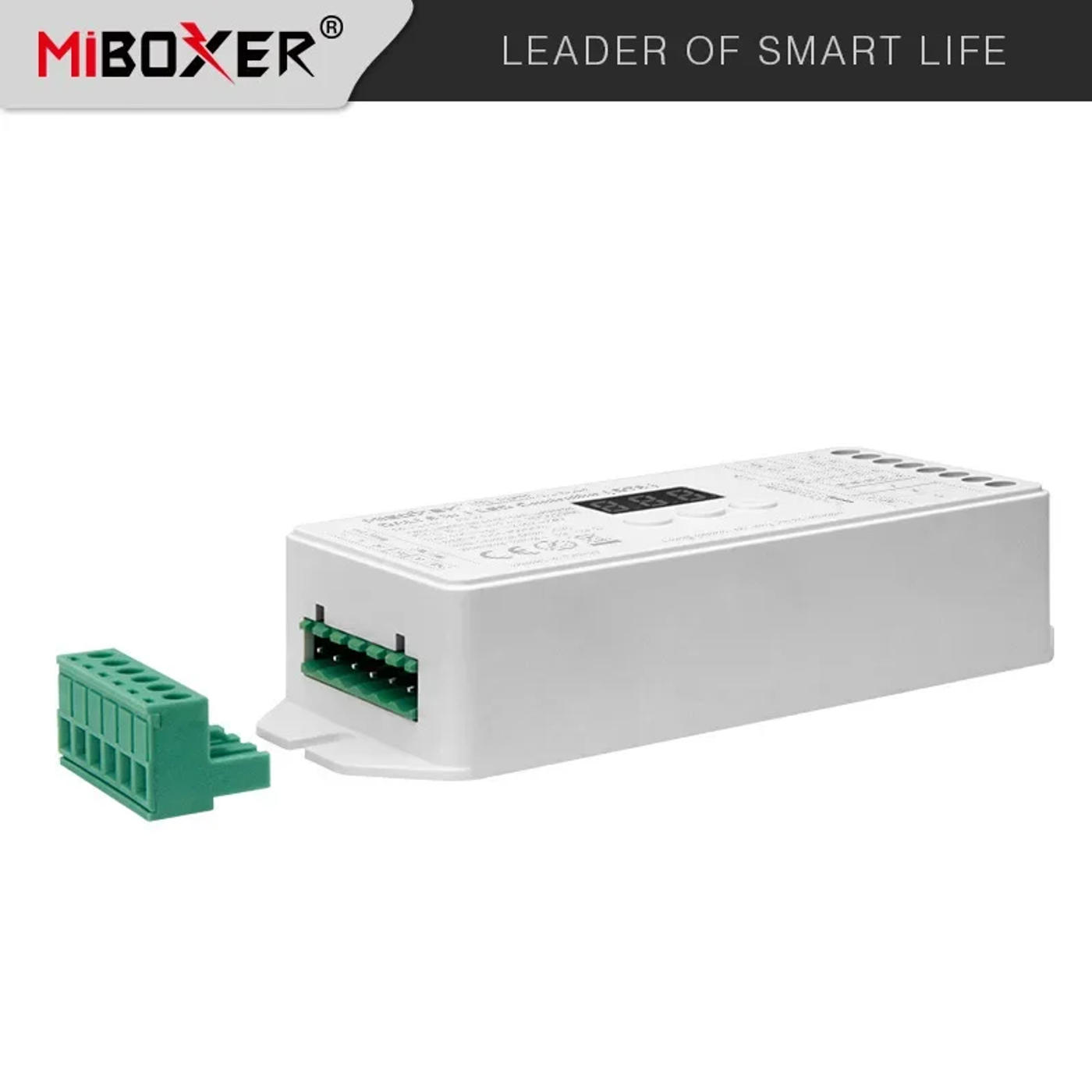

• Product Parameters Product Name: DALI five in 1 LED Controller ( DT8 ) Model No.: DL-X Input Signal: DALI Signal or Push Dimming DALI Bus Standard: IEC62386-102,207,209 Input Voltage: DC12~24V Output: 6A/Channel Total Output Max: 20A Working Temperature: -10~40°C Note: the Push button is rarely incorporated in this kit and wishes to be bought separately! 》》》》》》》》》》》》》》》》》》》》》》 DL-POW1: Product Name: DALI Bus Power Supply (DIN Rail) Model No.: DL-POW1 Input Voltage: AC100~240V 50/60Hz Input Current: 115Vac/≤0, 230Vac/≤0 Leakage Current: <0/230Vac Inrush Current: Cold transport 10A at 230Vac Setup Time: 115Vac<2500ms,230Vac<1500ms (at full load) Output Voltage: DC16V Output Current: 250mA Max Max. Rated Power: 4W Ripple Noise: 0 (at complete load) Working Temp.: -20~60°C Working Humidity: 20 ~ 95%RH, non-condensing Safety EMC Isolation Resistance: I/P-O/P: 100MΩ/500VDC/25℃/70%RH DP2S: Product Name: DALI Color Temperature Touch Panel ( DT8 ) Model No.: DP2S Power Supply: DALI Power DALI Bus Standard: IEC62386-102, 207, 209 Output Signal: DALI Signal Controlling Type: CCT(DT8 type: Tc) Standby Current: <4mA@16V Working Temp.: -10~40°C 》》》》》》》》》》》》》》》》》》》》》》 DP3S: Product Name: DALI three in 1 Touch Panel ( DT8 ) Model No.: DP3S Power Supply: DALI Power DALI Bus Standard: IEC62386-102, 207, 209 Output Signal: DALI Signal Controlling Type: RGB(DT8 type: xy coordinates)RGBW(DT8 type: RGBWAF) RGB+CCT(DT8 type: RGBWAF) Standby Current: <4mA@16V Working Temp.: -10~40°C

•
•
•
•
•
