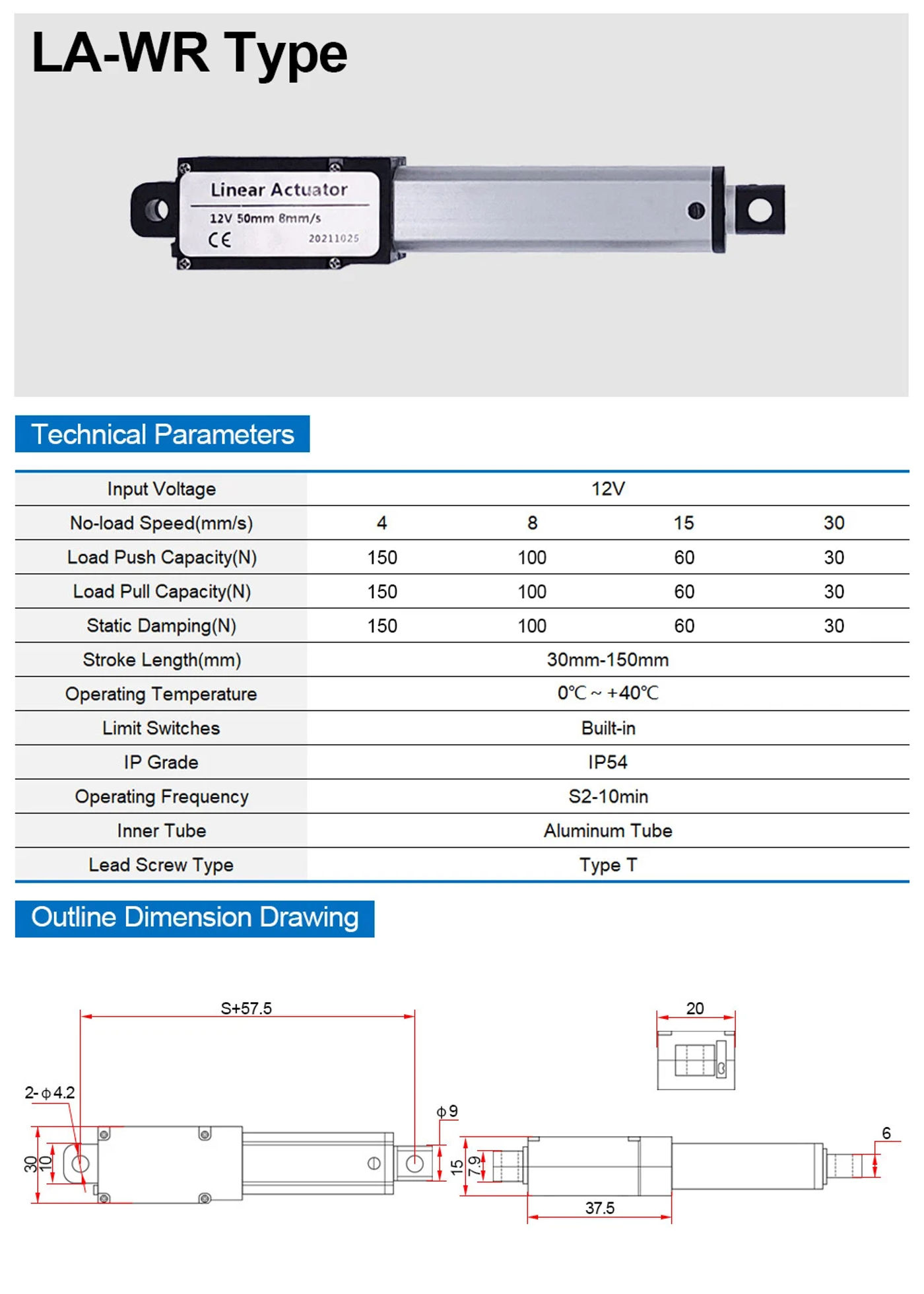

• Lmin=54+Stroke For example: If Sroke is 50mm,the ordinary Lmin is 54+50=104 Lmin means the length when linear actuator 100 percent fully closed, meanwhile,it will contact the tail limited swap and stop mechanically Stroke potential the movement size of linear actuator Lmax=Lmin+Stroke=54+2×Stroke For example: If Sroke is 50mm,the common Lmin is 54+2×50=154 Lmax capability the length when linear actuator 100% solely open, meanwhile,it will touch the top limited swap and prevent mechanically Stroke 30MM Lmin=54+30=84,Lmax=84+30=114 Stroke 50MM Lmin=54+50=104,Lmax=104+50=154 Linear actuator spec: Input:12V DC Load:Max 188N/18/41 Limited switch:With Duty cycle:10% Poduct Material:Metal and plastic Worm Gear:Metal gear Color:Black Operation temperature:-26 ~ +65 degree

•
•
•
•
•
