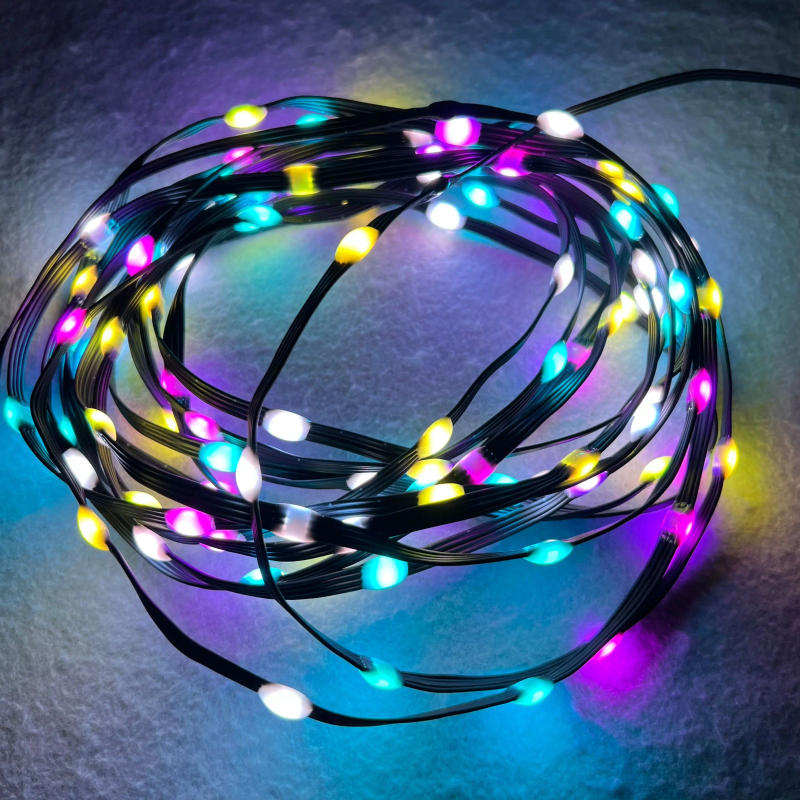

• DC12V WS2815 Seed LED Pixel String Light RGB IC Addressable IP67 4Pin Black Wire 2cm/2/5cm/10cm Pitch 100ct/200ct/300ct Long Note: each set inlcude a four core Female to 3 core Male adaptor 100ct with 5cm pitch=5m long; 100ct with 10cm pitch=10m long200ct with 5cm pitch =10m long; 200ct with 10cm pitch =20m long300ct with 5cm pitch =15m long; 300ct with 10cm pitch =30m lengthy Working Input Voltage: DC12VCurrent/Pixel: 8mA(12V)Output Power: 0/pcs led Color: WS2818/WS2815 RGB IC,Dual Signal addressable RGB complete colorColor Order: 12V: R-G-BLED Space: 2/5cm/10cm spacing LED quantity: one LED as one pixel(addressable);total 50ct/100ct/200ct/stringPower injection: propose to add strength every single three hundred pixelsWire color: 24AWG all Black 4PIN twine (VCC+,DATA,Backup DATA,GND) waterproof pigtails type:4 core xConnect/13(ray wu) sequence Black colour water resistant male and feminine connectors at ends 4Pin JST SM connectors: input end: 0 long 4Pin female connector with black flat wireoutput end: 0 lengthy 4Pin male connector with black flat wire traditional four core water resistant Pigtails pinout diagram for our pixel lights:for pigtails: Brown:- 5/12v + Yellow: data Green: back up information Blue: GNDInput end: male connector(screw finish with naked pin)Output end: female connector(with hole)Warm tips: please joint the 2 records wires together to controller&;s DATA port, don't join the backup wire to GND Recommended Controllers:APP bluetooth WIFI/SD card/Artent SPI and so forth Recommended controllers:

•
•
•
•
•
